Left Hand

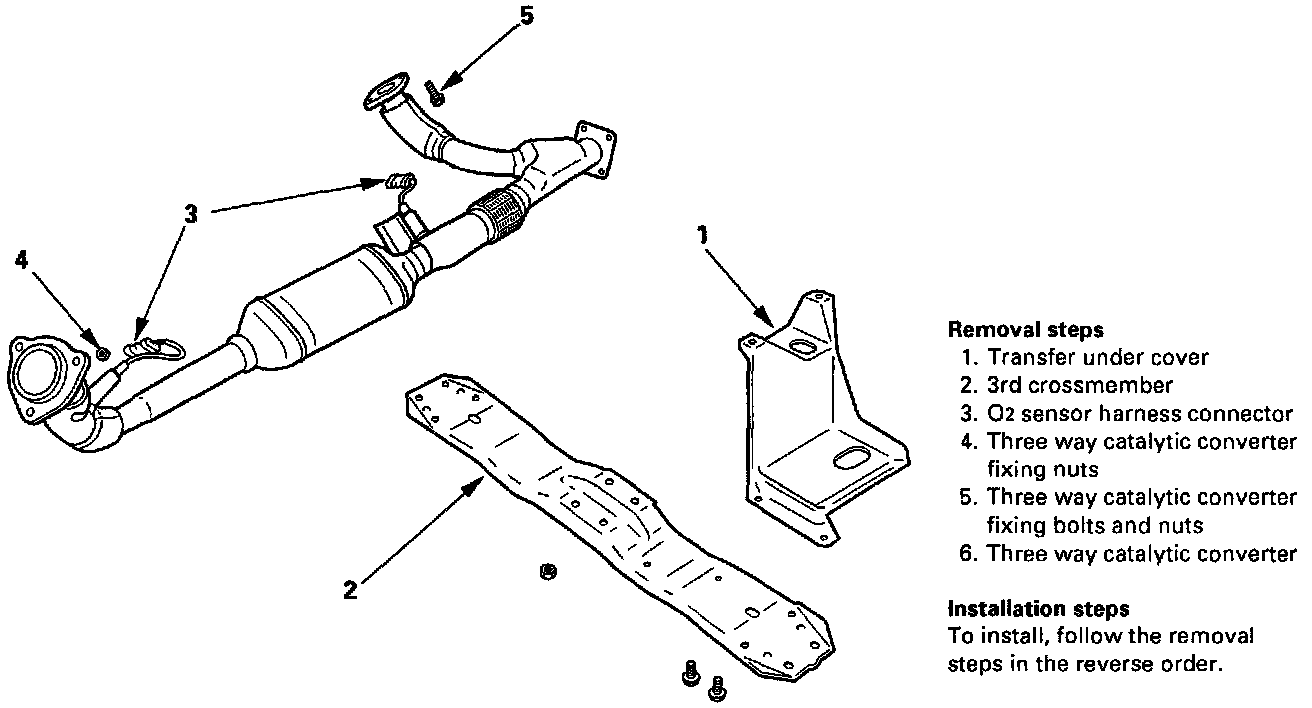

THREE WAY CATALYTIC CONVERTER LH (AUTOMATIC TRANSMISSION)

REMOVAL

Preparation:
^ Battery negative cable.
^ Raise the vehicle and support with suitable safety stands.
1. Transfer under cover
^ Disconnect two harness bracket.
2. 3rd crossmember
3. O2 sensor harness connector
^ Disconnect front O2 sensor harness connector and rear O2 sensor harness connector.
4. Three way catalytic converter fixing nuts
^ Remove three way catalytic converter at exhaust manifold.
5. Three way catalytic converter fixing bolts and nuts
^ Remove three way catalytic converter at RH pipe side and exhaust silencer.
6. Three way catalytic converter

INSTALLATION
To install follow the removal steps in the reverse order, noting the following points.

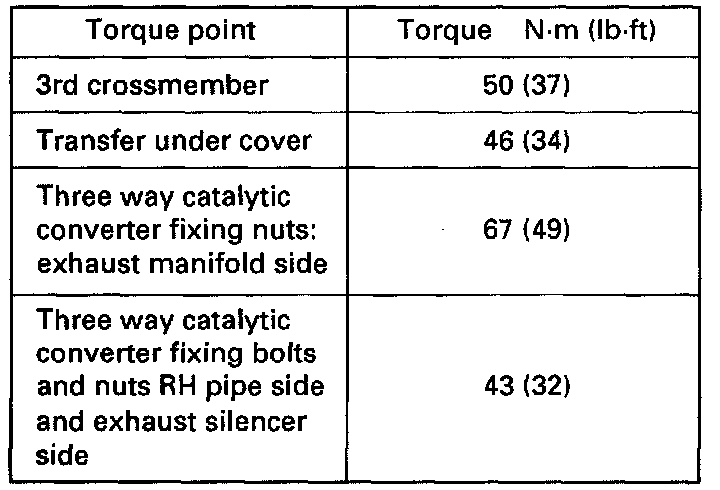

Tighten bolts and nuts to the specified torque.
