Right Hand









THREE WAY CATALYTIC CONVERTER RH (AUTOMATIC TRANSMISSION)

REMOVAL

Preparation:
^ Battery negative cable.
^ Raise the vehicle and support with suitable safety stands.

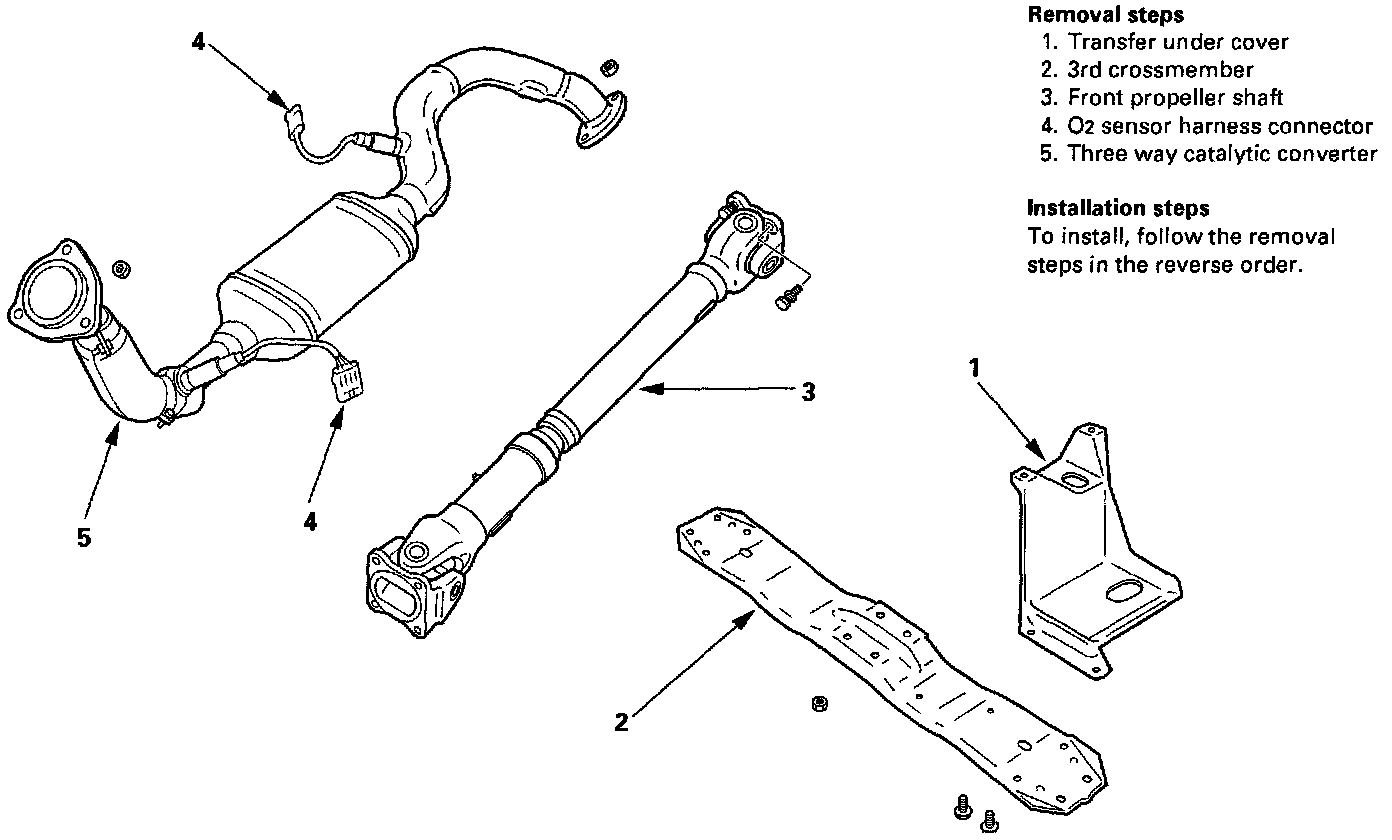

1. Transfer under cover
2. 3rd crossmember
3. Front propeller shaft
4. O2 sensor harness connector
^ Disconnect front O2 sensor harness connector and rear O2 sensor harness connector.
5. Three way catalytic converter
Remove three fixing nuts at exhaust manifold.

INSTALLATION
To install follow the removal steps in the reverse order, noting the following points.
Tighten bolts and nuts to the specified torque.
