Torque and Sequence

Nm (ft lb)

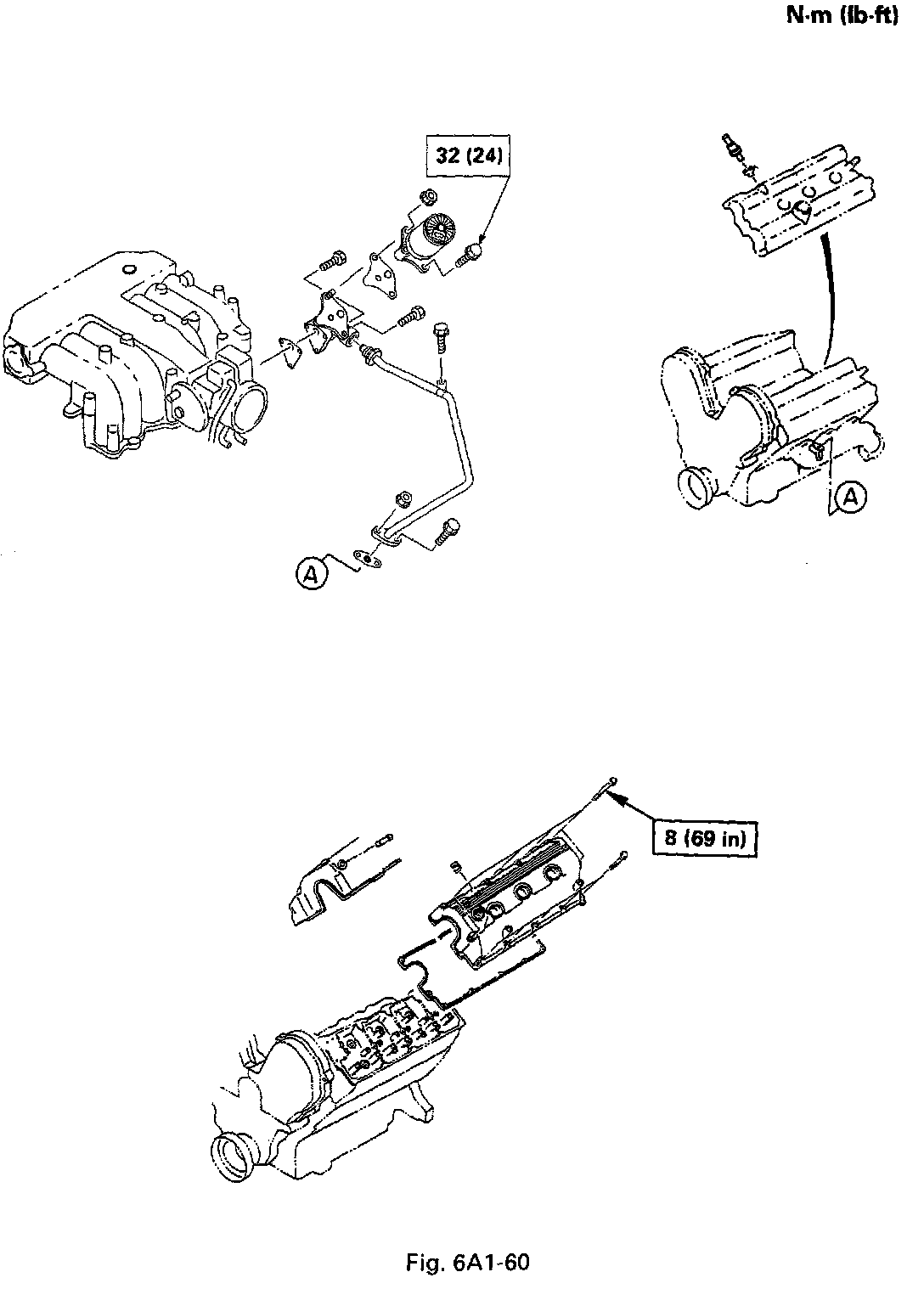

Cylinder Heads And Manifolds:






Head Bolt Torque/Sequence:






Engine Block:

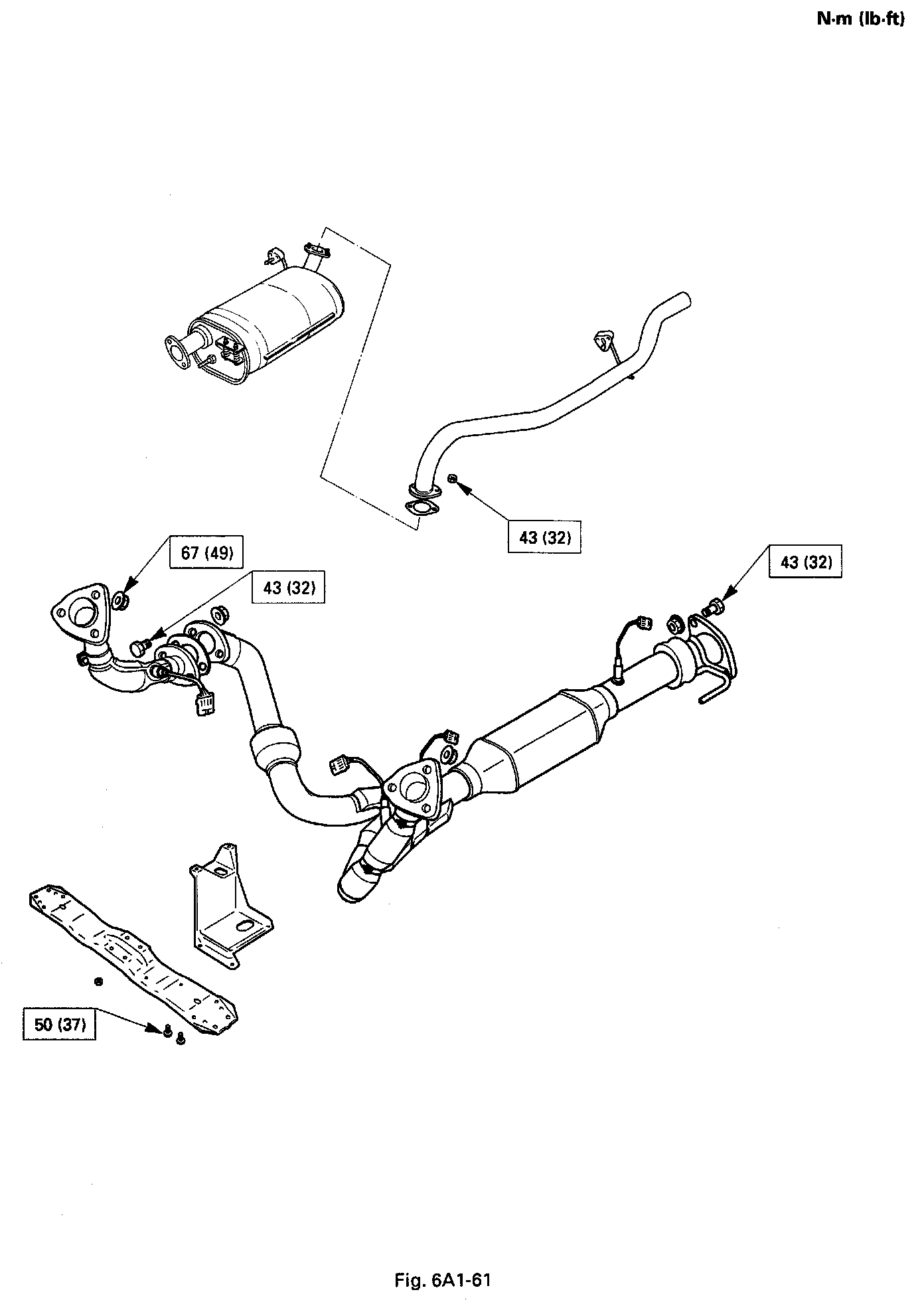

Exhaust:

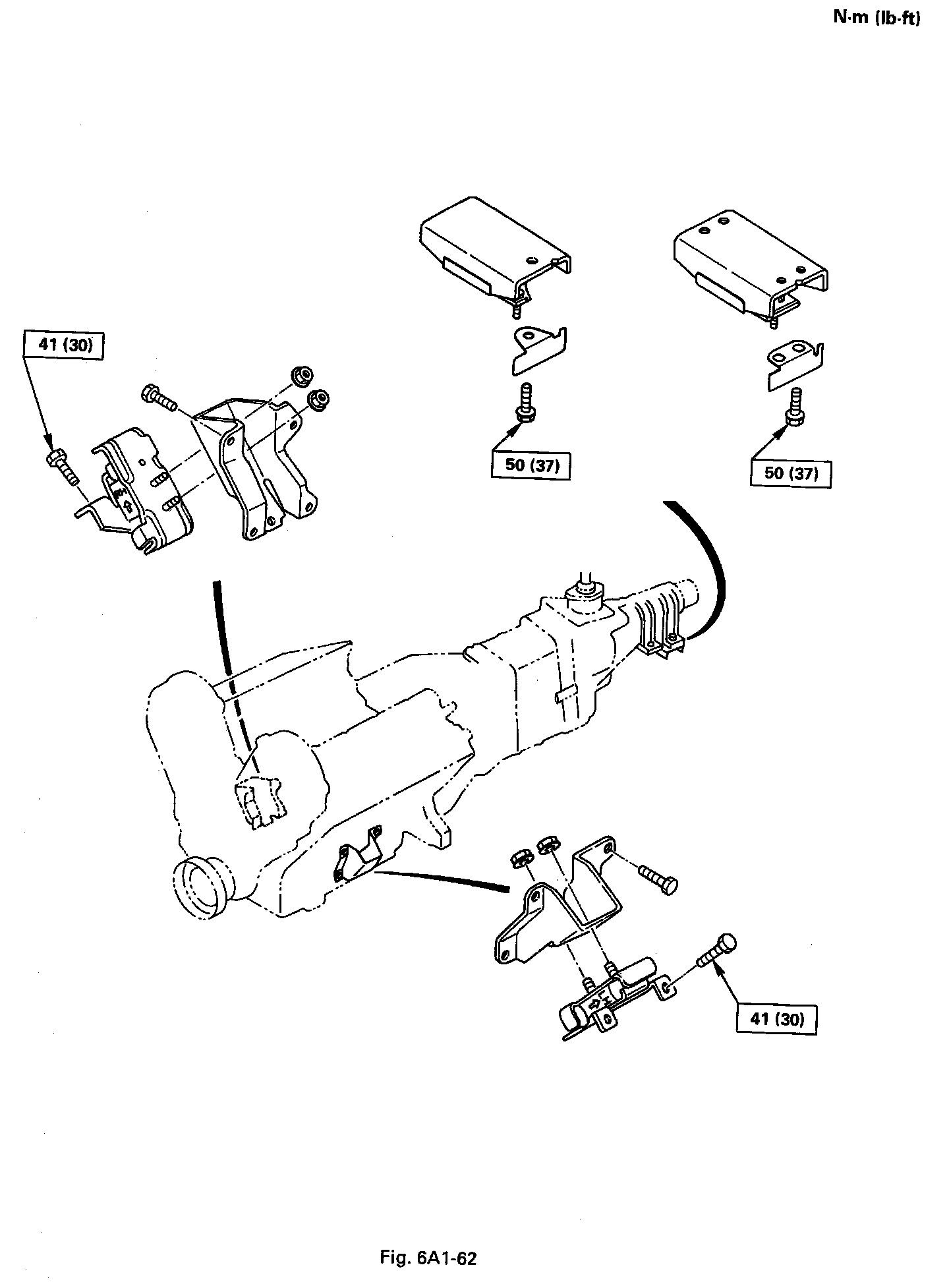

Mounts:
