Charging System: Testing and Inspection

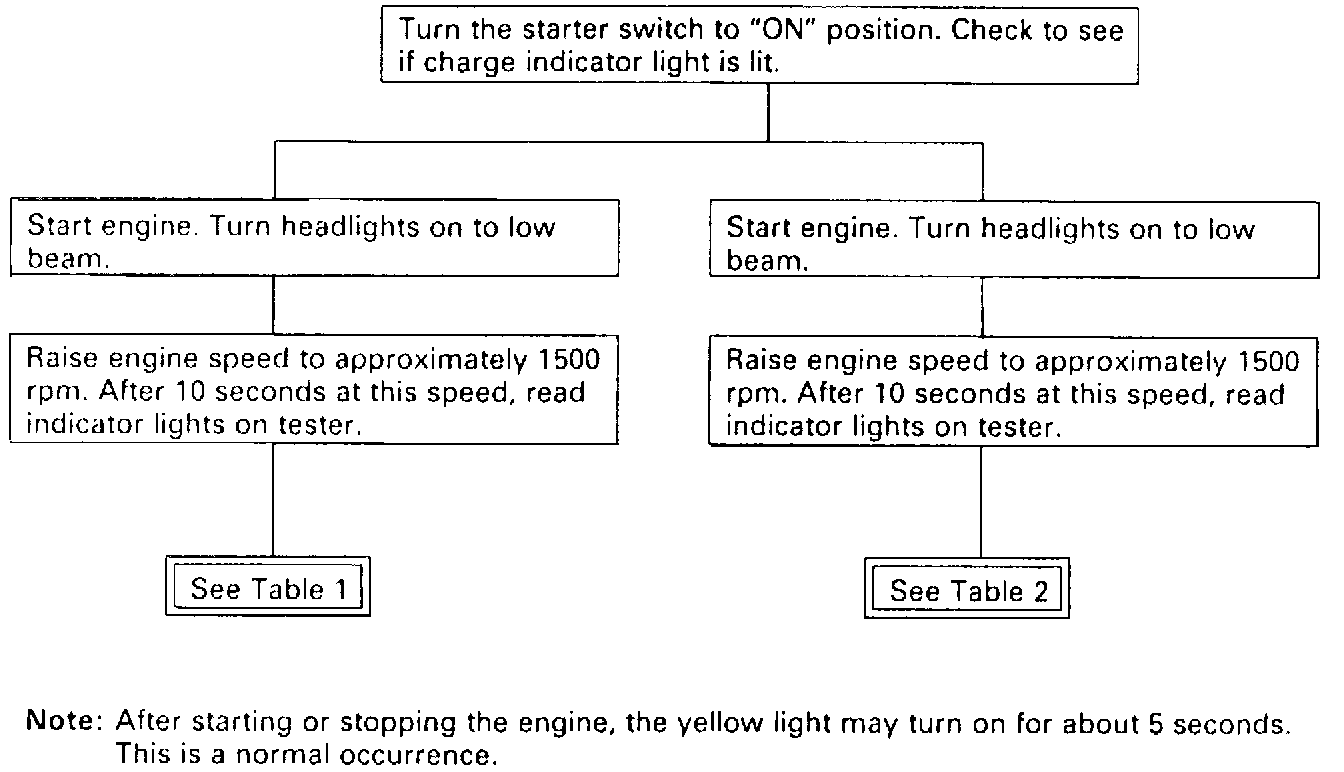

Fig. 1 Charging System Troubleshooting Chart:

To troubleshoot the charging system use Isuzu Charging System Tester and refer to Fig. 1.

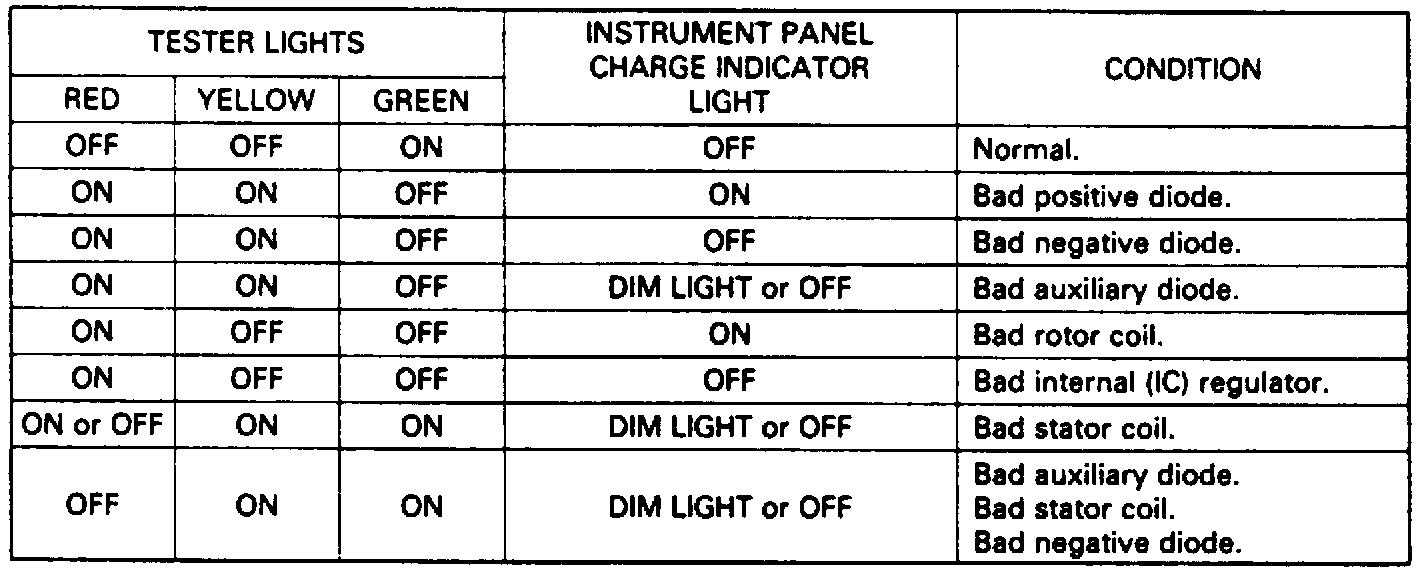

TABLE 1

Fig. 2. Table 1:

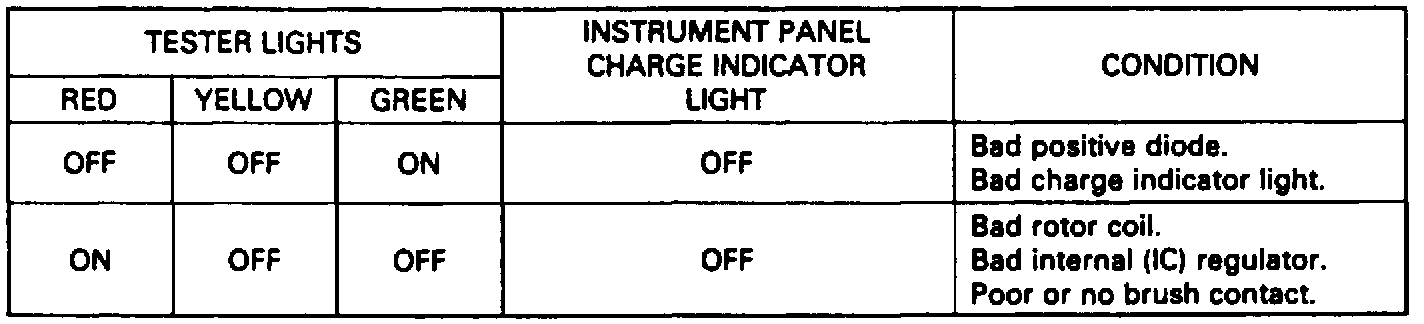

TABLE 2

Charging System: Testing and Inspection

Fig. 1 Charging System Troubleshooting Chart:

Fig. 2. Table 1:

Fig. 3 Table 2:
