Climate Control Unit

Climate Control Unit Replacement:

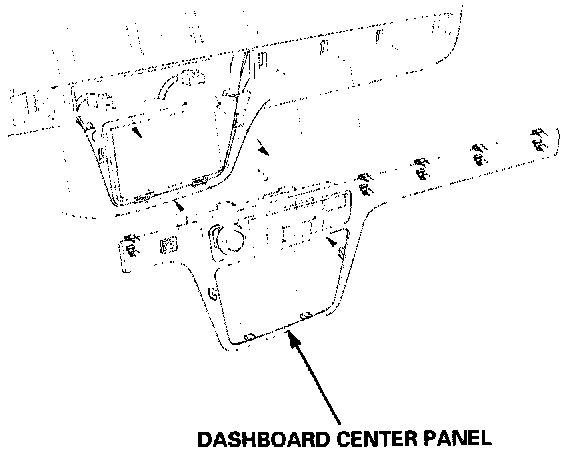

1. Remove the dashboard center panel together with the climate control unit, then disconnect the connectors.

CAUTION:
^ Be careful not to damage the dashboard center panel and the dashboard.
^ Do not pull between the clips: Otherwise, the panel may break.

Climate Control Unit Replacement:

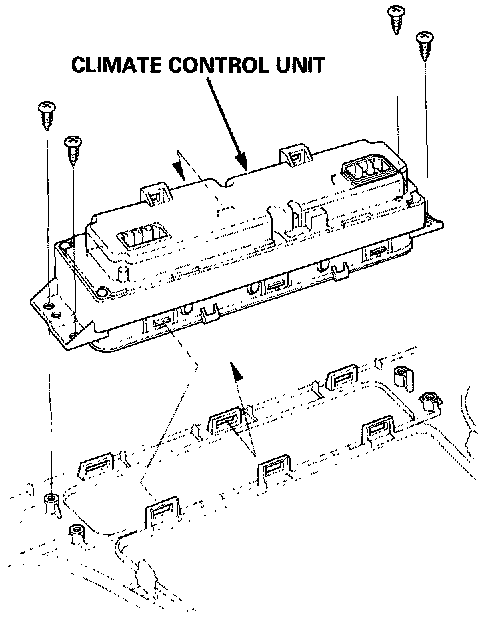

2. Remove the four self-tapping screws and the climate control unit.
3. Install in the reverse order of removal.
