Acura
>>
1998
>>
TL V6-3206cc 3.2L SOHC MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

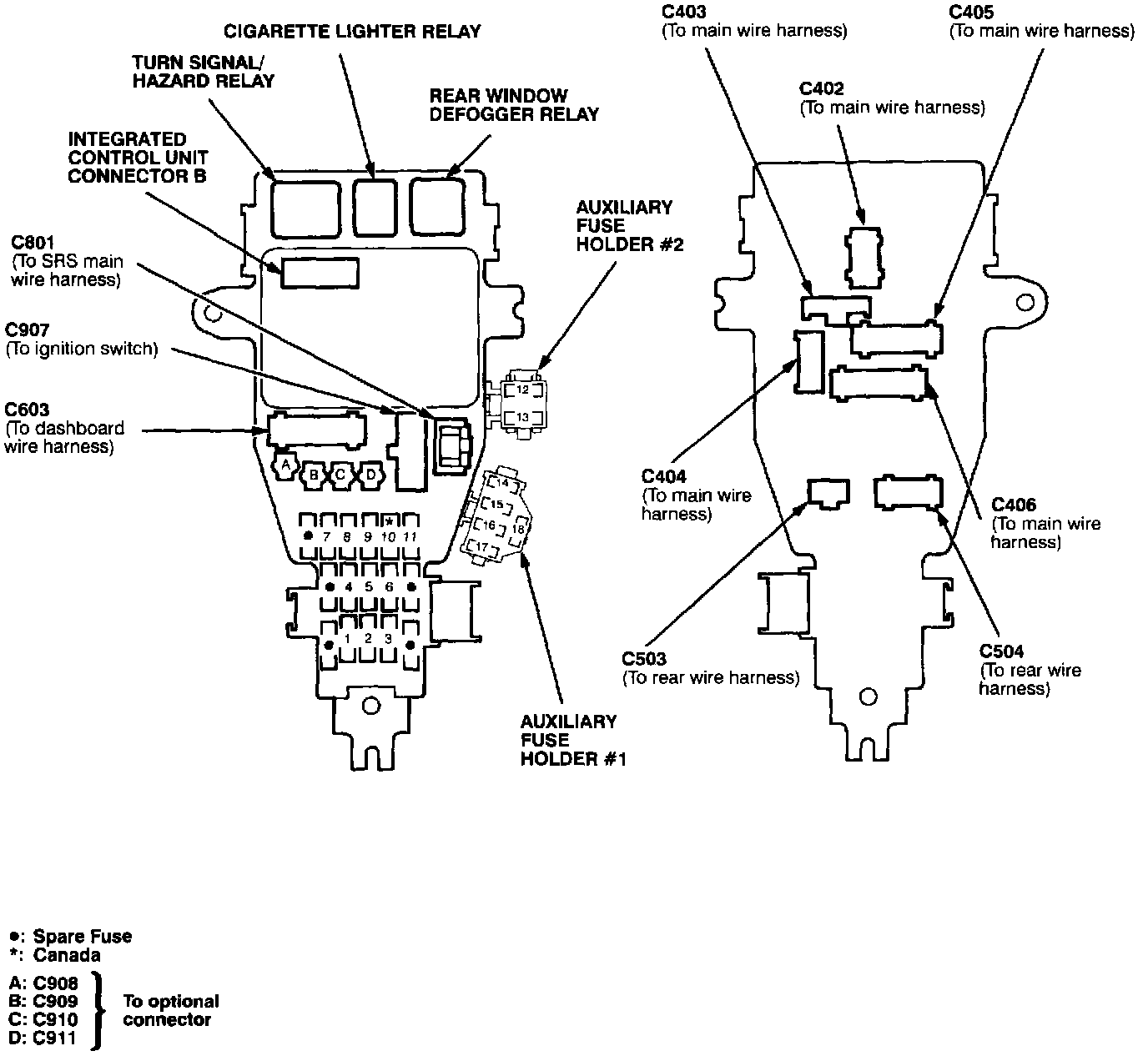

Under-Dash Fuse/Relay Box
>>
Alternate View
Alternate View

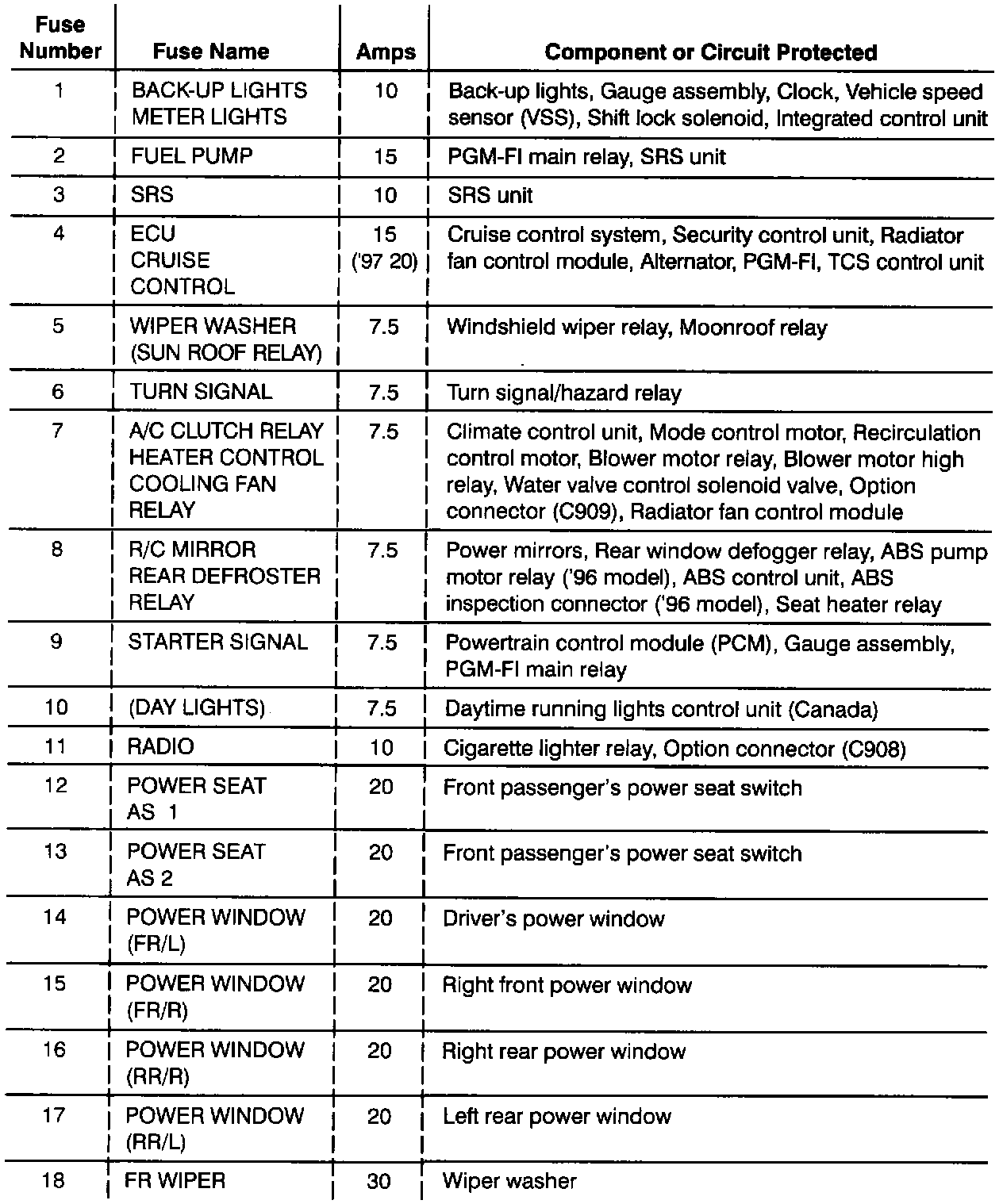

Fuse/Relay Information (Under-hood Fuse/Relay Box And Auxiliary Fuse Holder) (Part 1 Of 2):
Fuse/Relay Information (Under-hood Fuse/Relay Box And Auxiliary Fuse Holder) (Part 2 Of 2):
