Cruise Control Main Switch Inspection

Main Switch Test/Replacement

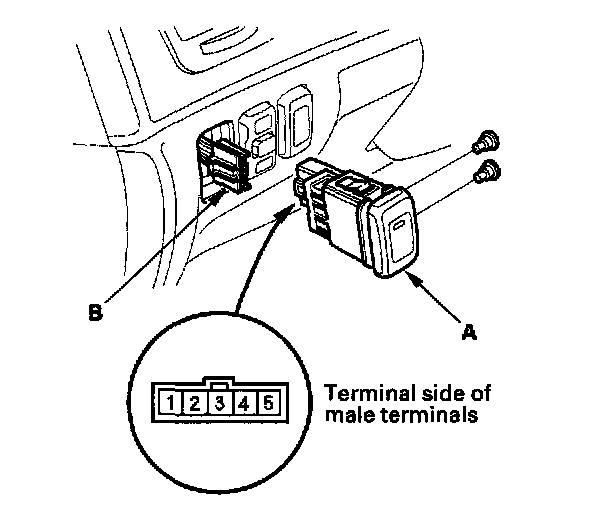

1. Carefully pry the switch (A) out of the instrument panel.
2. Disconnect the 5P connector (B) from the switch.

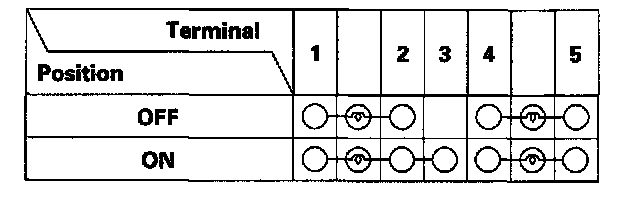

3. Check for continuity between the terminals in each switch position according to the table. If there is no continuity.
- If the continuity is not as specified, replace the switch.
- If OK, install the switch.
