Courtesy Lamp
>>
System Diagram
System Diagram

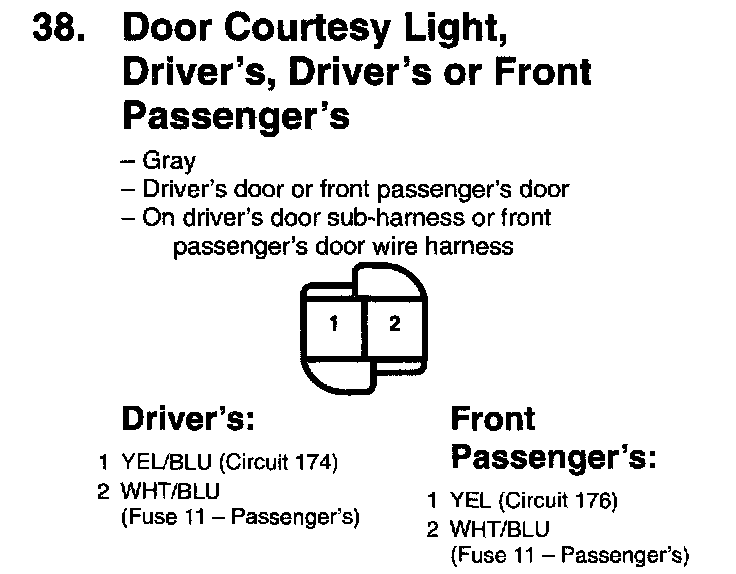

38. Door Courtesy Light, Driver's, Driver's Or Front Passenger's:

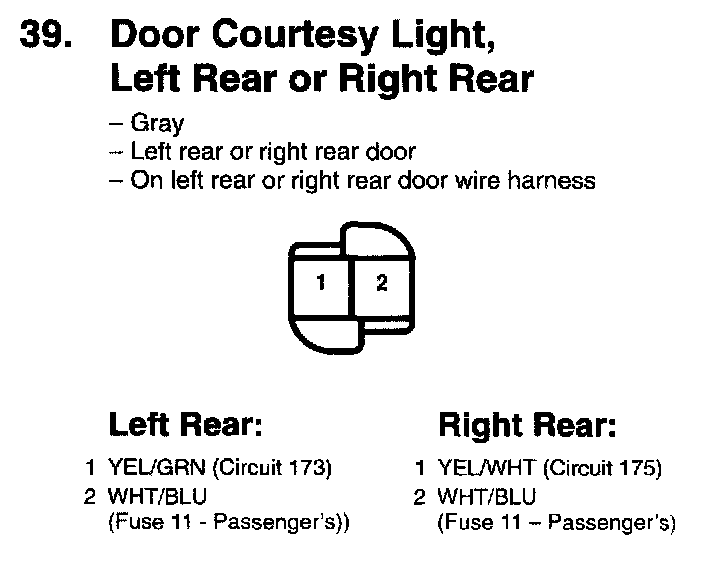

39. Door Courtesy Light, Left Rear Or Right Rear:
