Home
>>
Acura
>>
2002
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control Servo
Cruise Control Servo

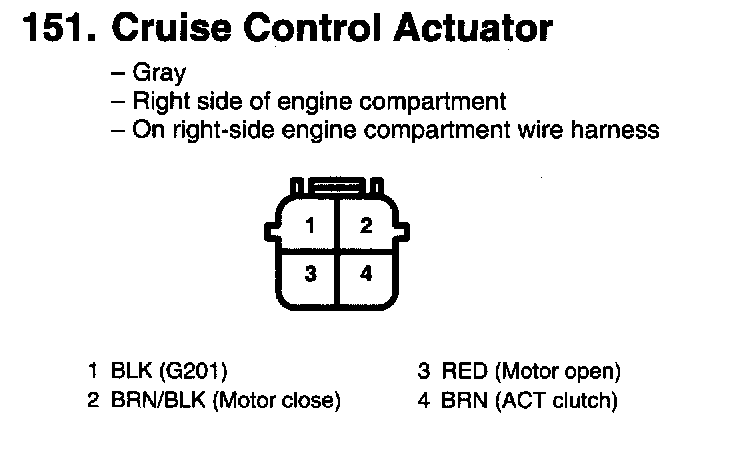

151. Cruise Control Actuator:
