Door Switch

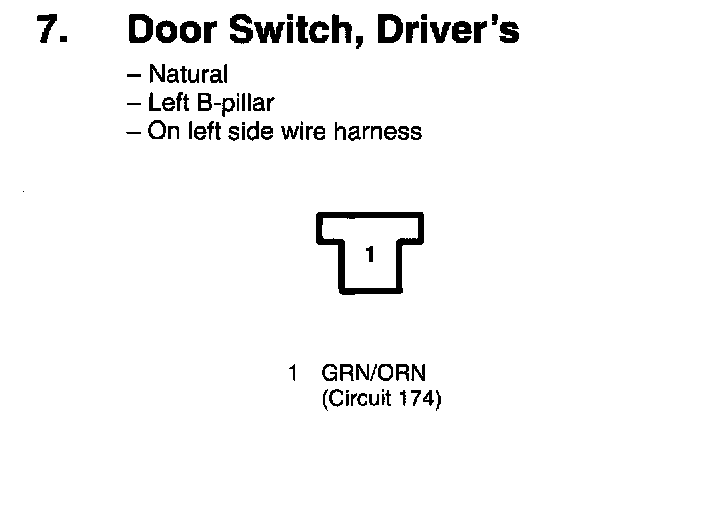

7. Door Switch, Driver's:

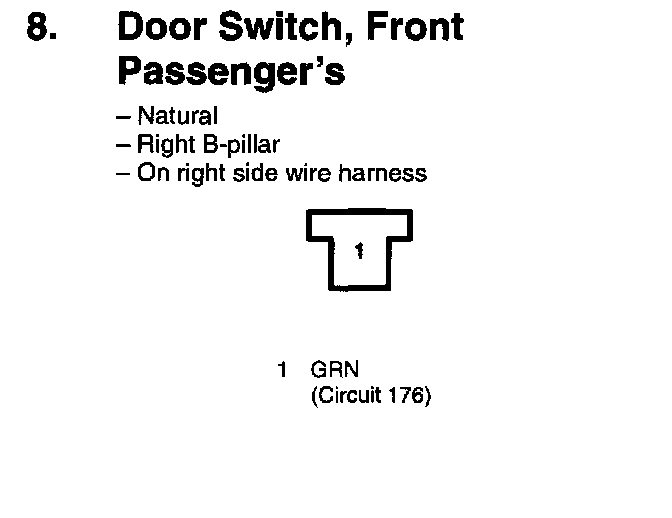

8. Door Switch, Front Passenger's:

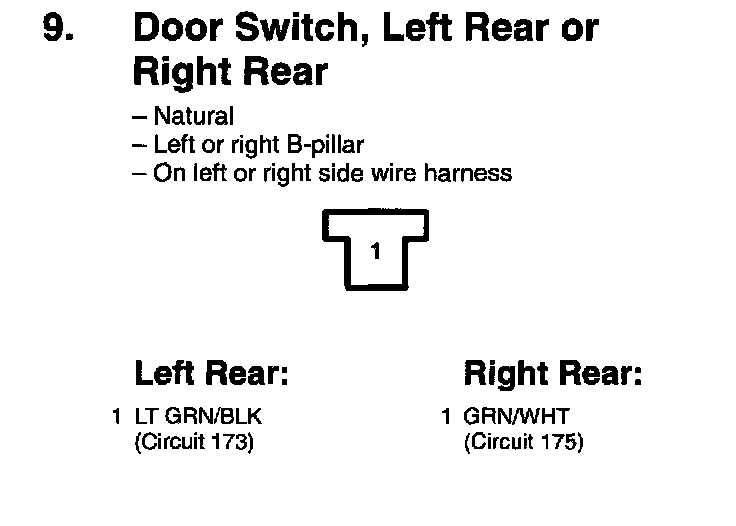

9. Door Switch, Left Rear Or Right Rear:
