Driver/Vehicle Information Display
Driver/Vehicle Information Display

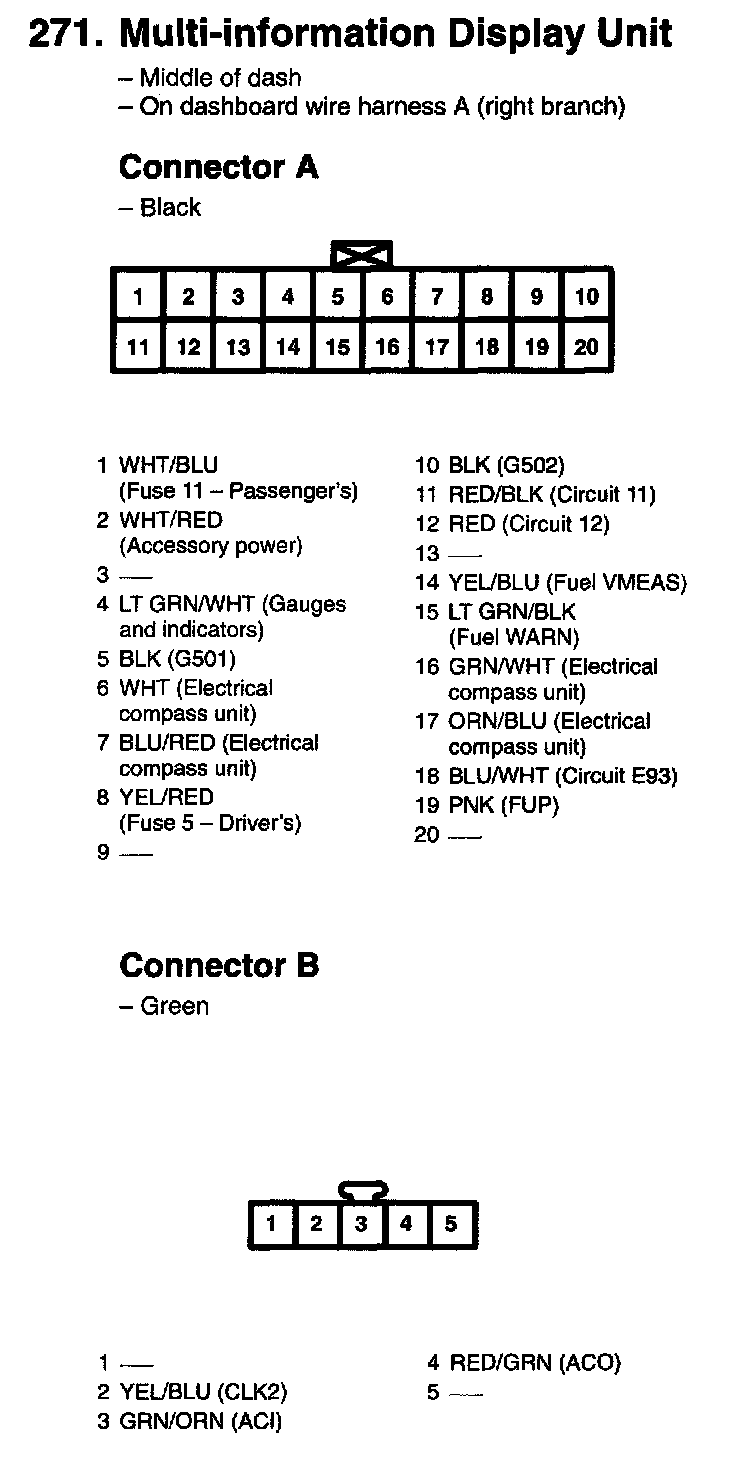

271. Multi-information Display Unit:
