Home >> Acura >> 2002 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Window Motor

Front Door Window Motor

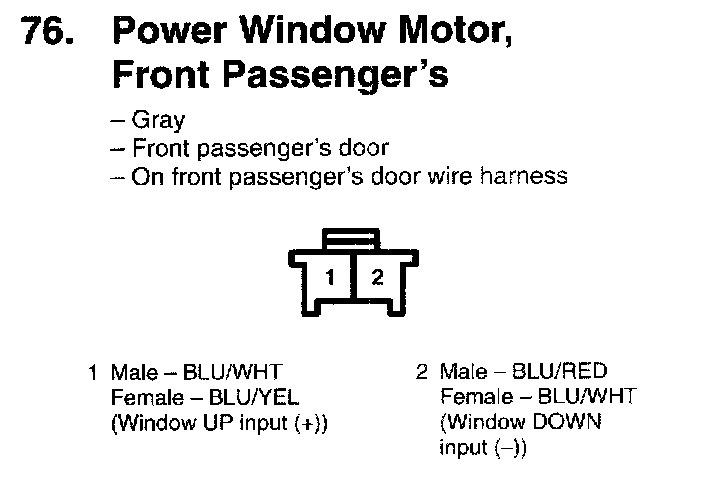

76. Power Window Motor, Front Passenger's:

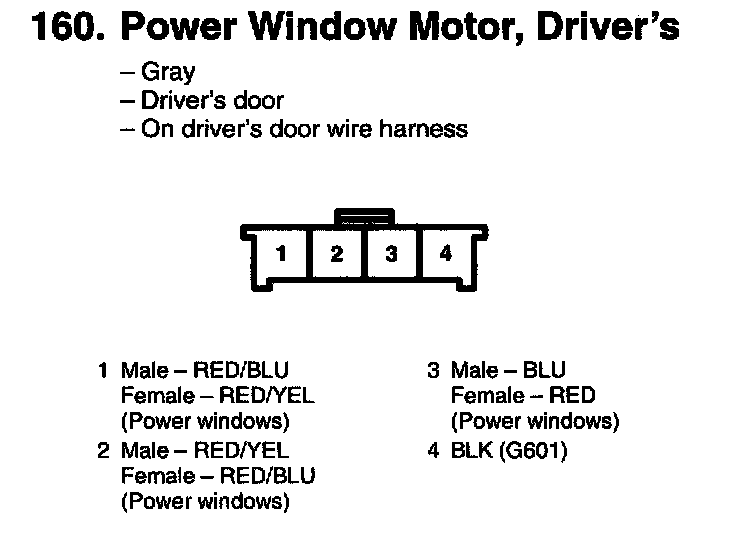

160. Power Window Motor, Driver's:
