Under-Dash Fuse/Relay Box, Driver's

282. Under-dash Fuse/Relay Box, Driver's (Connectors A - E):

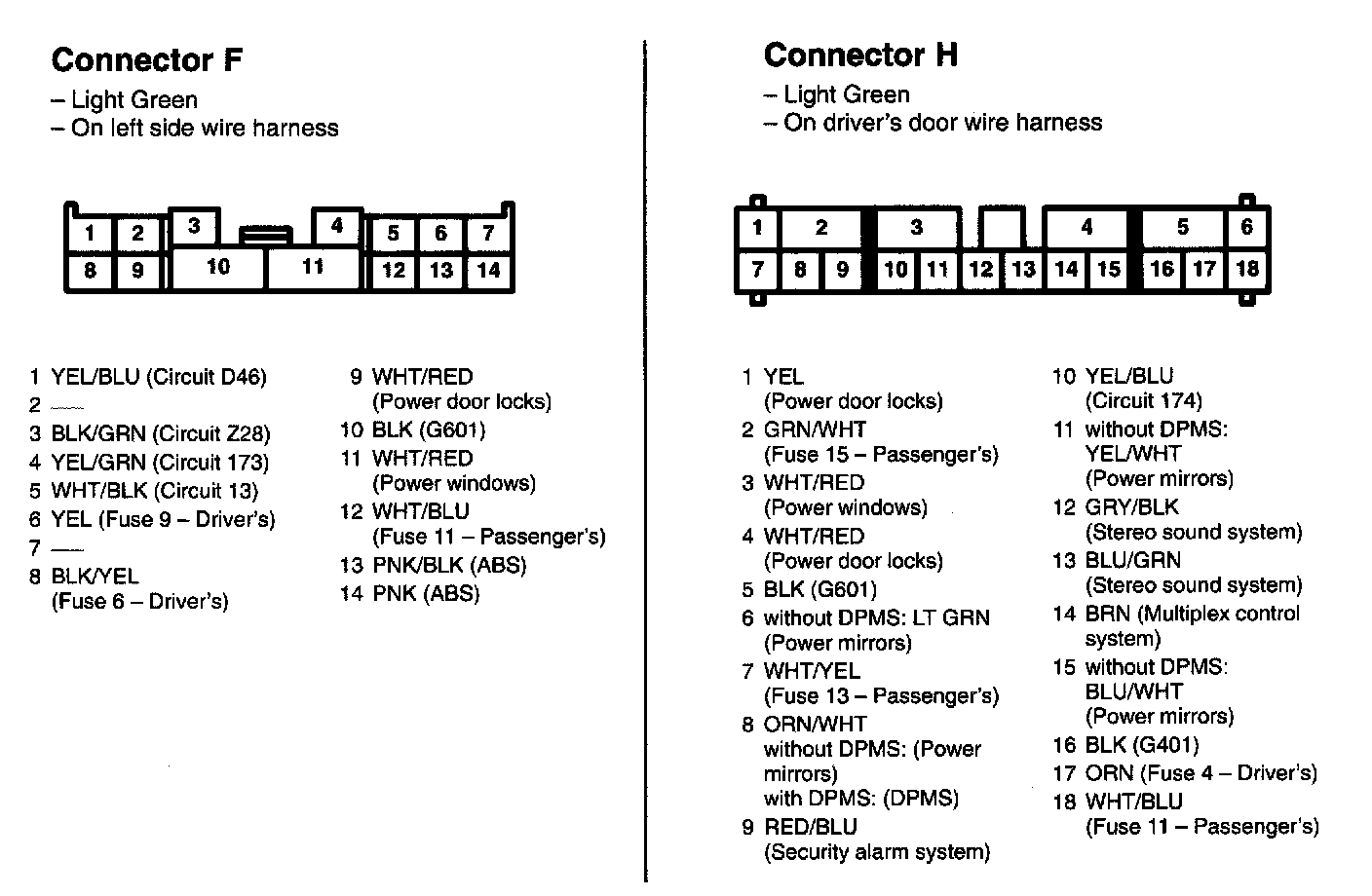

282. Under-dash Fuse/Relay Box, Driver's (Connectors F, H):

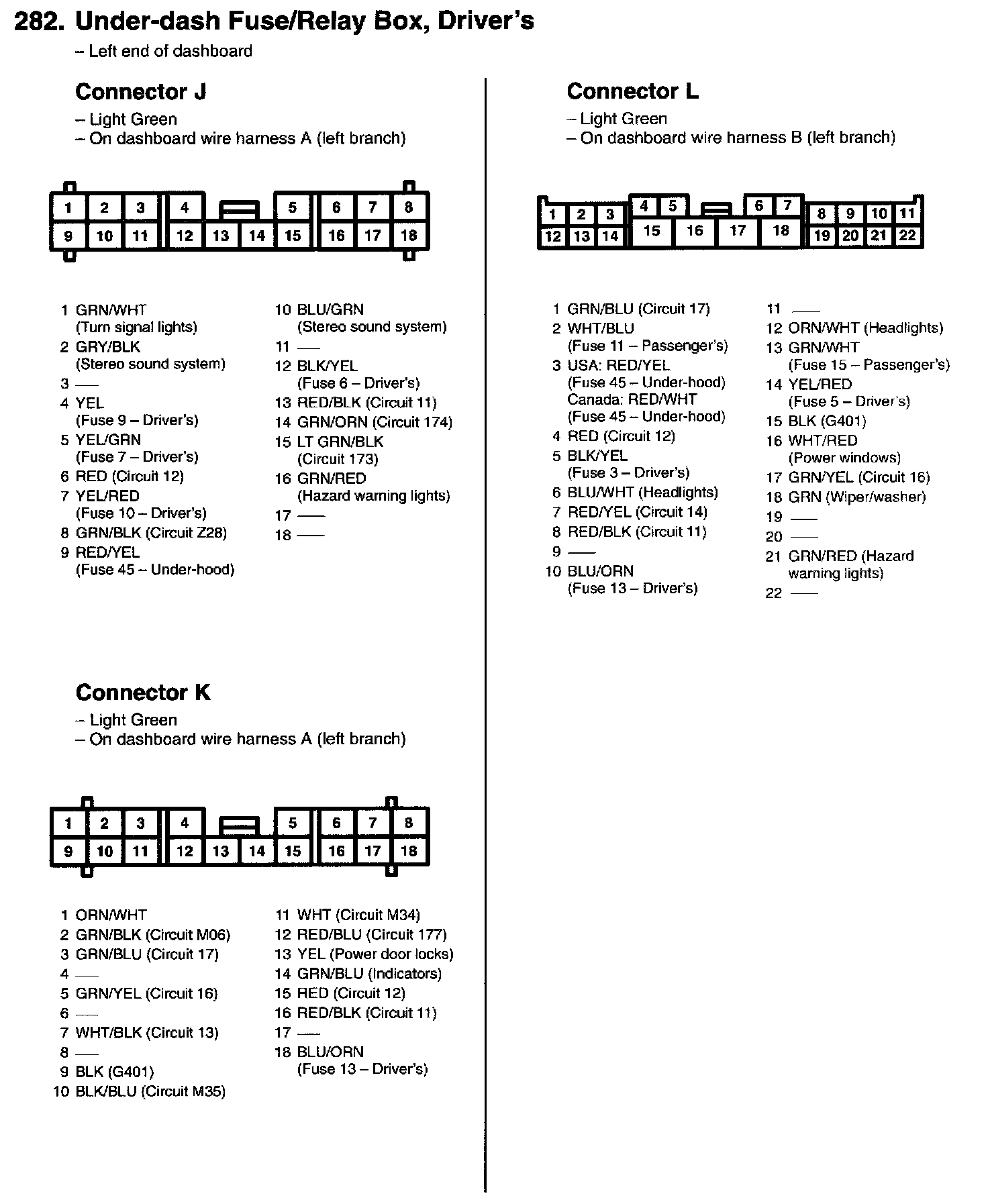

282. Under-dash Fuse/Relay Box, Driver's (Connectors J - L):

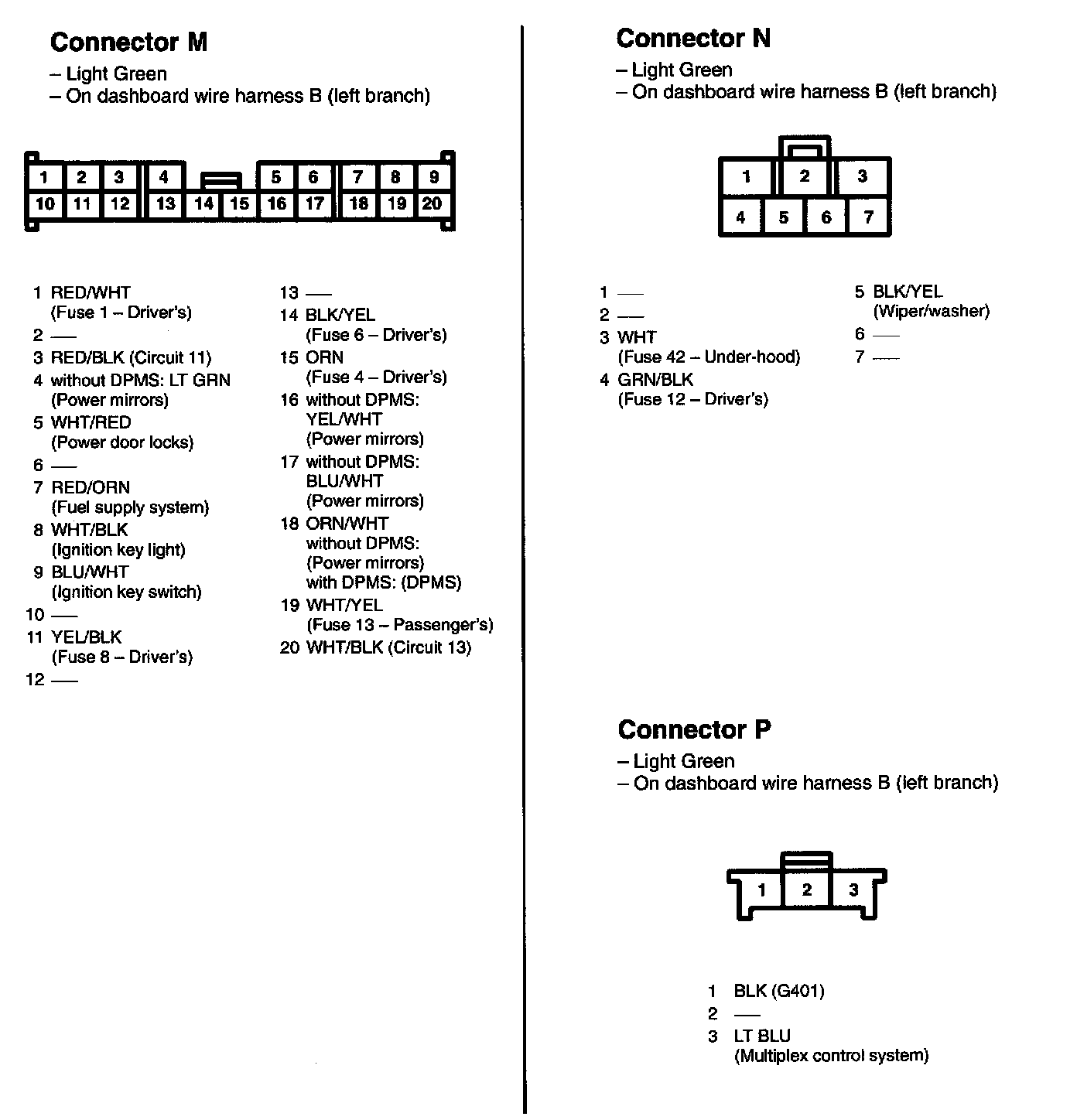

282. Under-dash Fuse/Relay Box, Driver's (Connectors M, N, P):
