Under-Dash Fuse/Relay Box, Passenger's

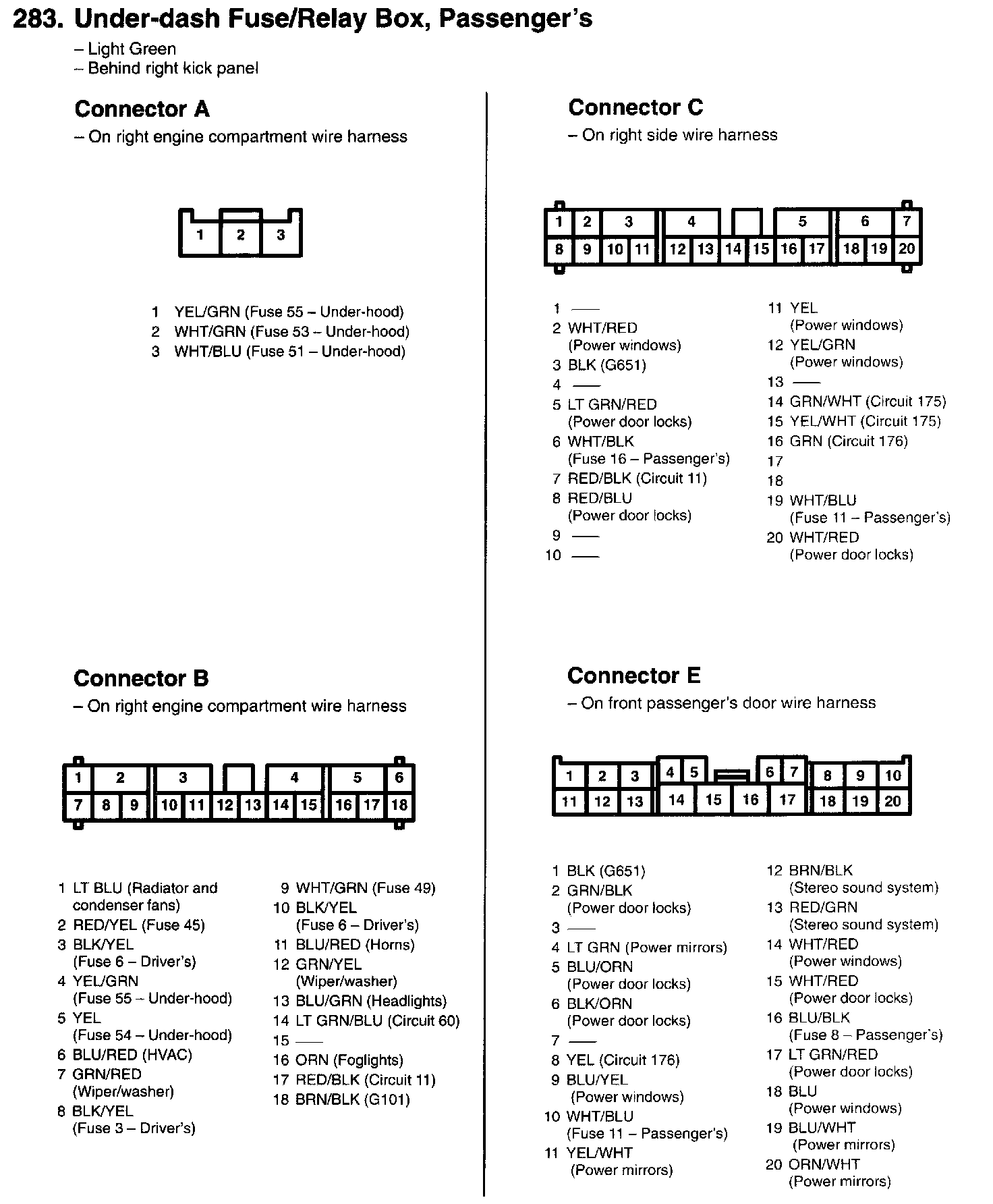

283. Under-dash Fuse/Relay Box, Passenger's (Connectors A, B, C, E):

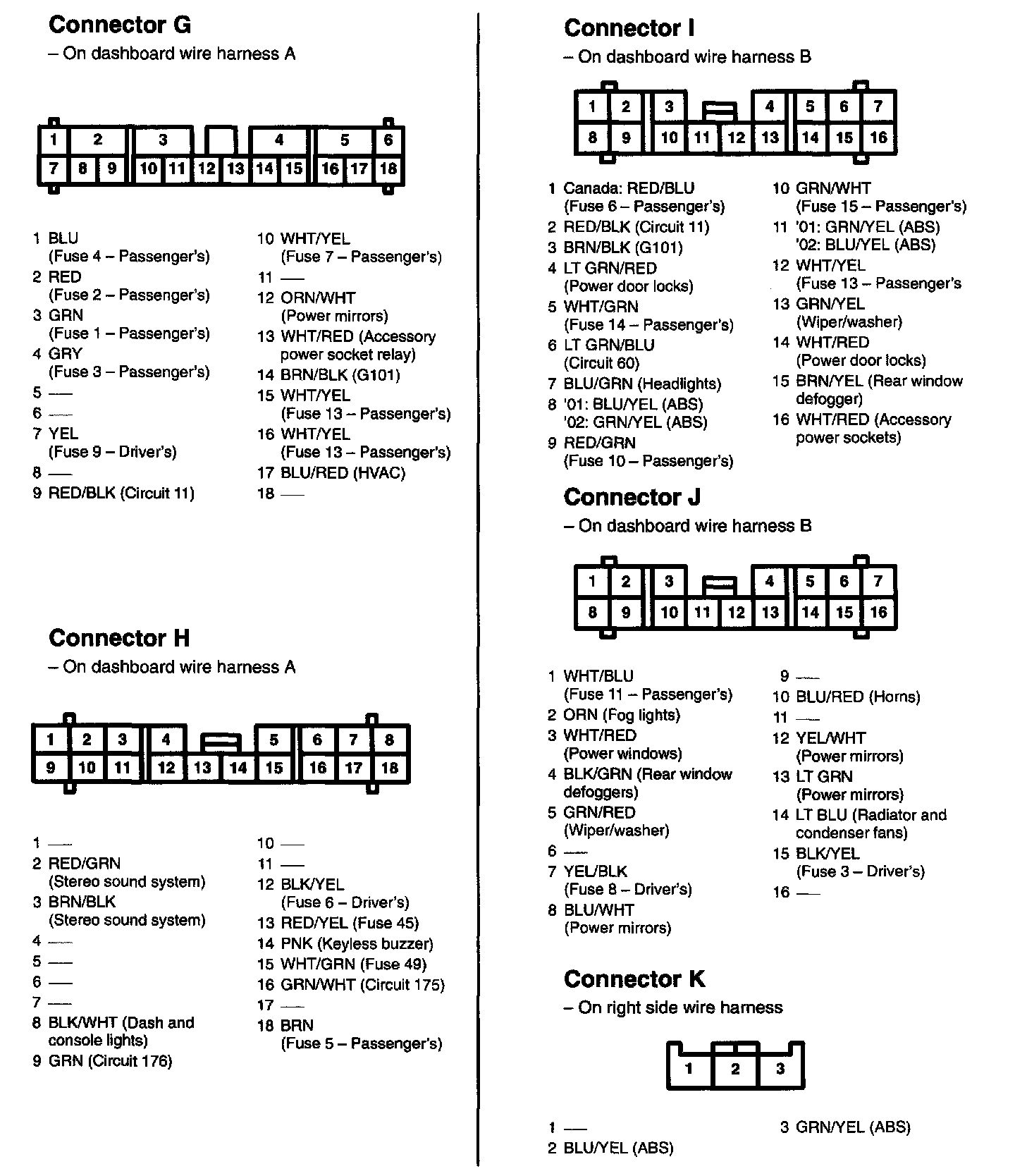

283. Under-dash Fuse/Relay Box, Passenger's (Connectors G - K):
