Power Mirror Switch
Power Mirror Switch

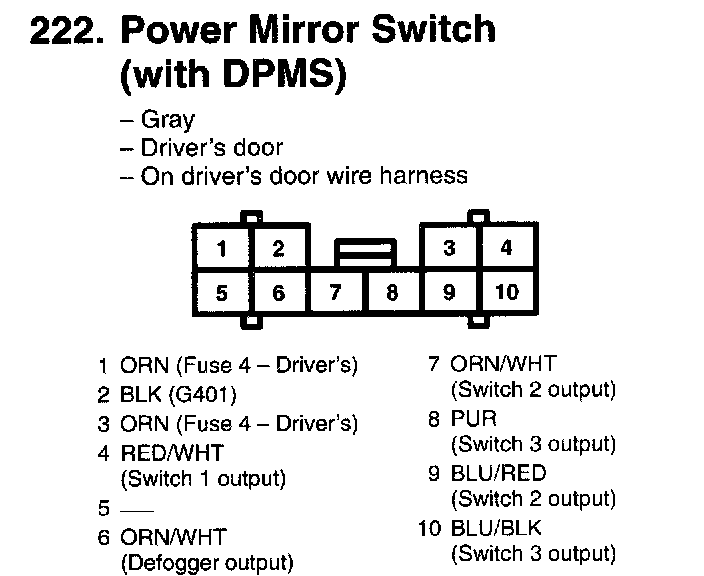

222. Power Mirror Switch (With DPMS):

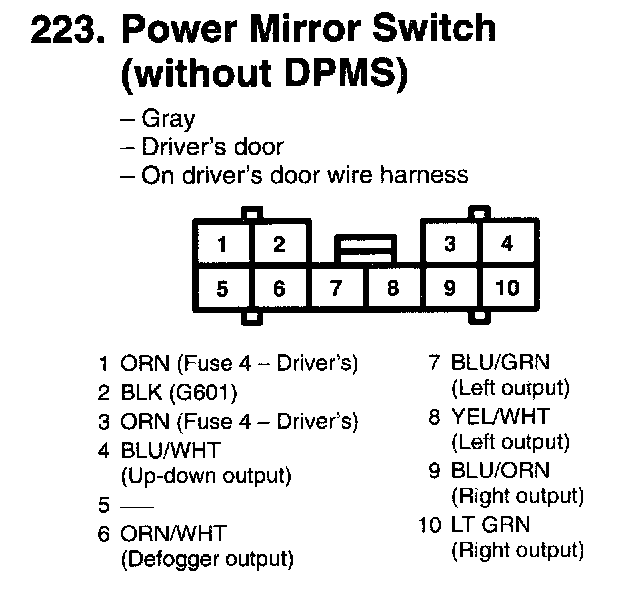

223. Power Mirror Switch (Without DPMS):
