System Diagram

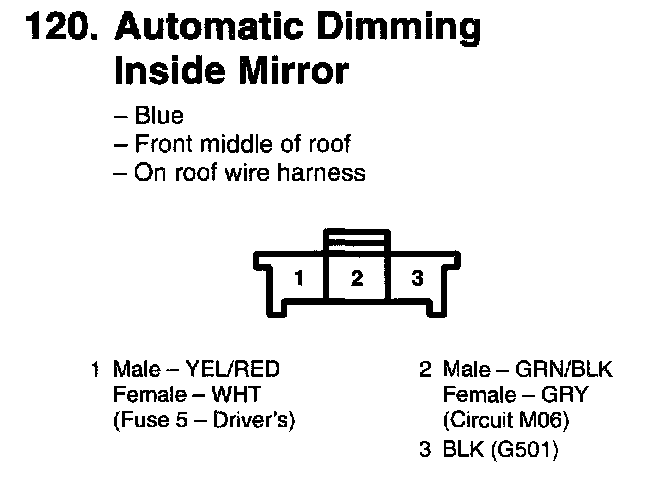

120. Automatic Dimming Inside Mirror:

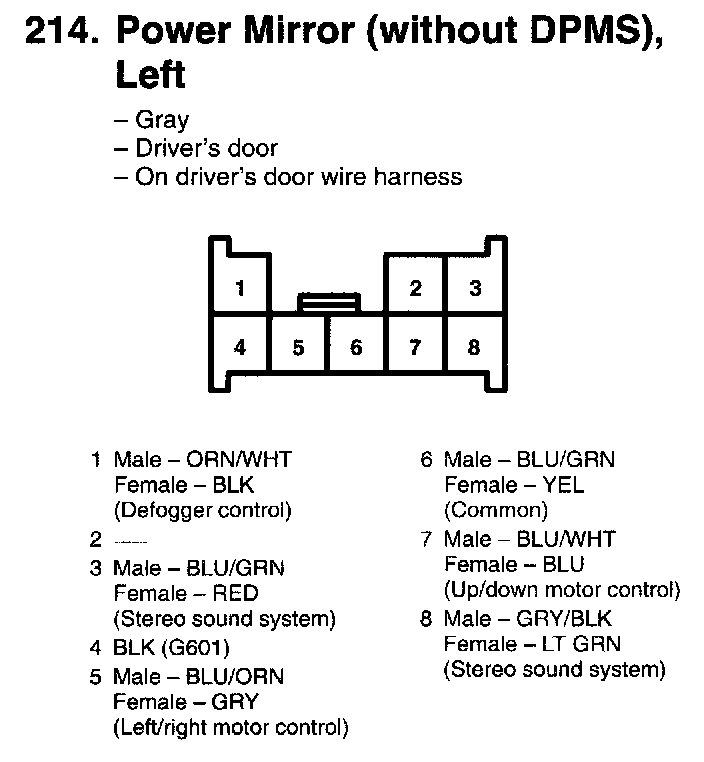

214. Power Mirror (Without DPMS), Left:

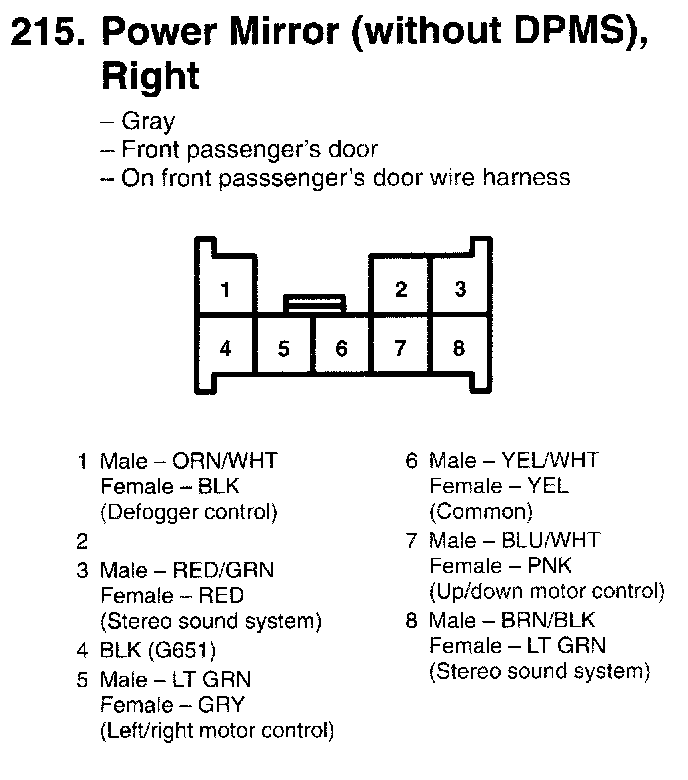

215. Power Mirror (Without DPMS), Right:

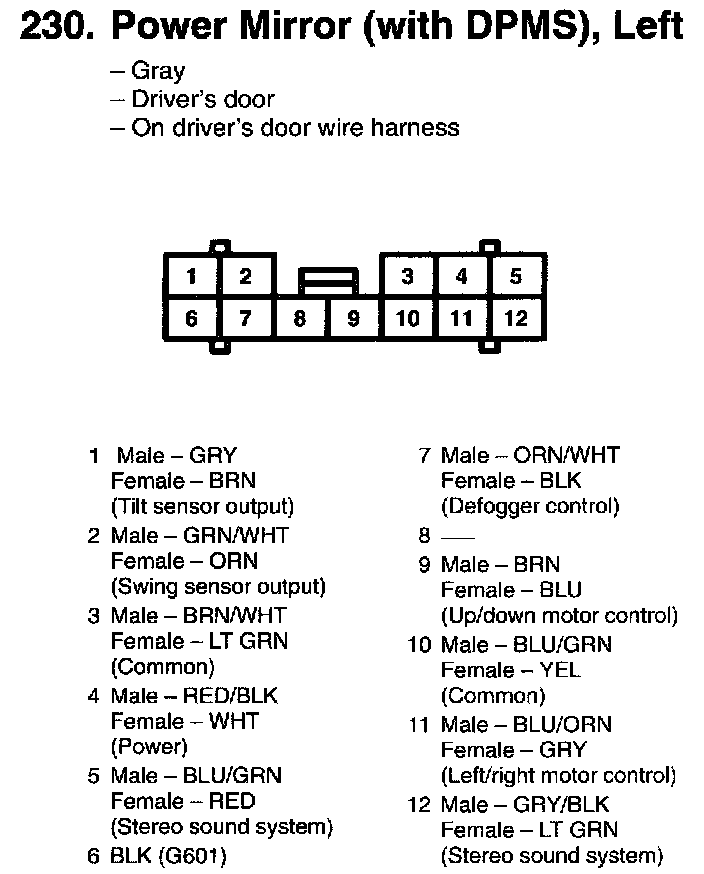

230. Power Mirror (With DPMS), Left:



231. Power Mirror (With DPMS), Right:
