Power Door Lock Switch
Power Door Lock Switch

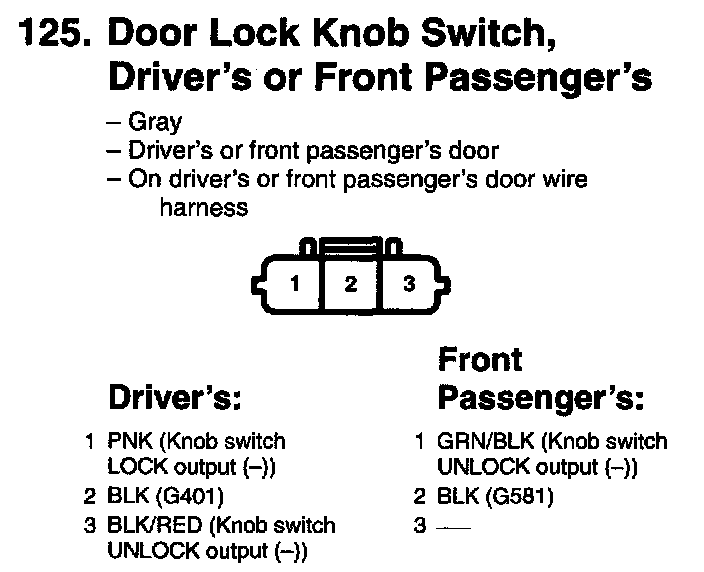

125. Door Lock Knob Switch, Driver's Or Front Passenger's:

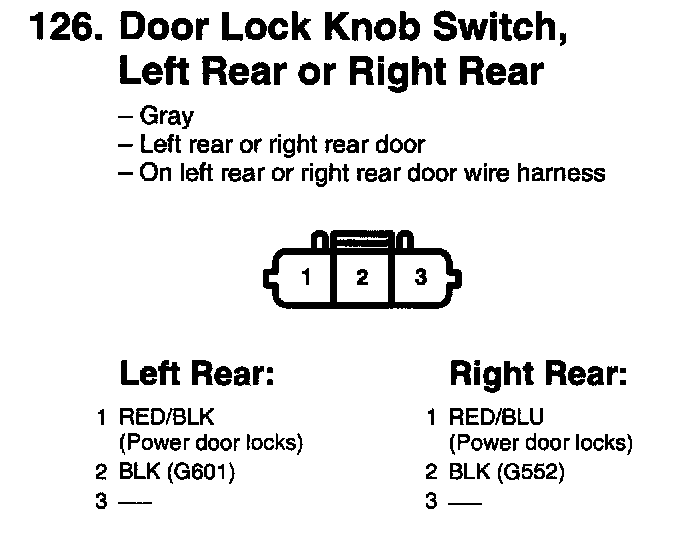

126. Door Lock Knob Switch, Left Rear Or Right Rear:
127. Door Lock Switch, Driver's Or Front Passenger's:
