Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

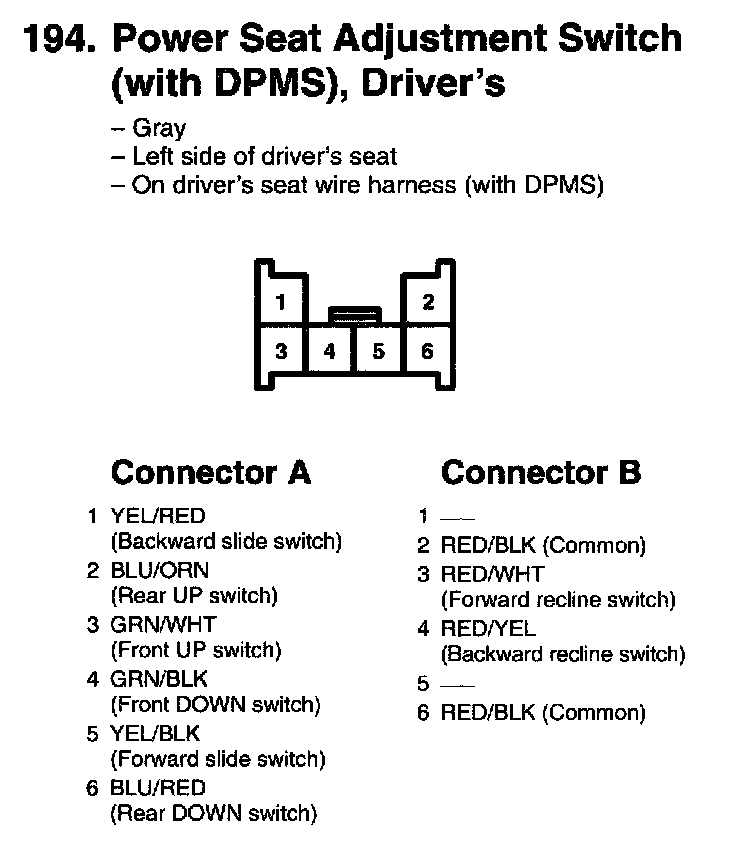

194. Power Seat Adjustment Switch (With DPMS), Driver's:

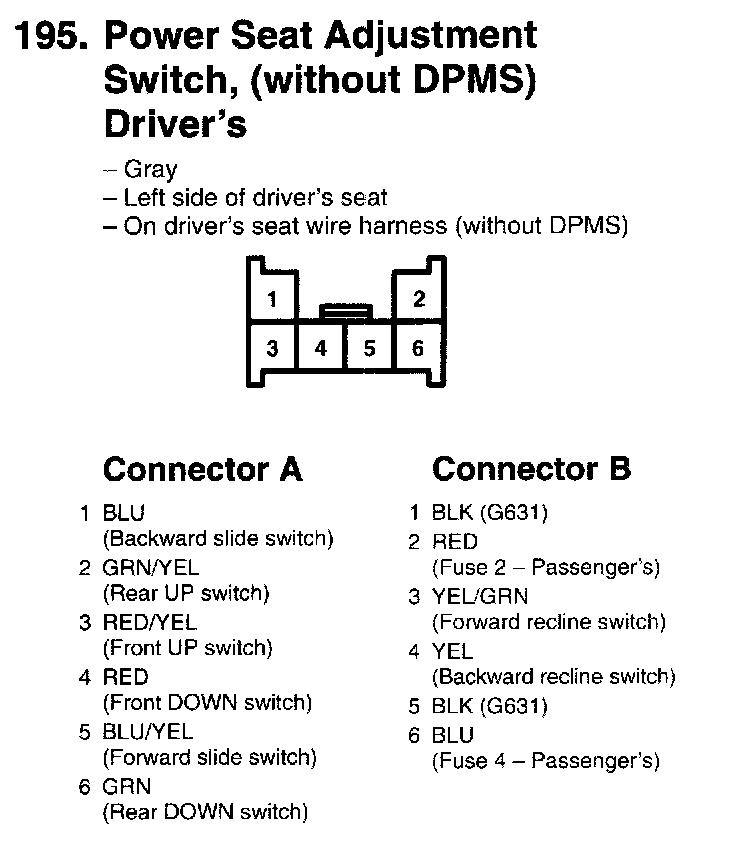

195. Power Seat Adjustment Switch, (Without DPMS) Driver's:

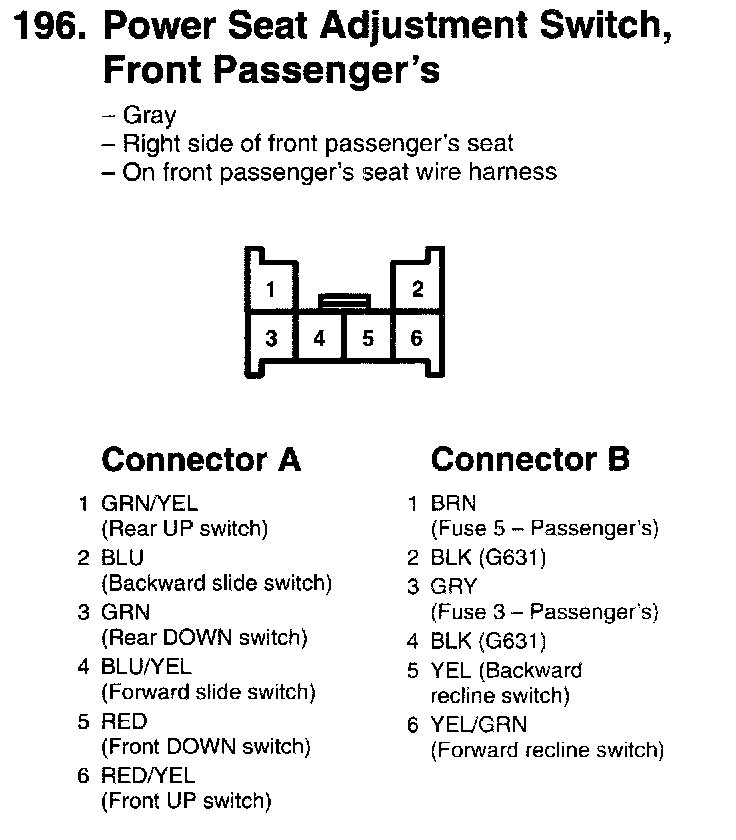

196. Power Seat Adjustment Switch, Front Passenger's:
