Power Transistor HVAC
Power Transistor HVAC
148. Blower Power Transistor, Rear:

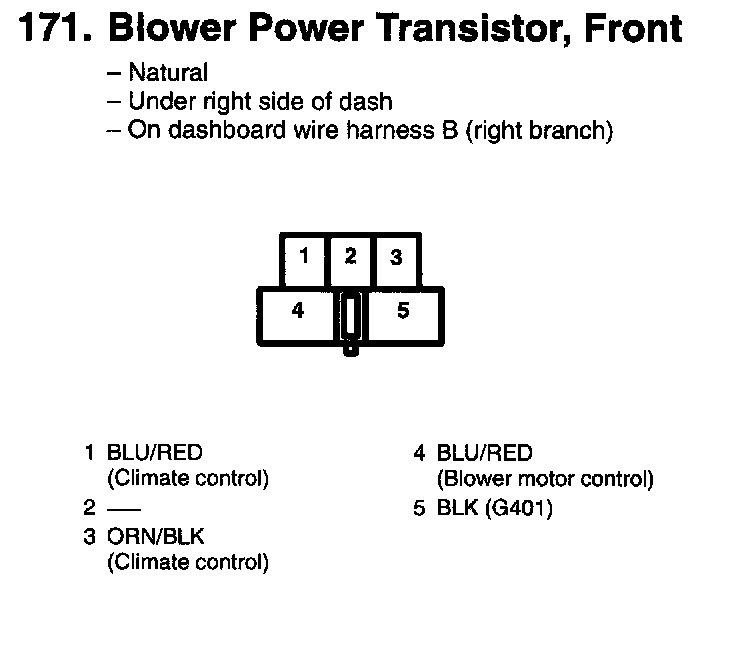

171. Blower Power Transistor, Front:
