Seat Temperature Element
Seat Temperature Element

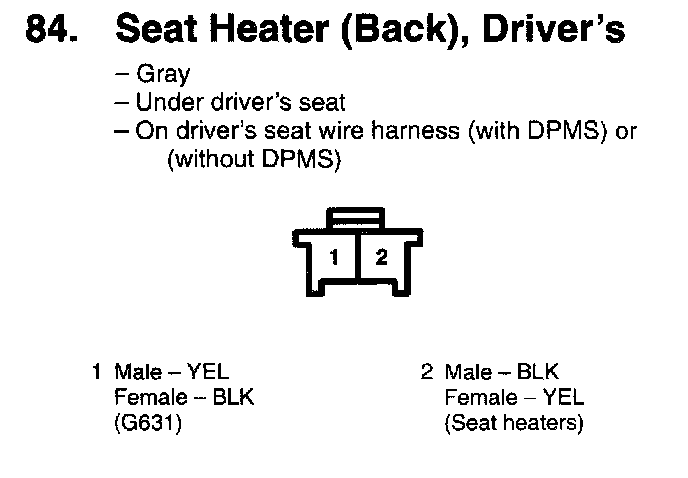

84. Seat Heater (Back), Driver's:

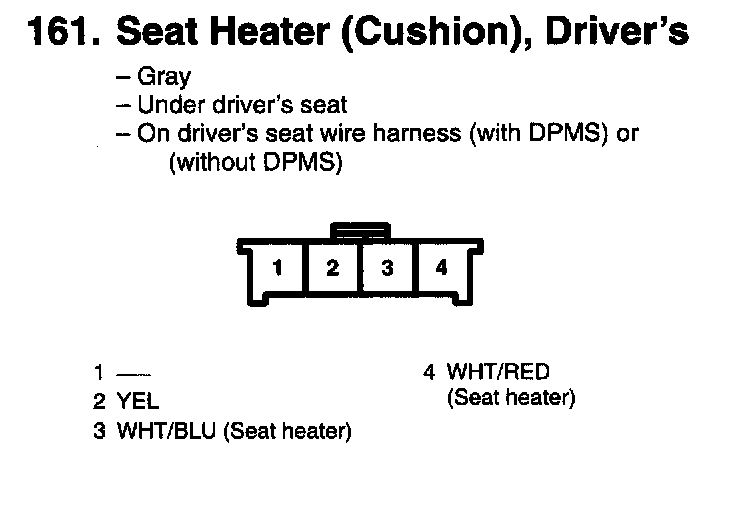

161. Seat Heater (Cushion), Driver's:

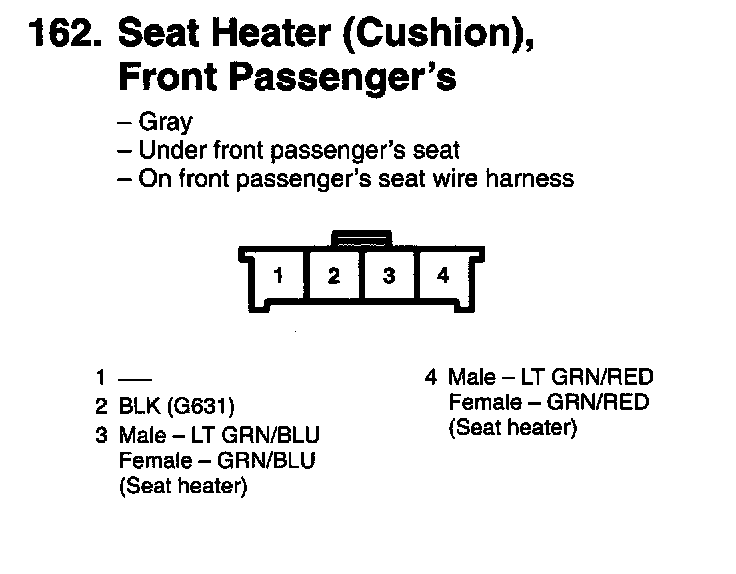

162. Seat Heater (Cushion), Front Passenger's:
