Seat Temperature Relay
Seat Temperature Relay

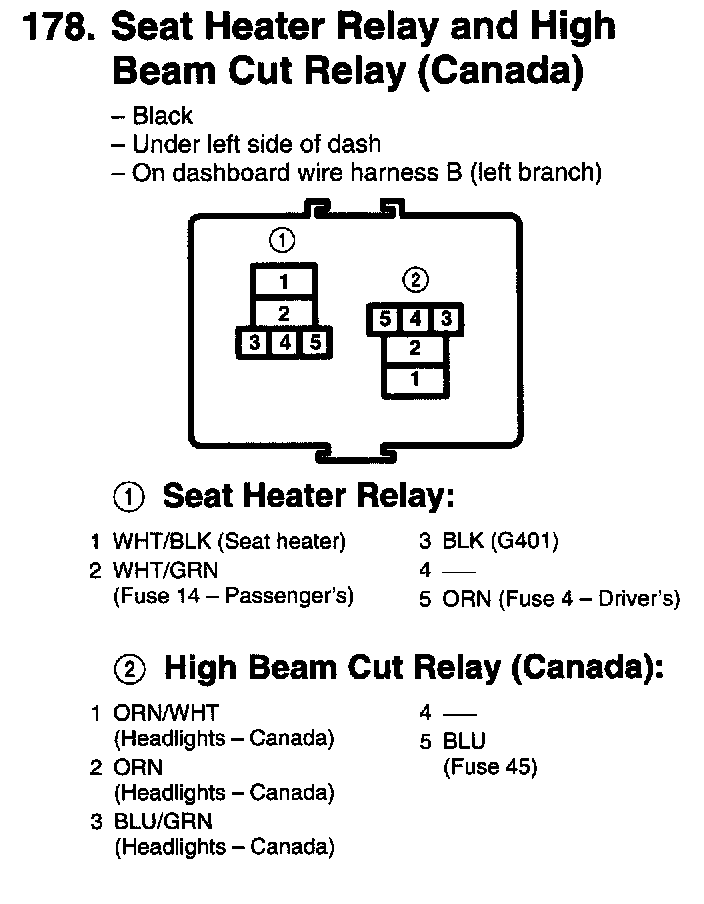

178. Seat Heater Relay And High Beam Cut Relay (Canada):
