Home
>>
Acura
>>
2002
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Interlock Solenoid
Shift Interlock Solenoid

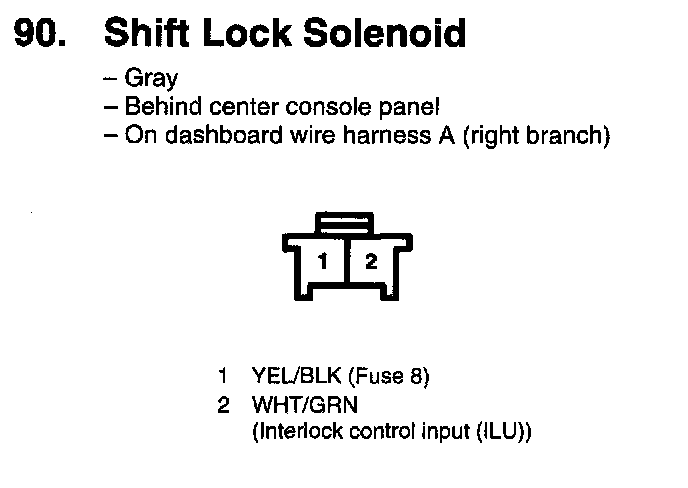

90. Shift Lock Solenoid:
