Transmission Speed Sensor, A/T
>>
Countershaft Speed Sensor
Countershaft Speed Sensor

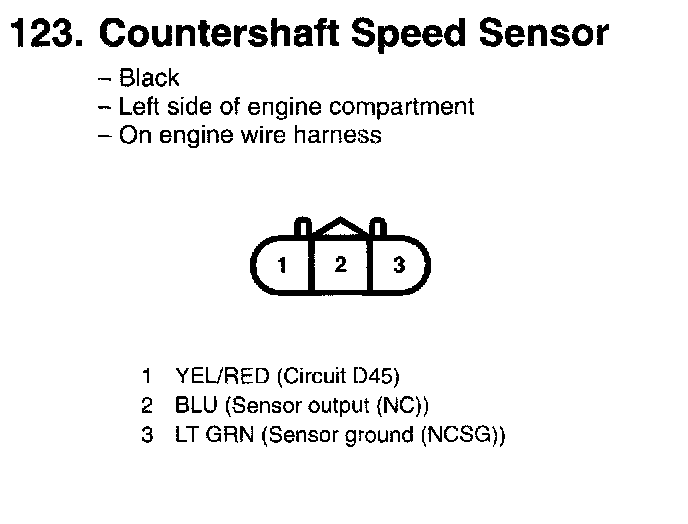

123. Countershaft Speed Sensor:
