Transmission Speed Sensor, A/T
>>
Mainshaft Speed Sensor
Mainshaft Speed Sensor

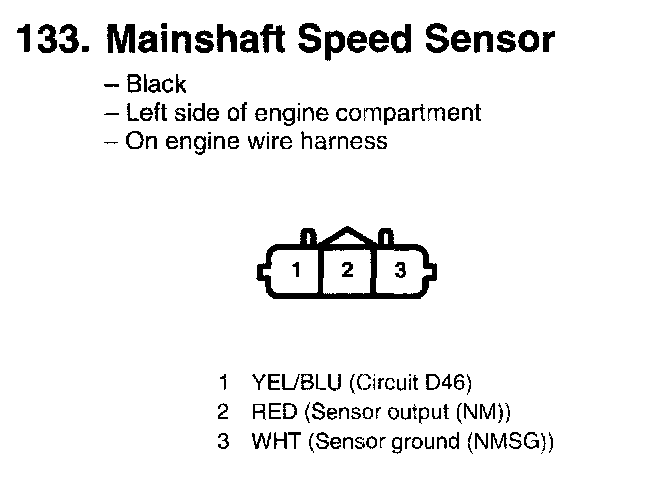

133. Mainshaft Speed Sensor:
