Connector Views
>>
Variable Induction Control Module
Variable Induction Control Module

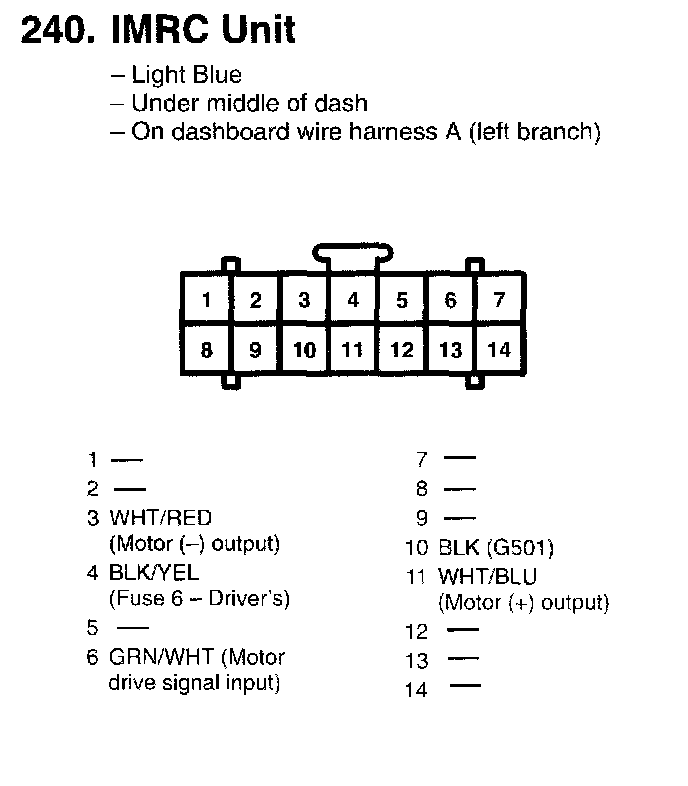

240. IMRC Unit:
