Wheel Speed Sensor

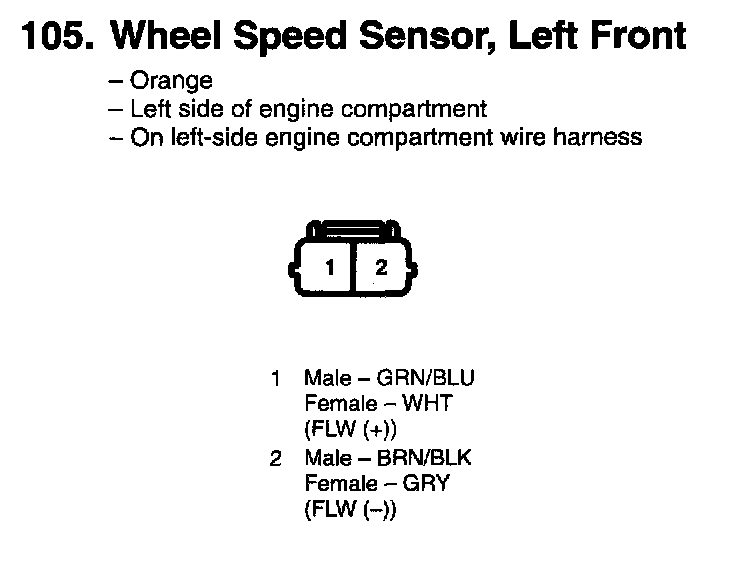

105. Wheel Speed Sensor, Left Front:

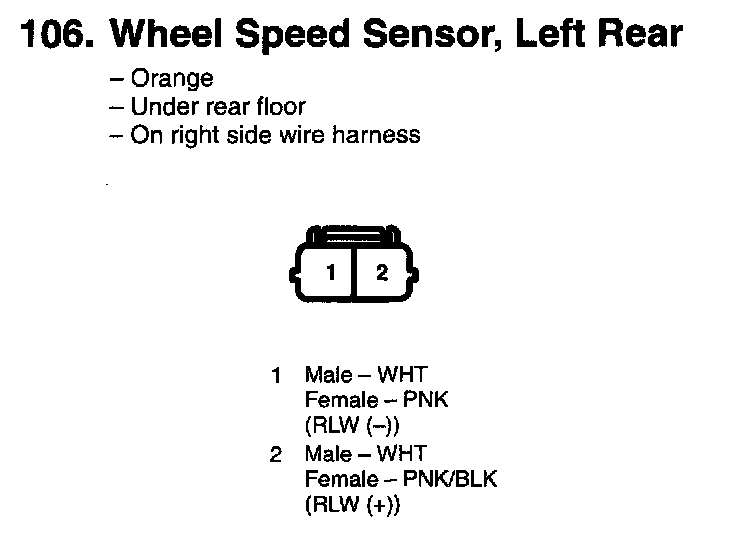

106. Wheel Speed Sensor, Left Rear:

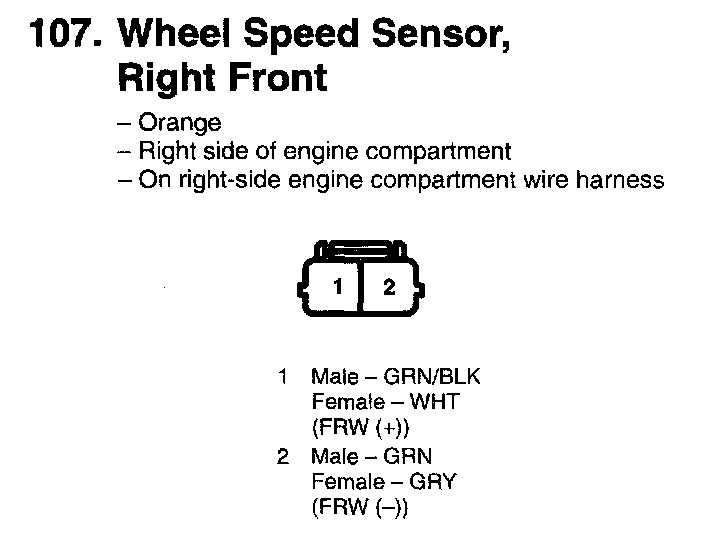

107. Wheel Speed Sensor, Right Front:

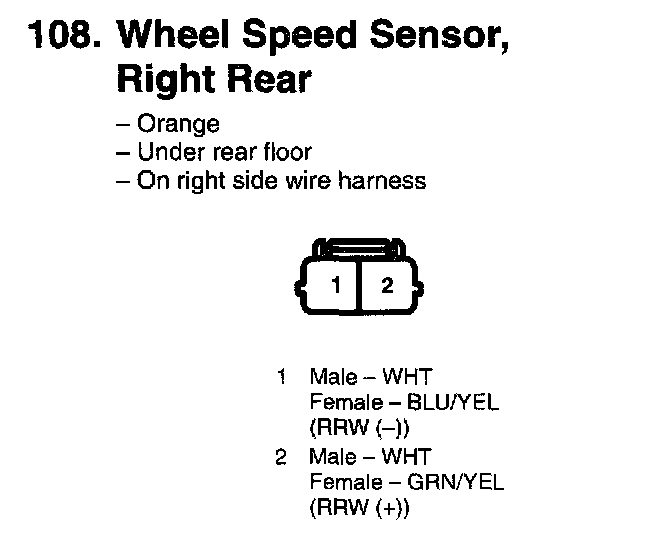

108. Wheel Speed Sensor, Right Rear:
