Home >> Acura >> 2002 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

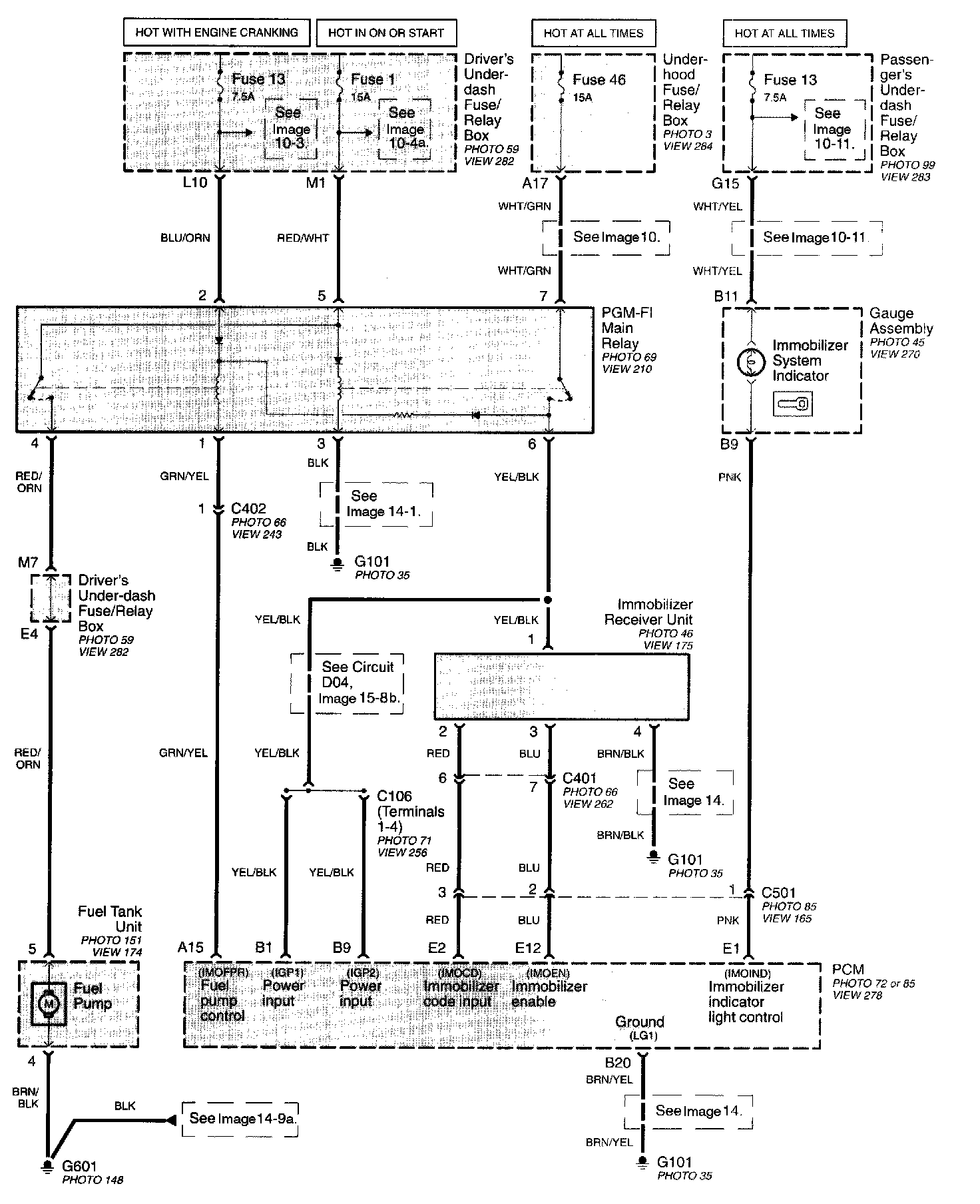

Immobilizer System Image 132:
