Keyless Entry

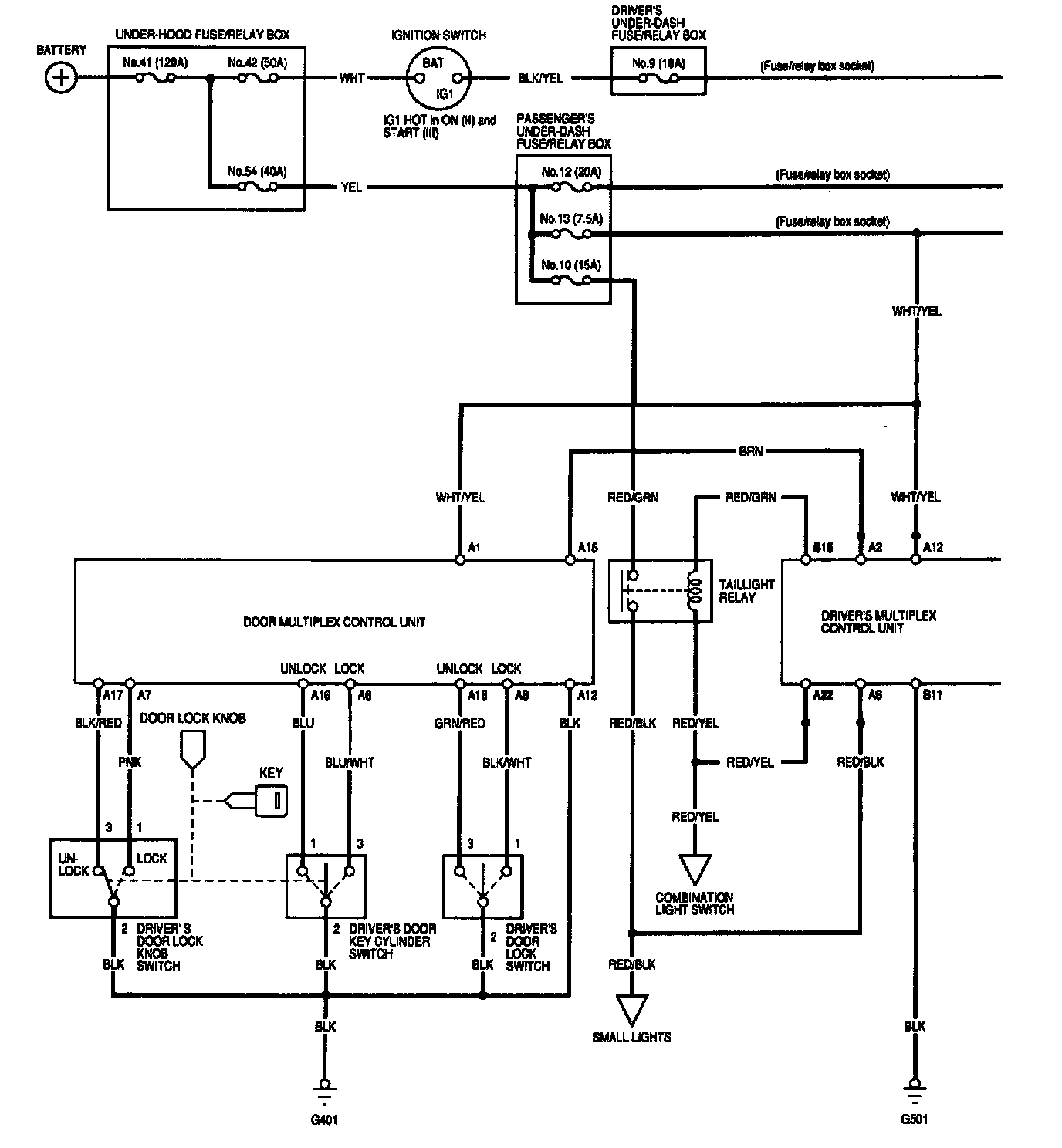

Keyless Entry/Security Alarm System - Circuit Diagram Image 22-236:

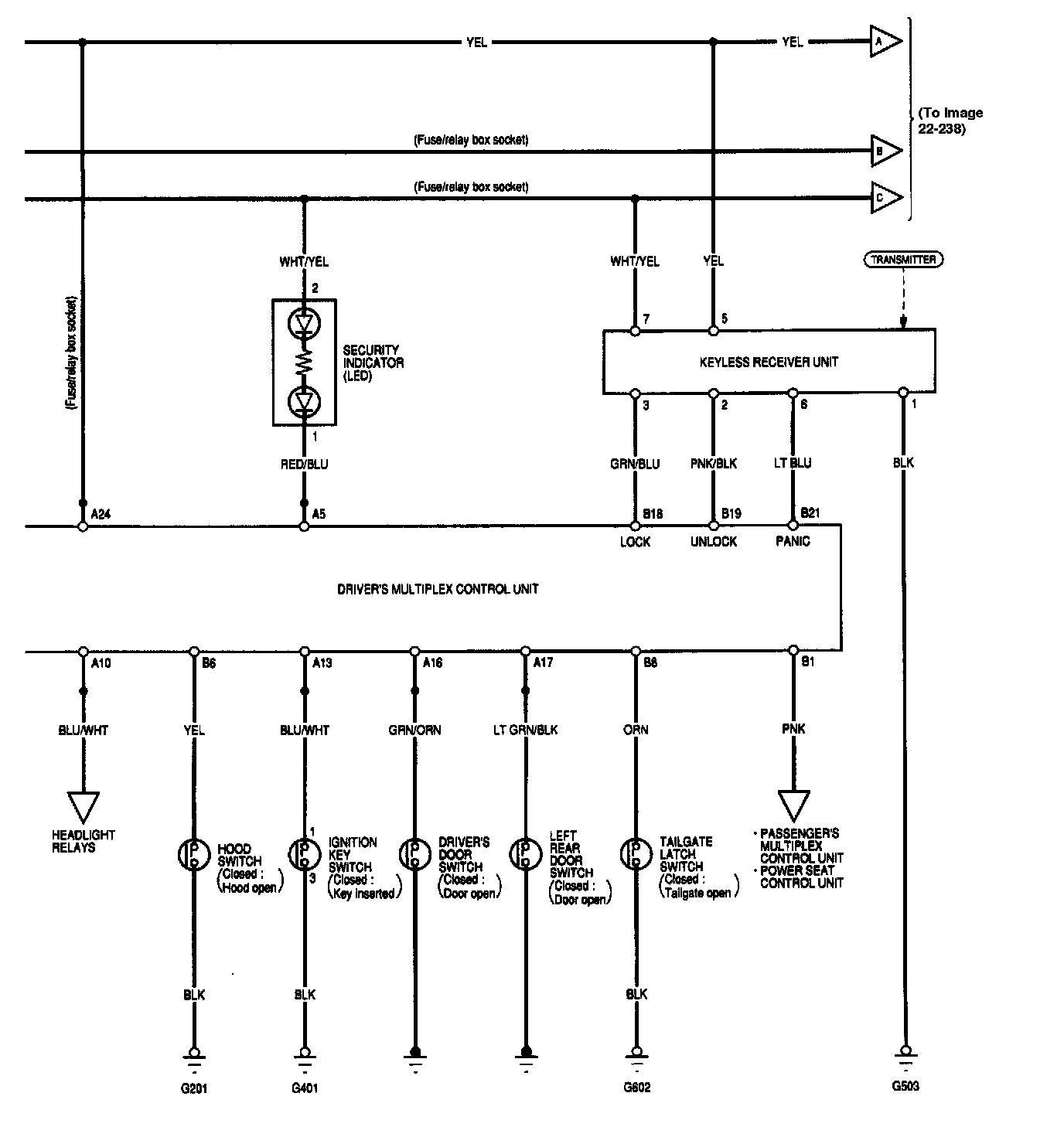

Keyless Entry/Security Alarm System - Circuit Diagram Image 22-237:

Keyless Entry/Security Alarm System - Circuit Diagram Image 22-238:

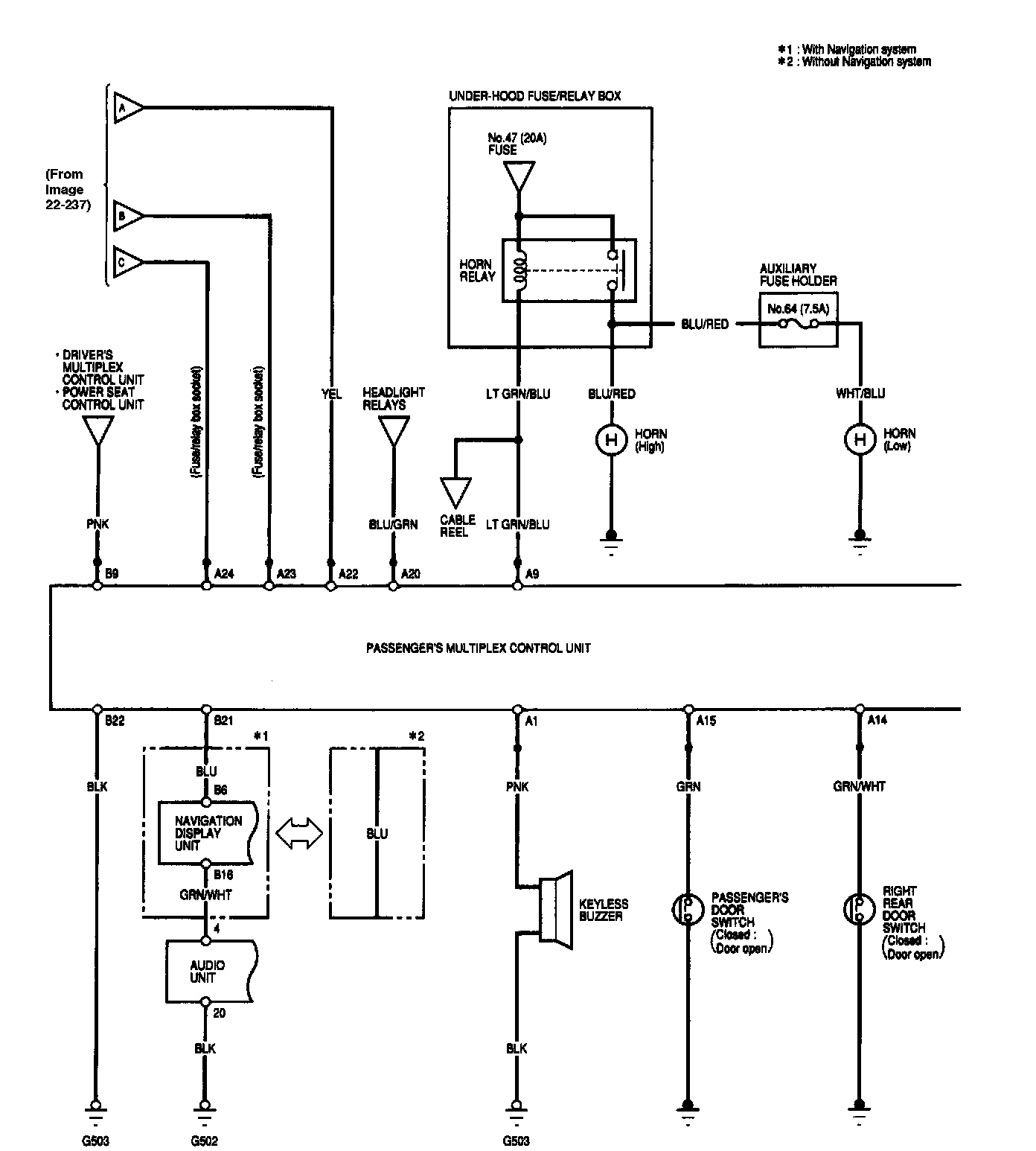

Keyless Entry/Security Alarm System - Circuit Diagram Image 22-239:

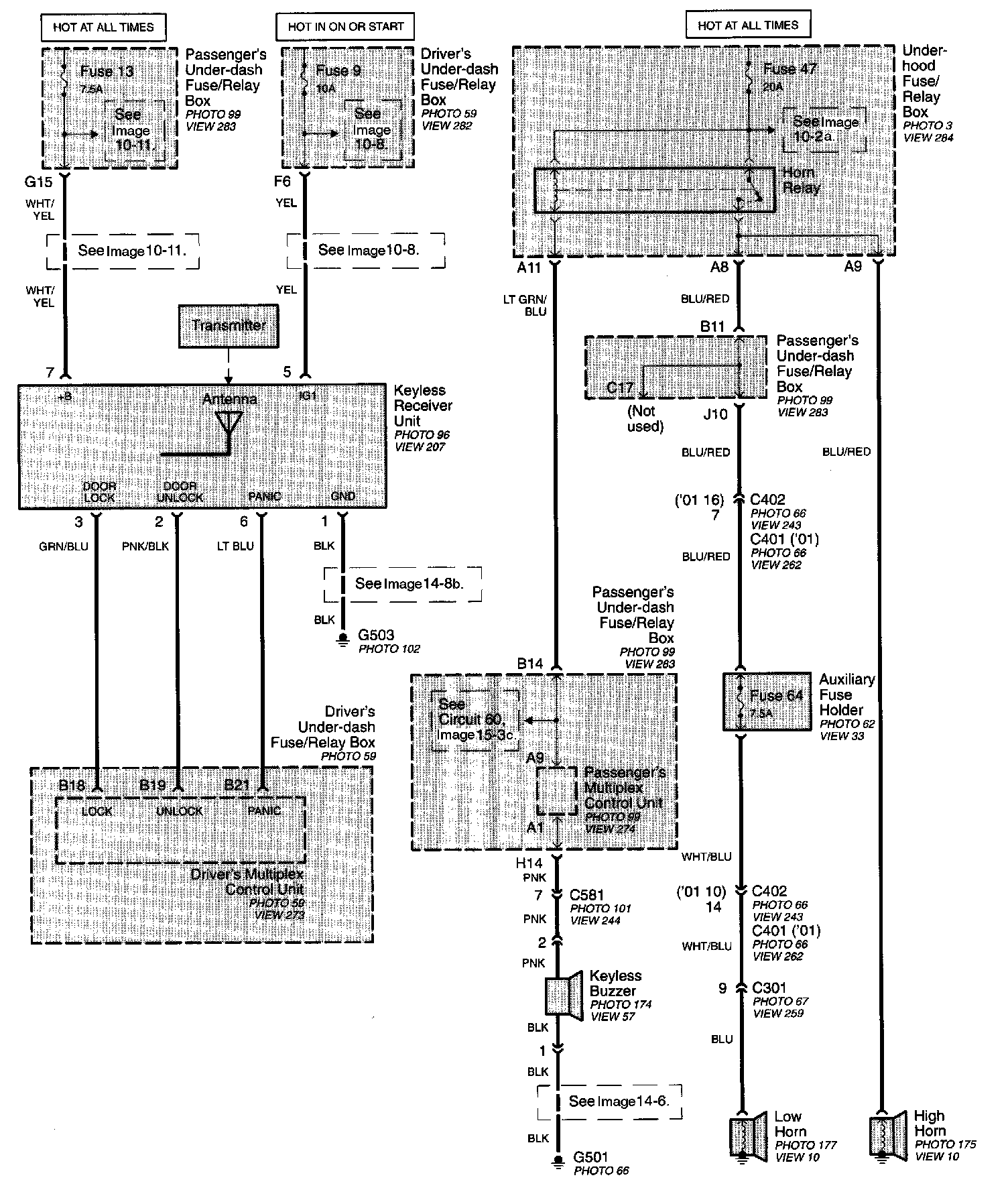

Power Door Locks/Keyless Entry/Security Alarm Image 130:

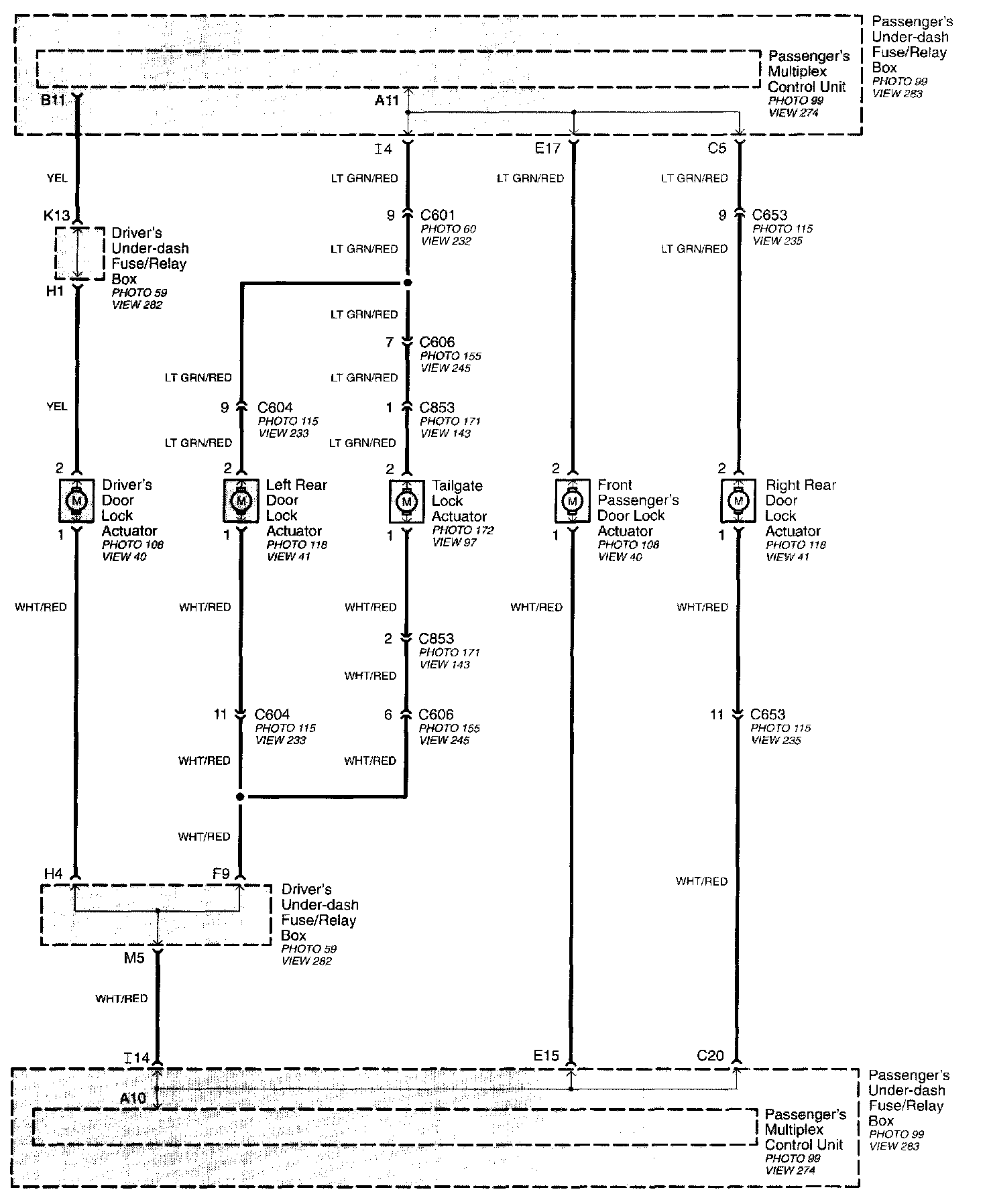

Power Door Locks/Keyless Entry/Security Alarm Image 130-1:

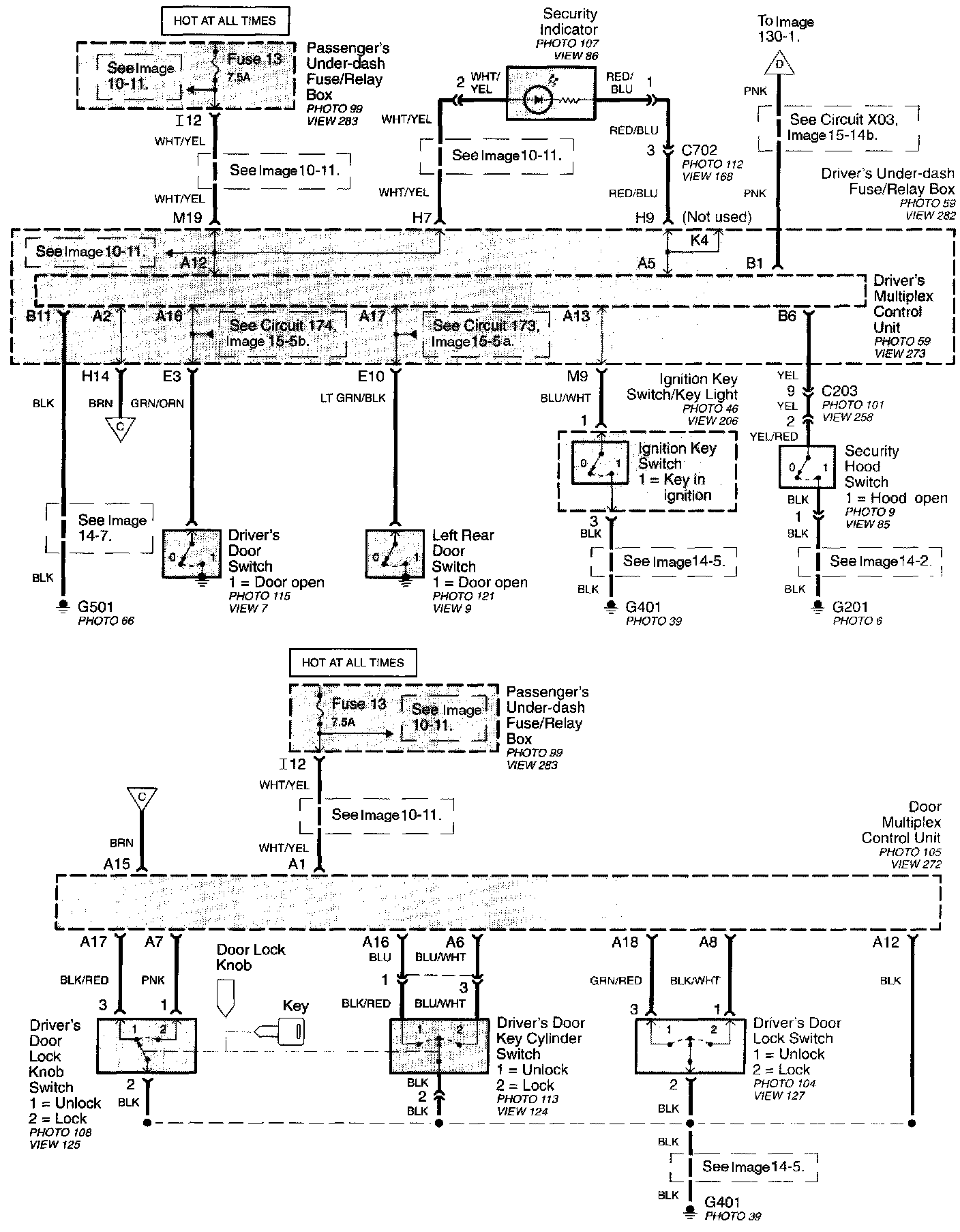

Power Door Locks/Keyless Entry/Security Alarm Image 130-2:

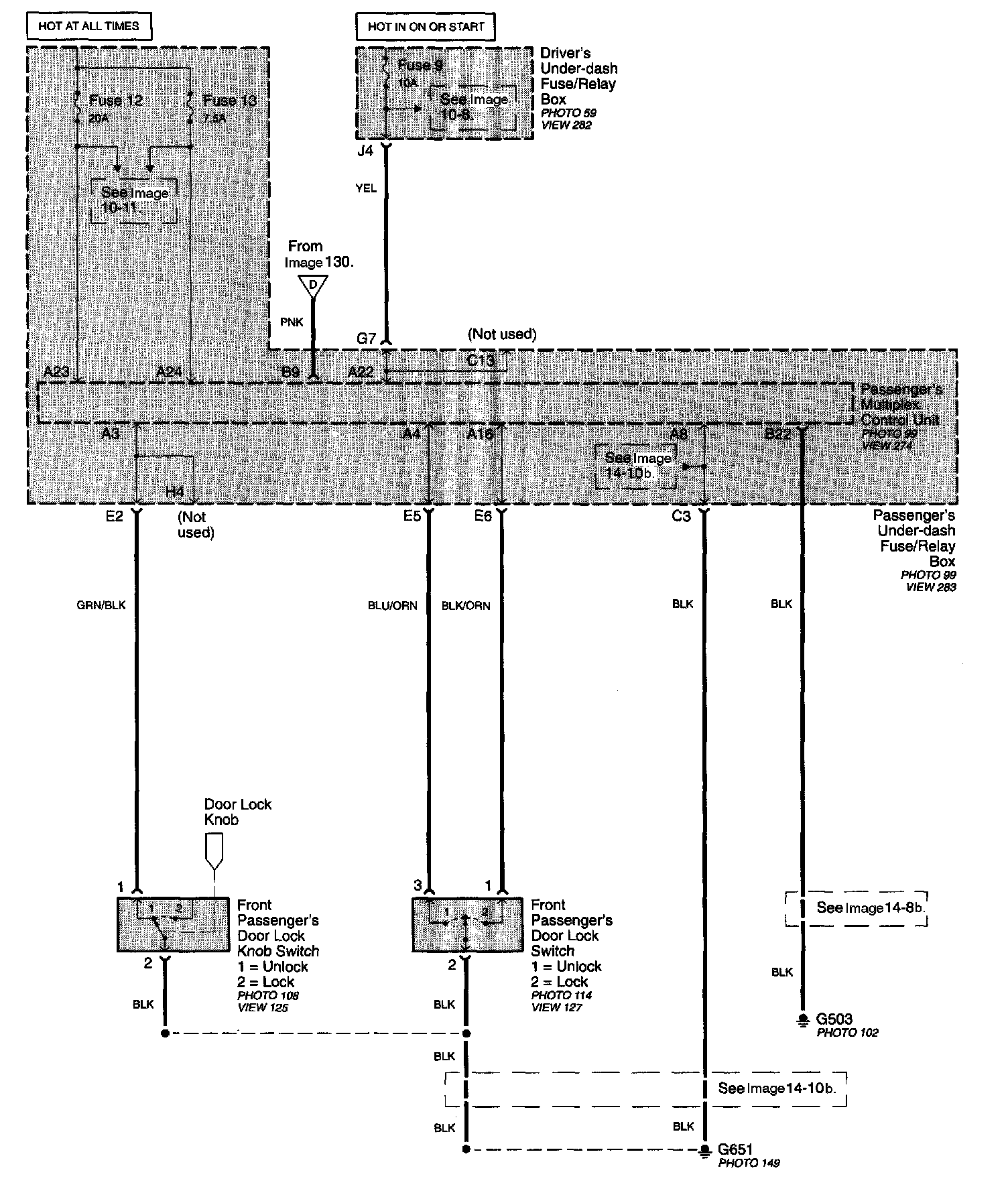

Power Door Locks/Keyless Entry/Security Alarm Image 130-3:

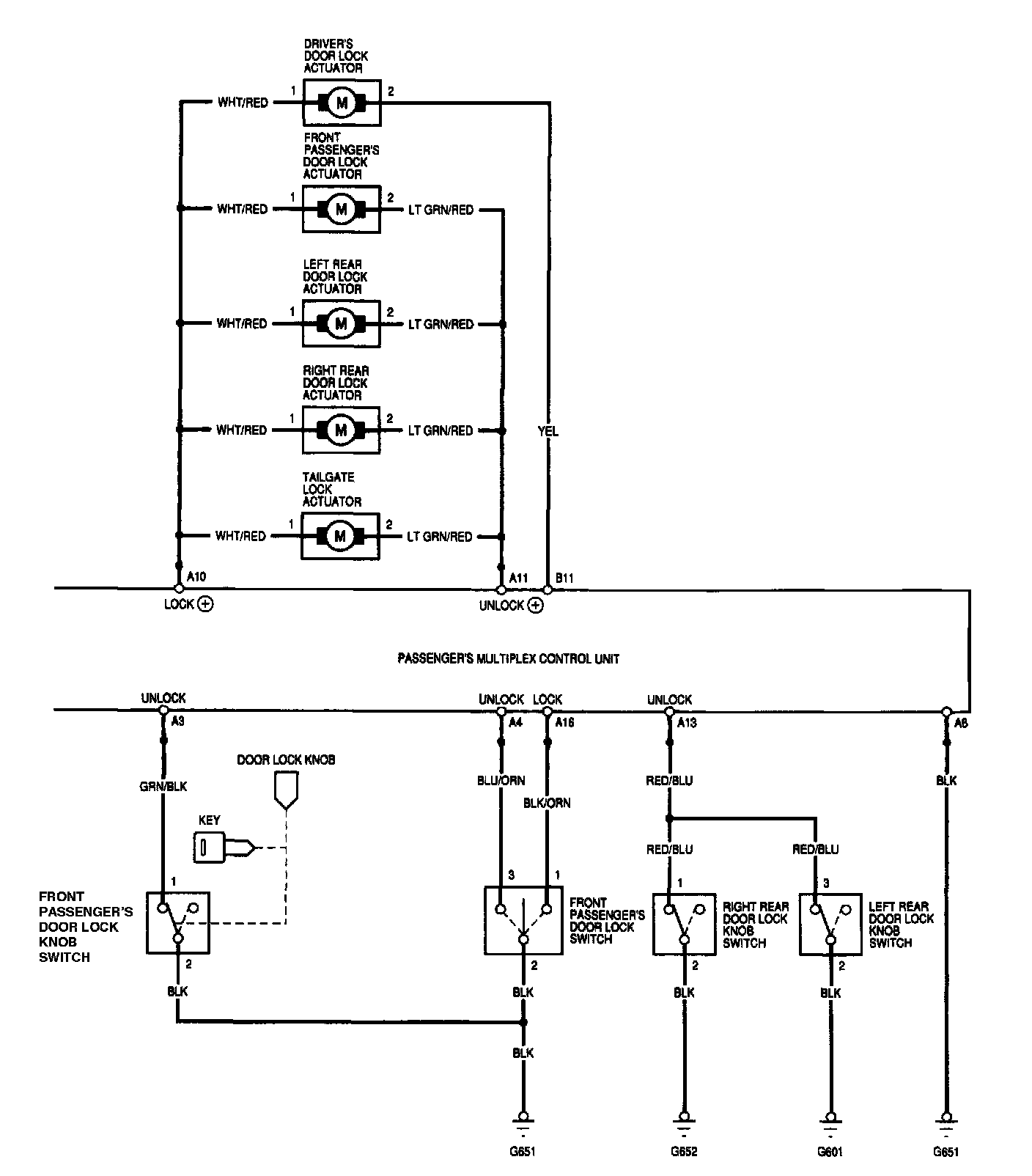

Power Door Locks/Keyless Entry/Security Alarm Image 130-4:

Power Door Locks/Keyless Entry/Security Alarm Image 130-5:
