Navigation System Circuit Diagrams

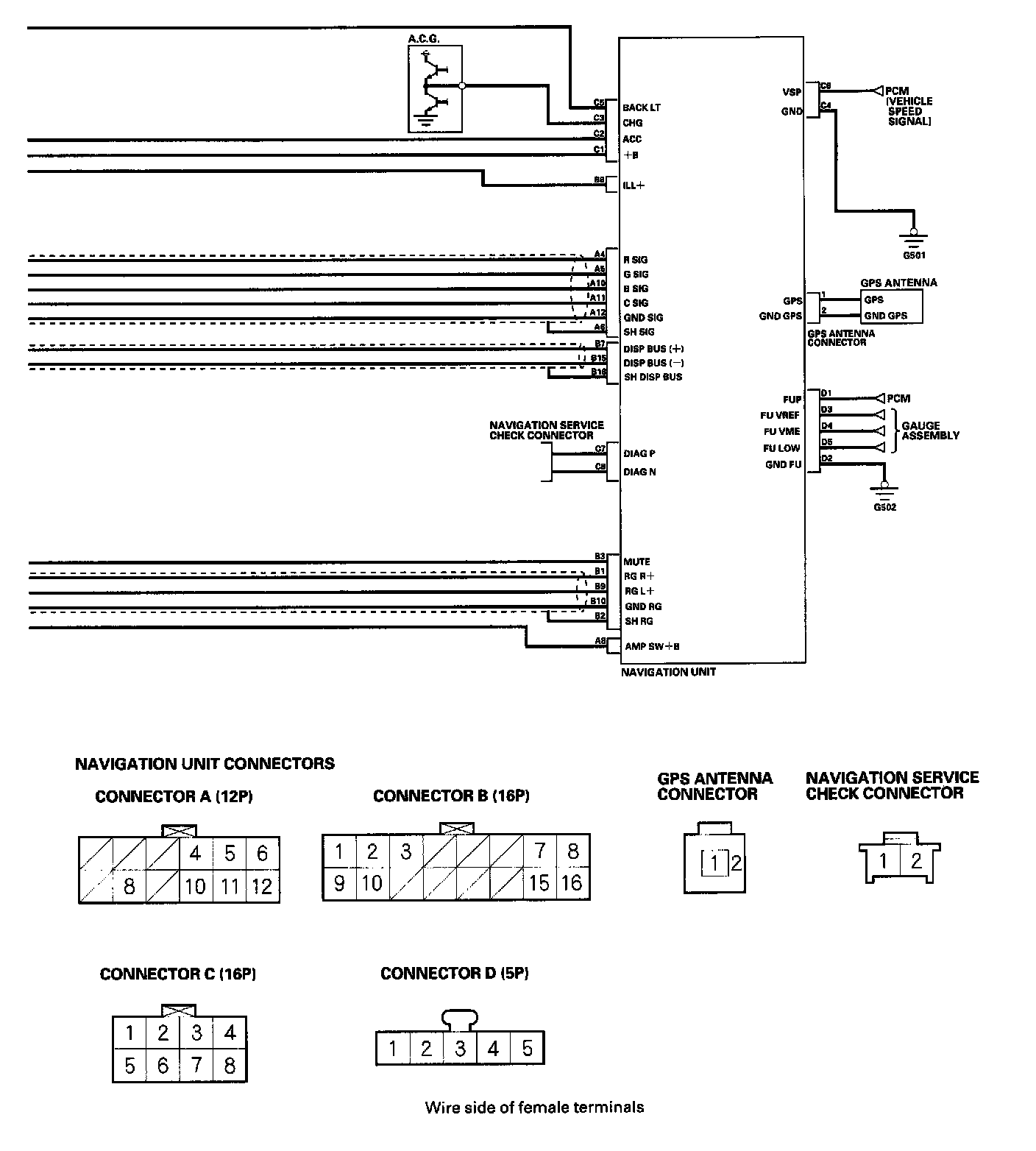

Navigation System - Circuit Diagram Image 22-332:

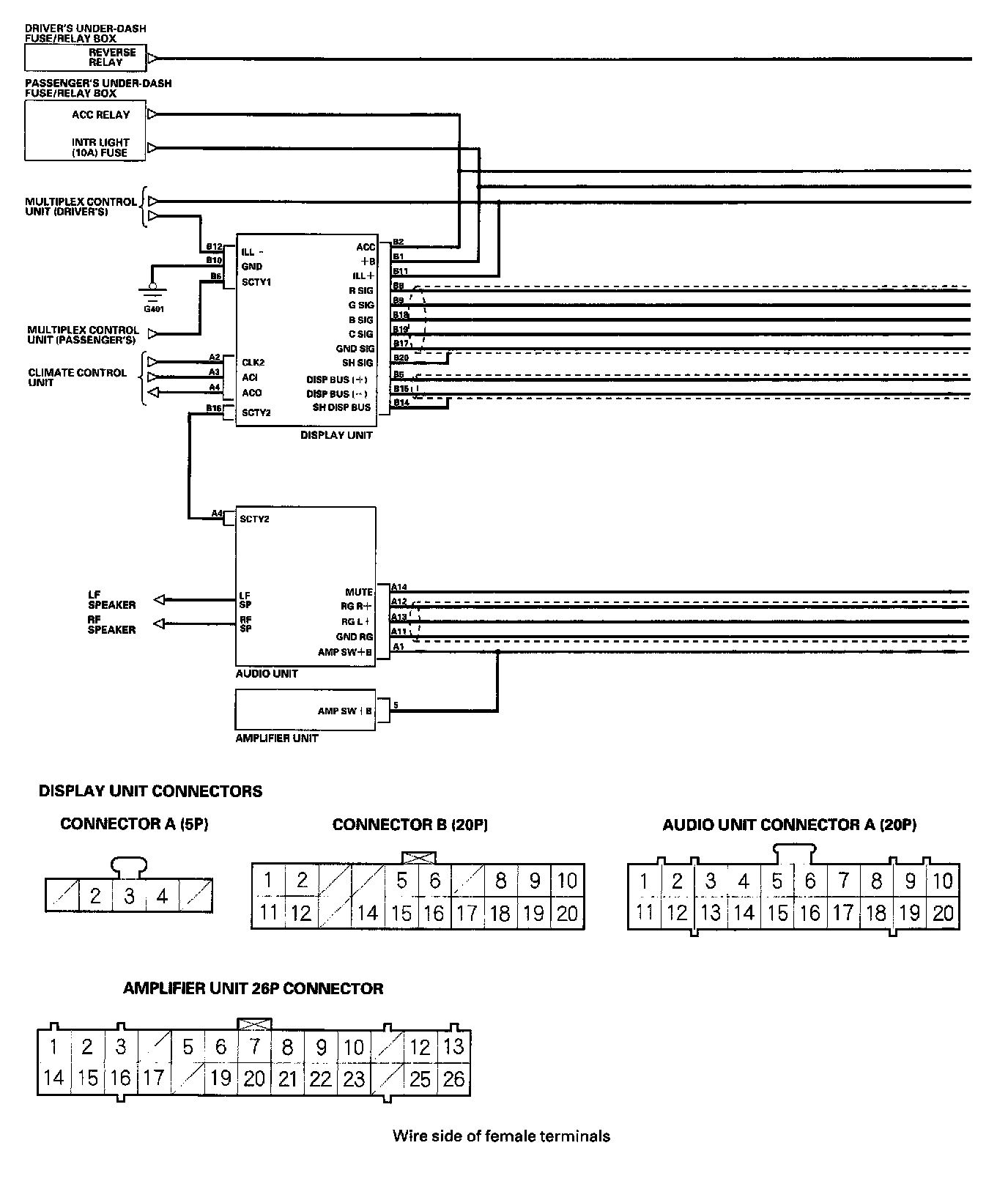

Navigation System - Circuit Diagram Image 22-333:
