Engine Compartment and Dash Board

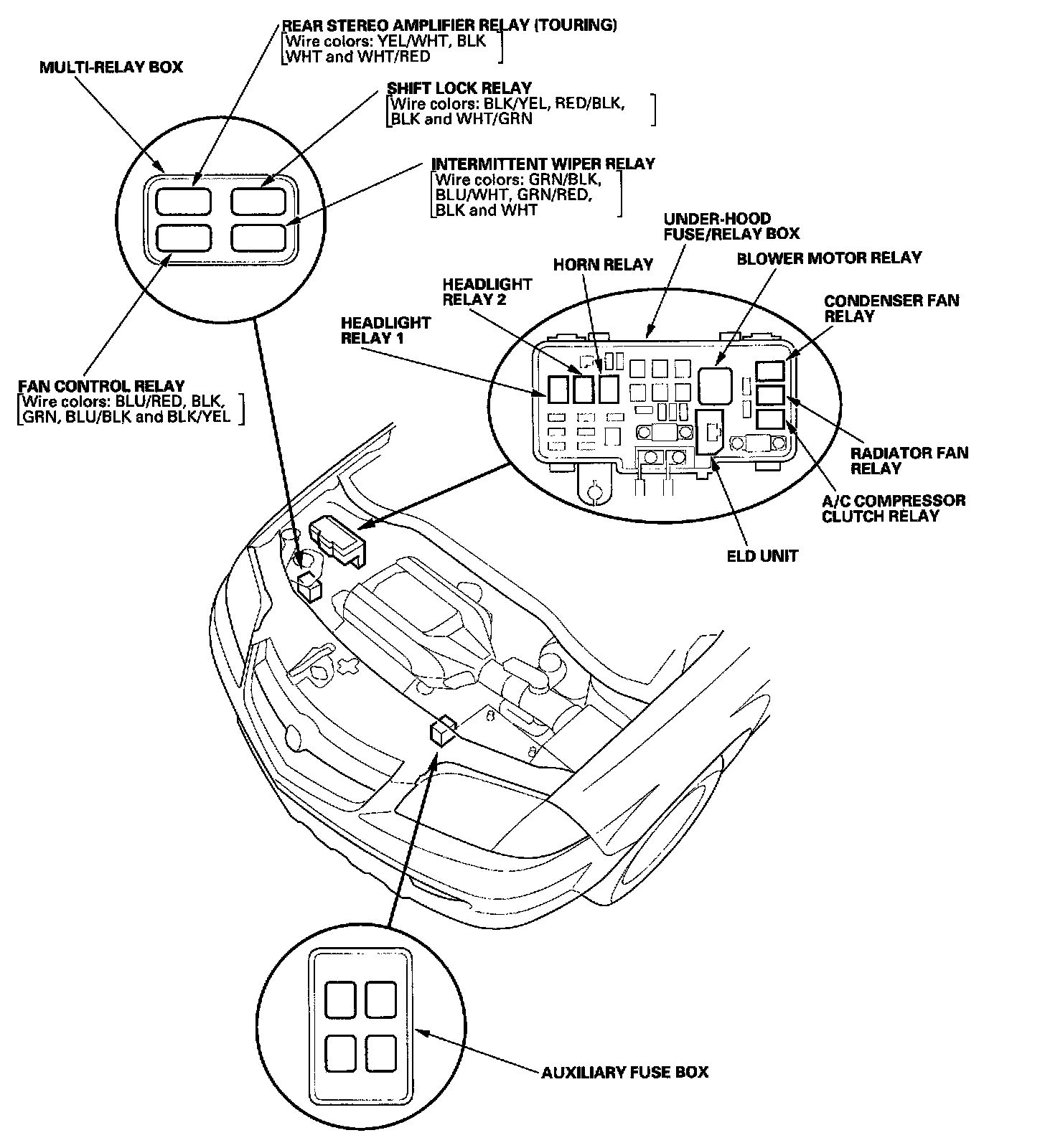

Relay And Control Unit Locations - Engine Compartment:

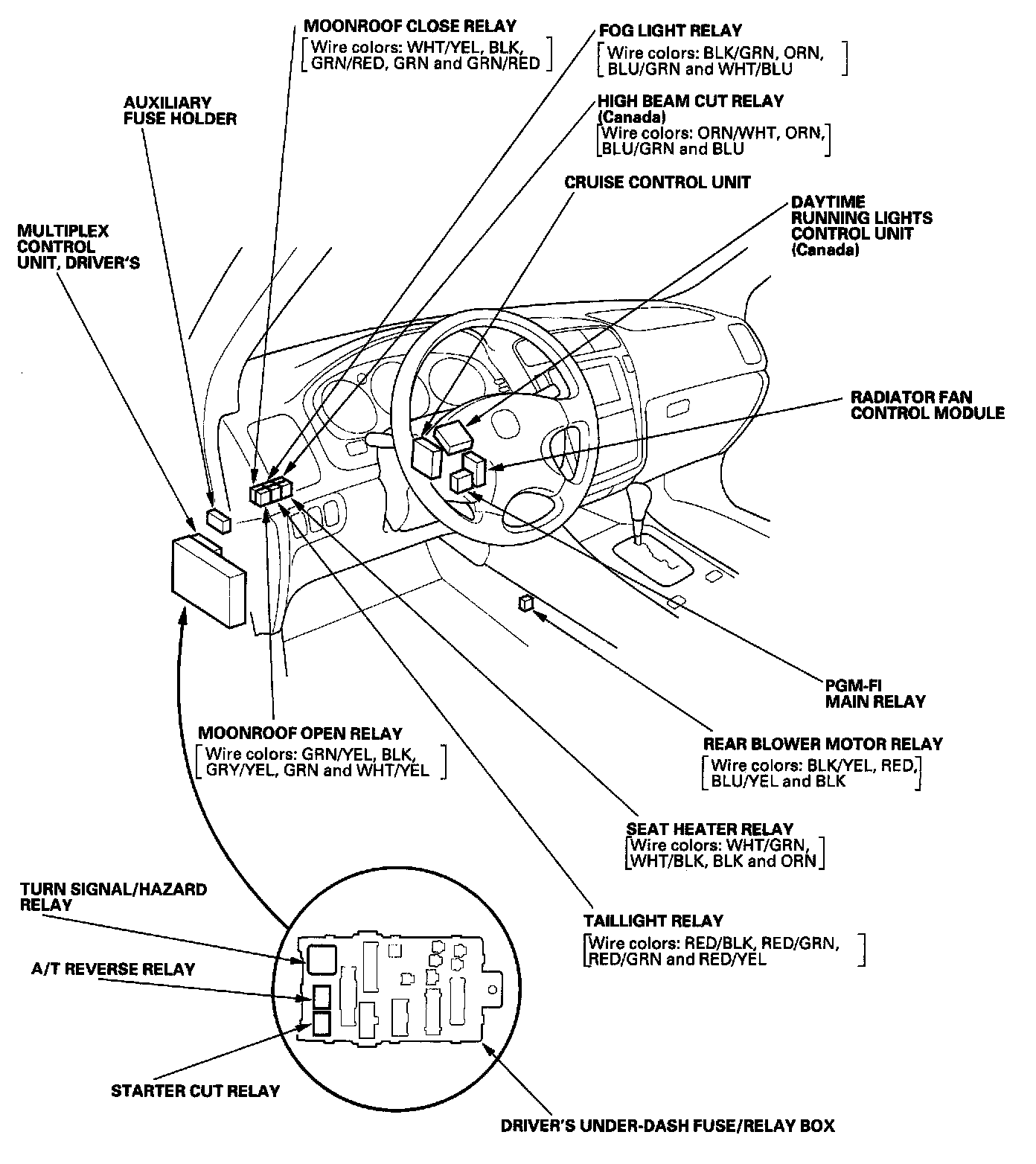

Relay And Control Unit Locations - Dashboard Part 1:

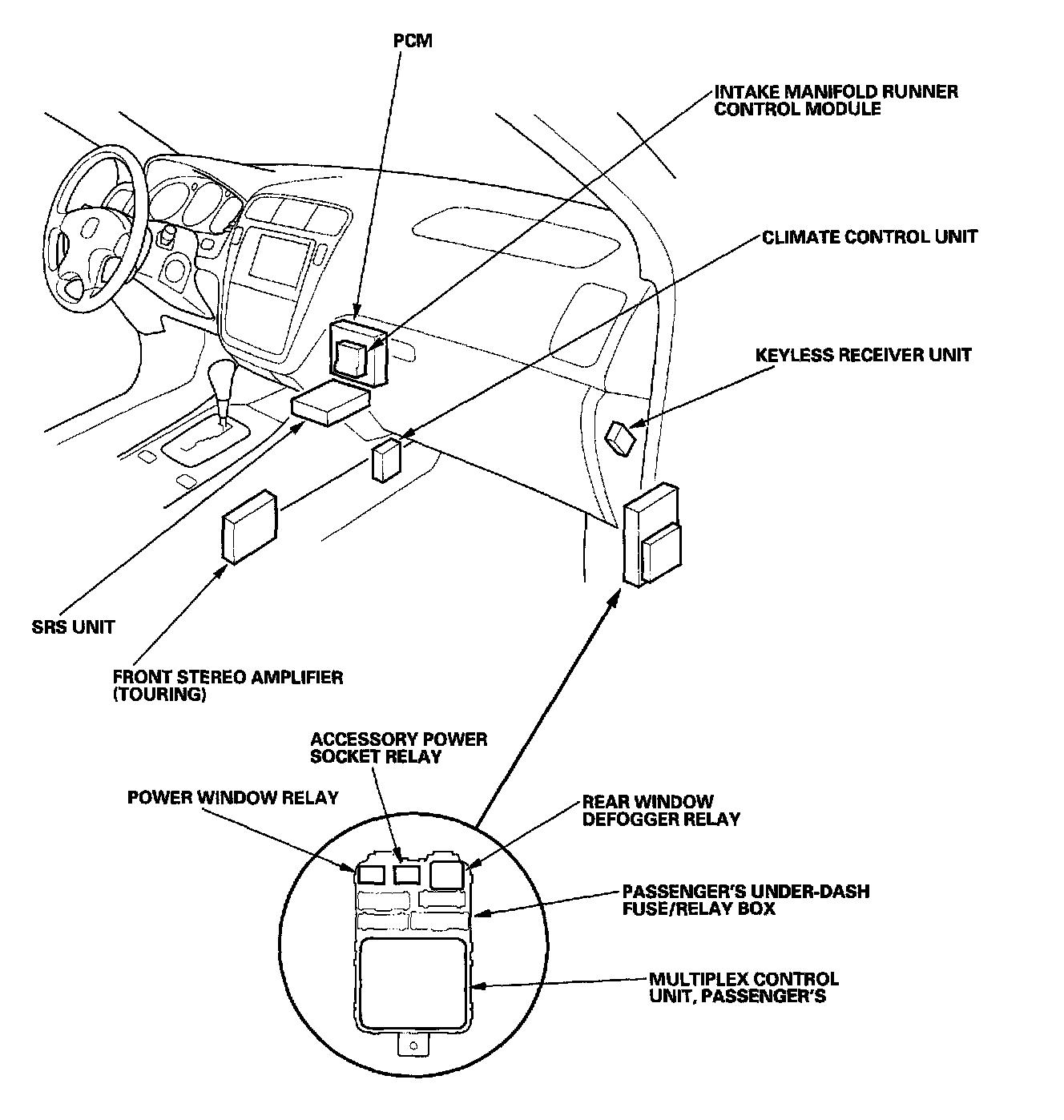

Relay And Control Unit Locations - Dashboard Part 2:



Relay And Control Unit Locations - Dashboard Part 3:
