Engine Ground Cable
Engine Ground Cable

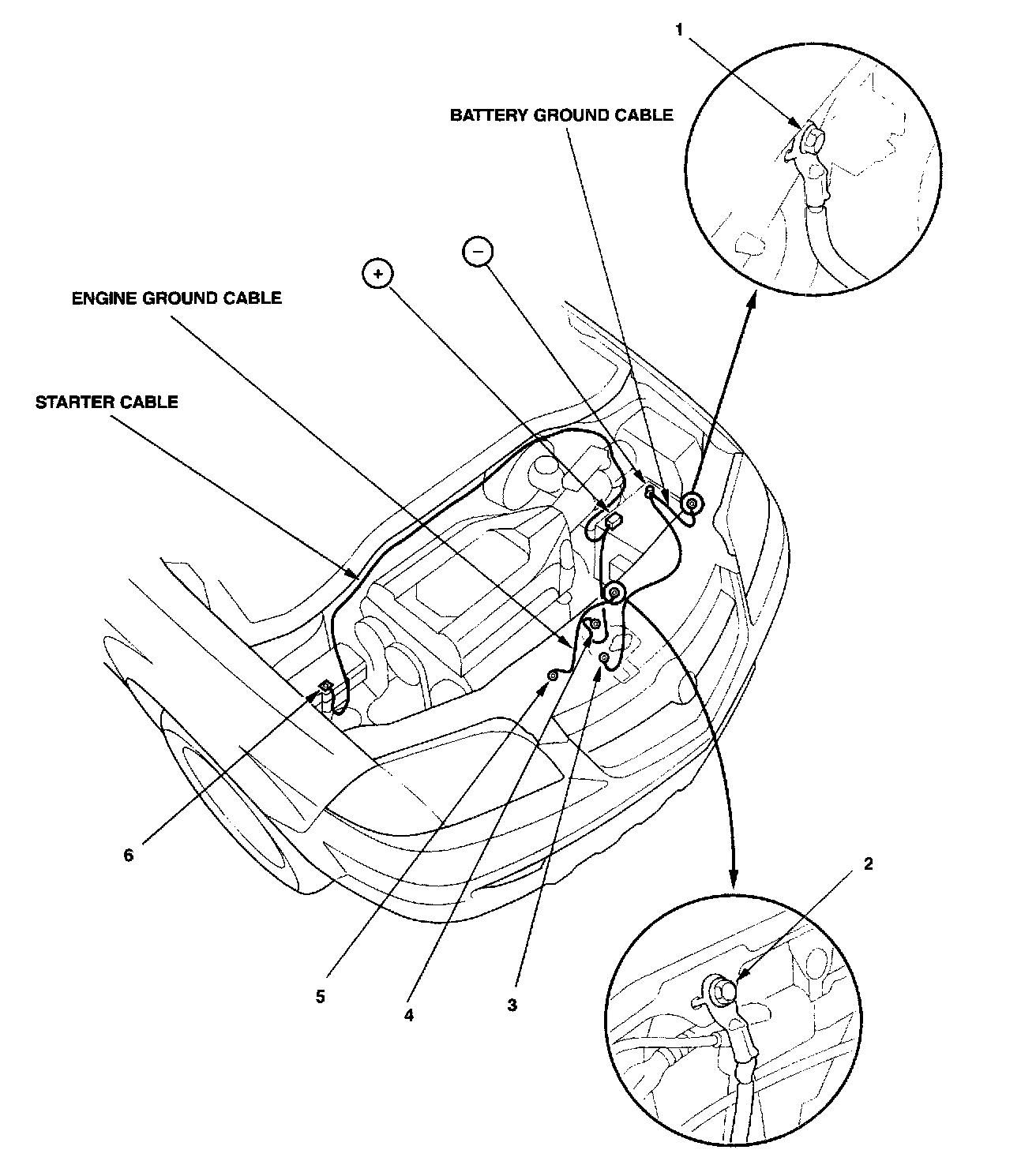

Battery Ground/Engine Ground/Starter Cable - View Image 0:

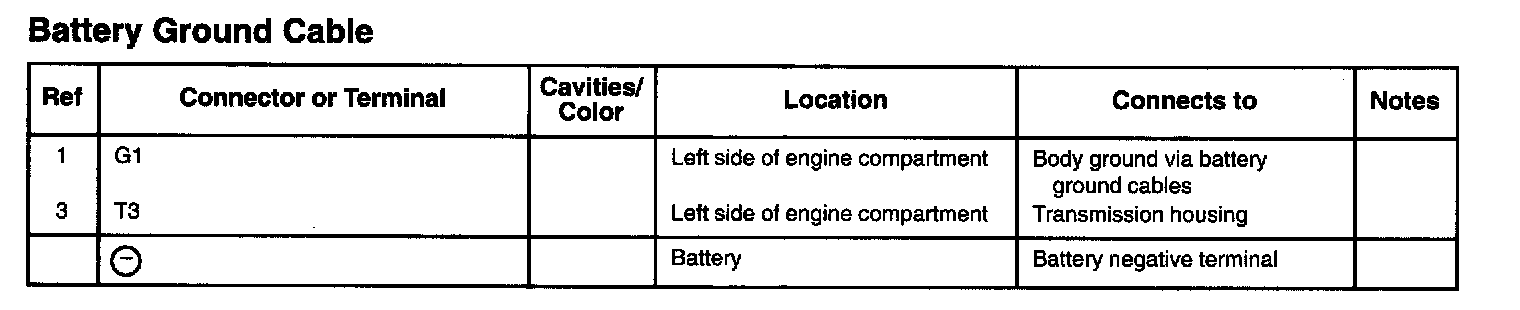

Battery Ground Cable - Index Image 1a:
