MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Circuit 16
Circuit 16

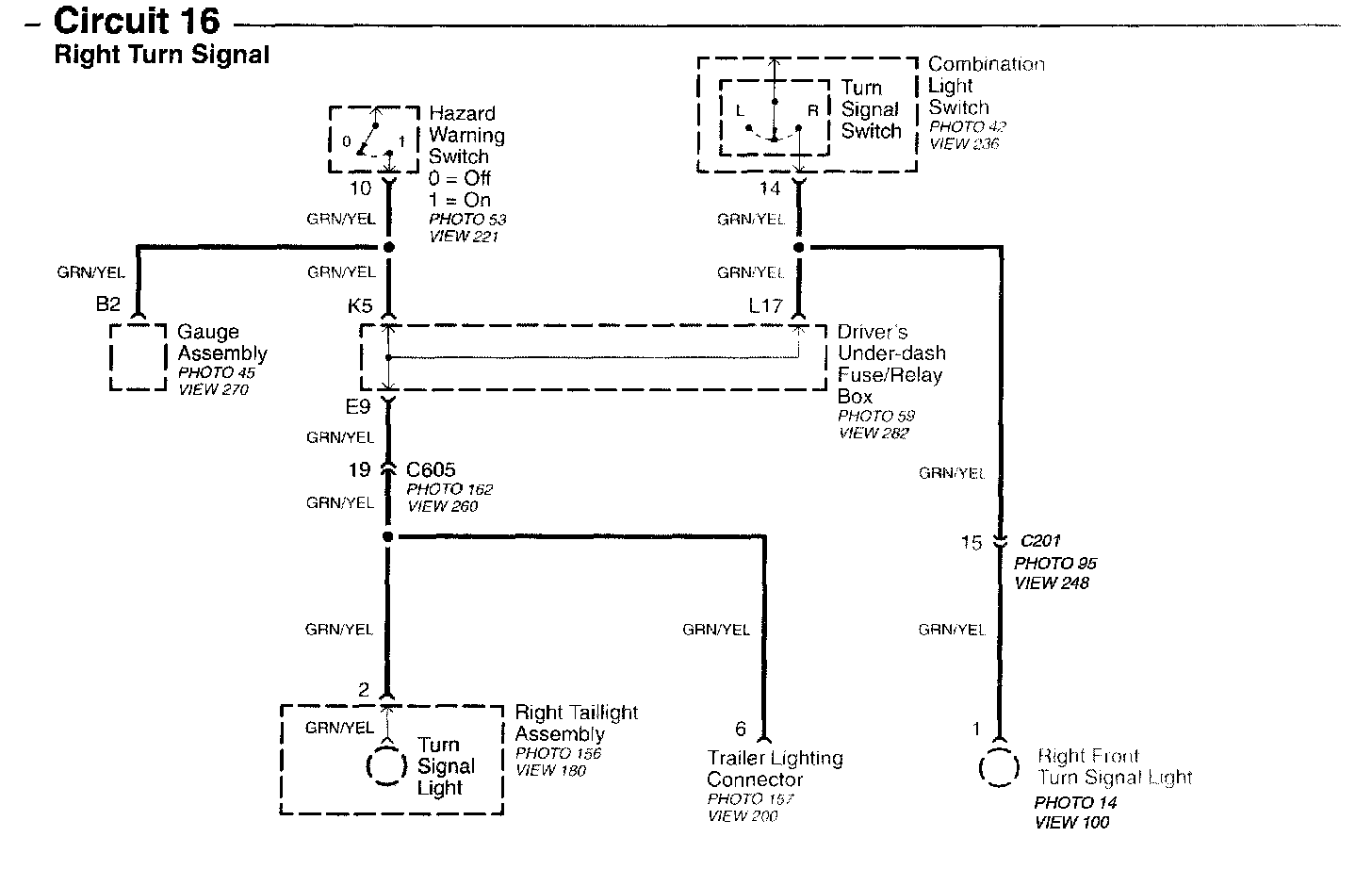

Circuit 16 - Right Turn Signal Image 15-4a:
