Home
>>
Acura
>>
2002
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Circuit 36
Circuit 36

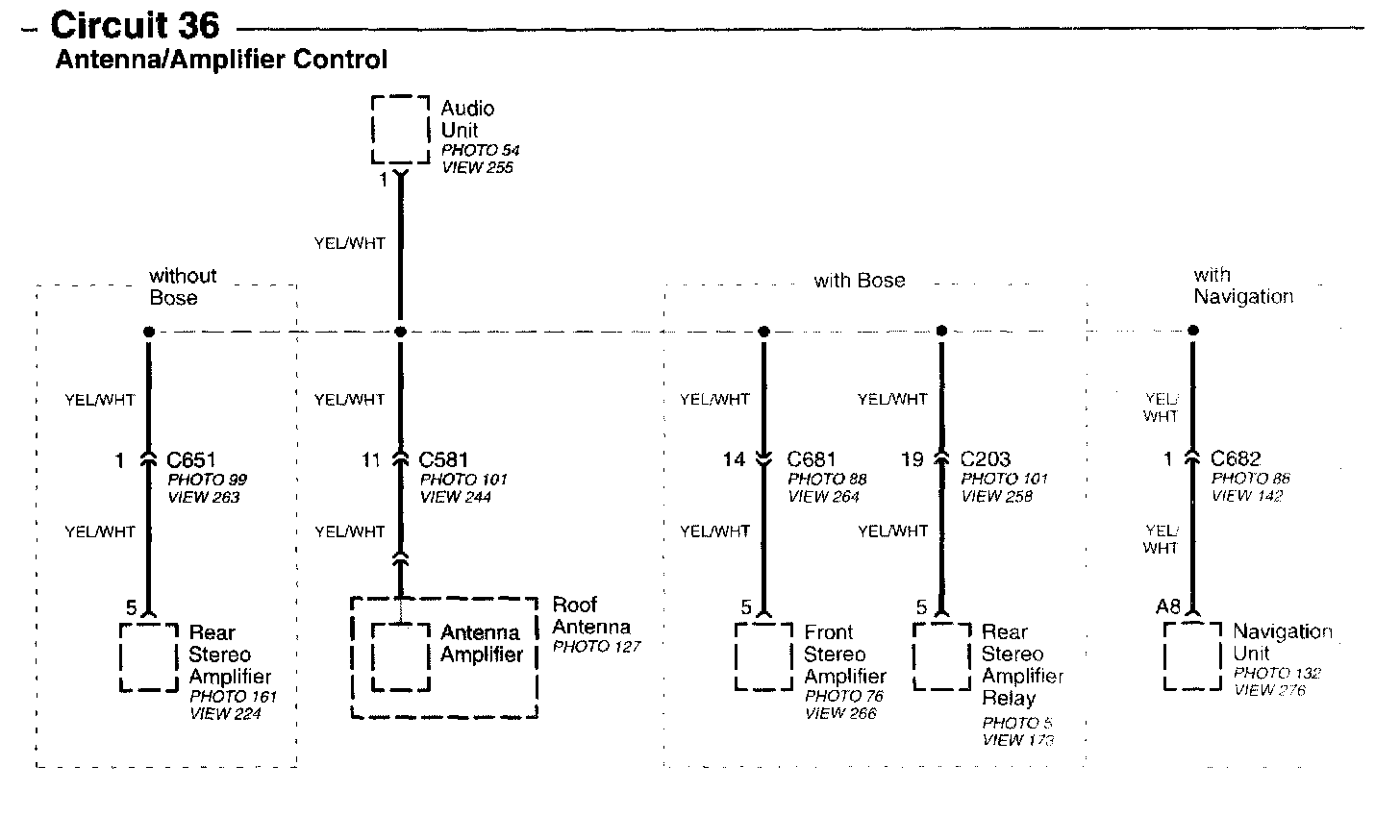

Circuit 36 - Antenna/Amplifier Control Image 15-6a:
