Home >> Acura >> 2002 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Locations >> Splice Locations >> Circuit F44

Circuit F44

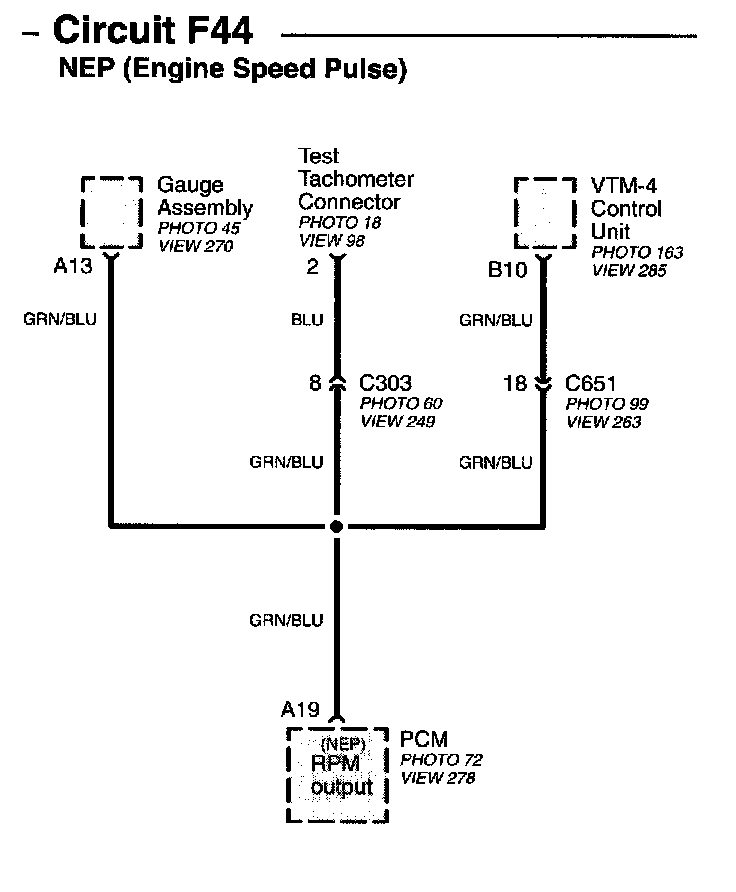

Circuit F44 - NEP (Engine Speed Pulse) Image 15-11a:
