Maintenance Required Lamp/Indicator: Testing and Inspection

Maintenance Required Indicator Reset Procedure

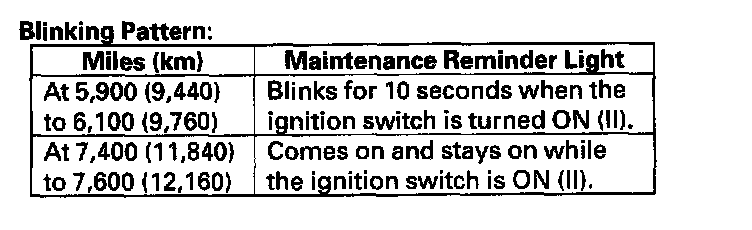

Blinking Pattern:




How to Reset:
Push the select switch and reset switch at the same time, turn the ignition switch ON (II), and hold them more than 10 seconds.
