Connector Views

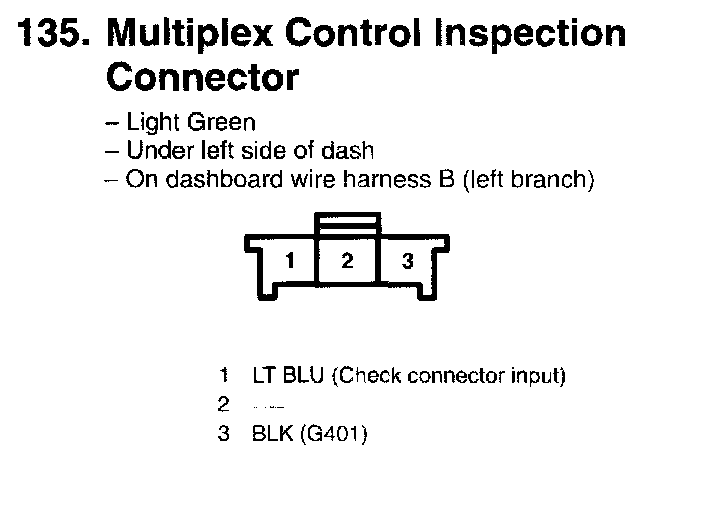

135. Multiplex Control Inspection Connector:

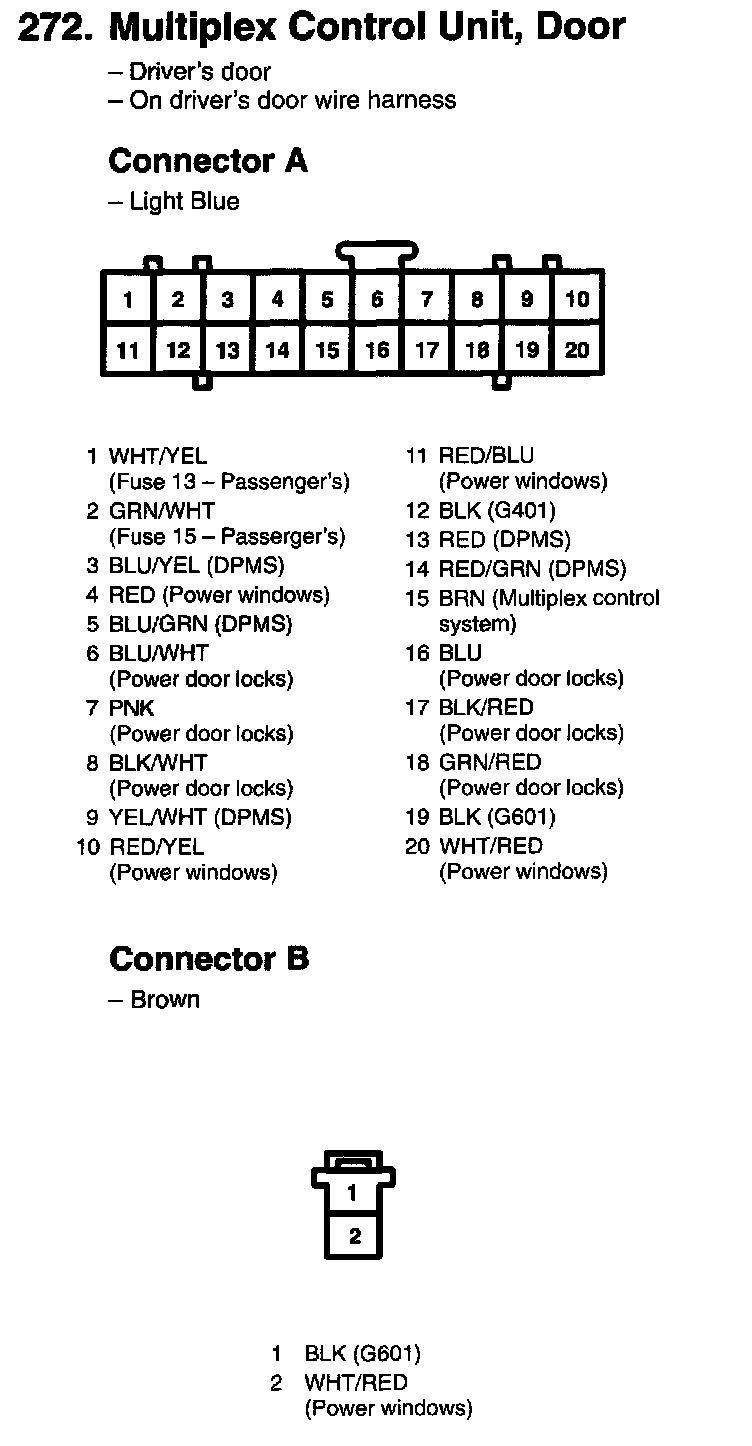

272. Multiplex Control Unit, Door:

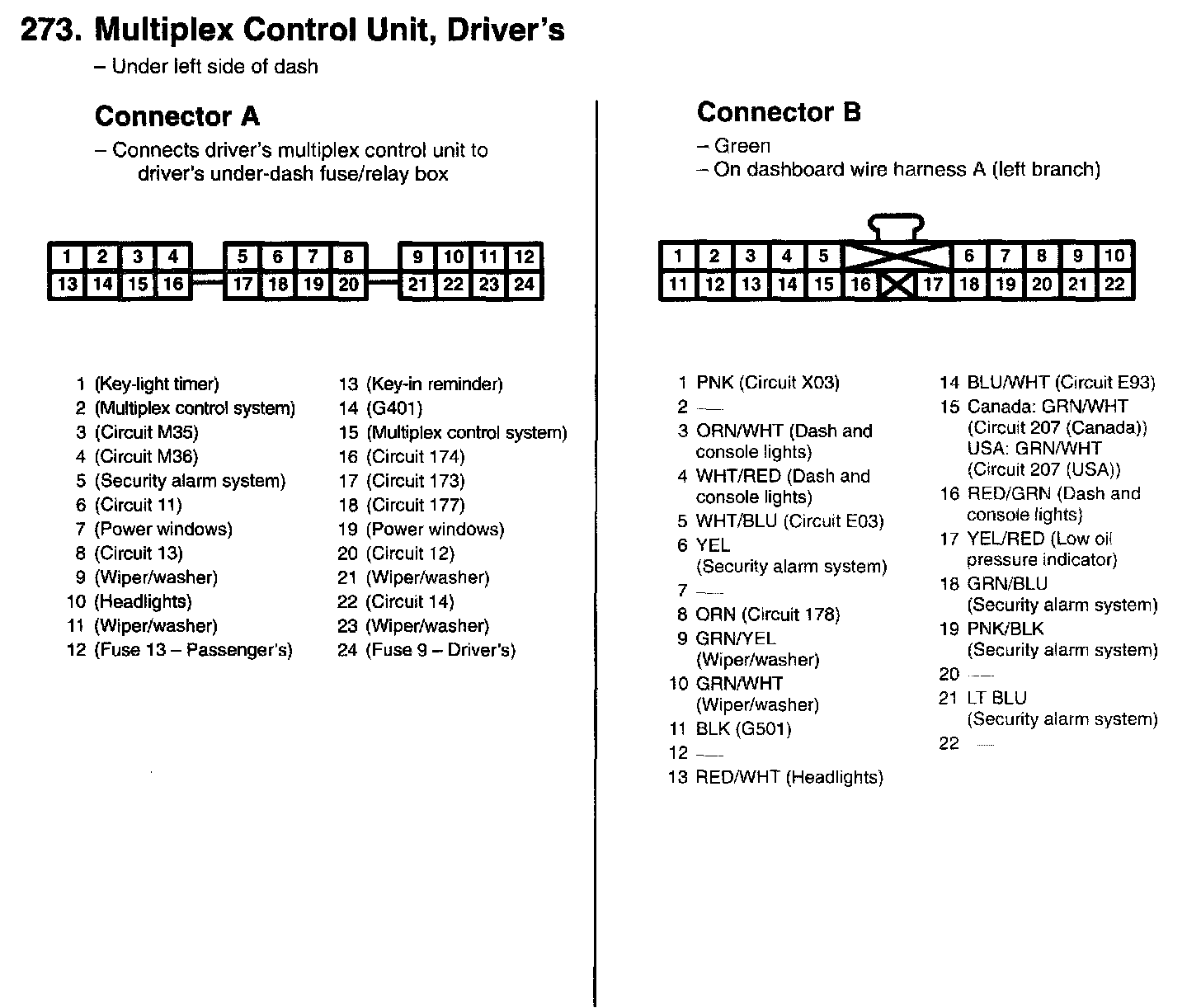

273. Multiplex Control Unit, Driver's:

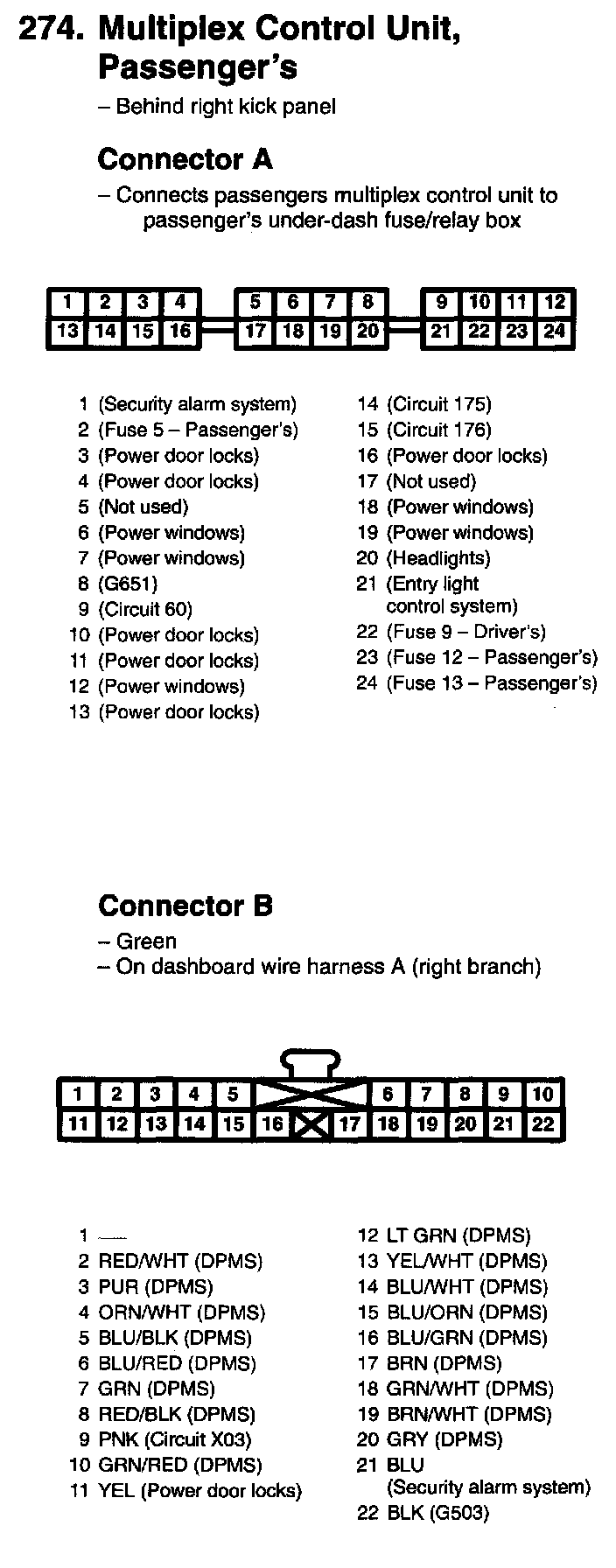

274. Multiplex Control Unit, Passenger's:
