Ignition Coil: Service and Repair

Ignition Coil Removal/Installation

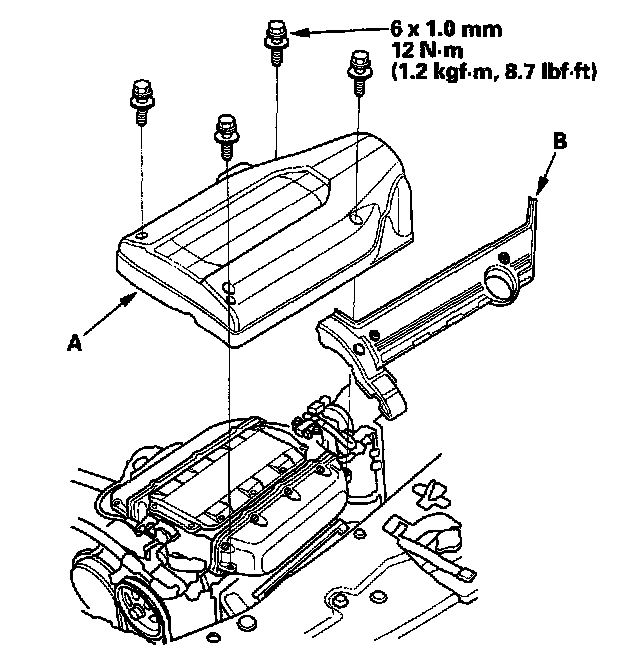

1. Remove the intake manifold cover (A) and ignition coil cover (B).

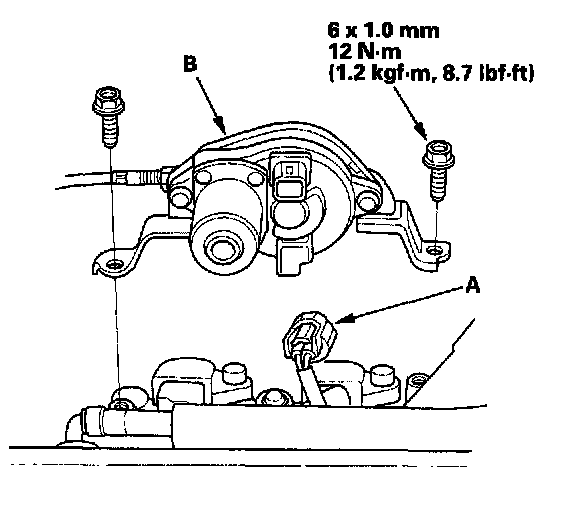

2. Disconnect the intake manifold runner control (IMRC) actuator connector (A), then remove the IMRC actuator (B).

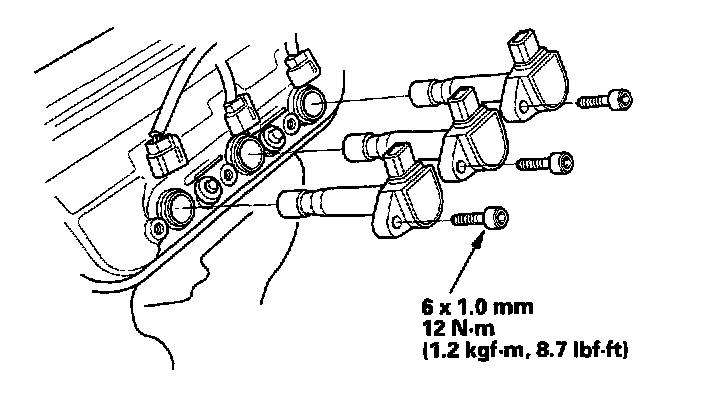

3. Remove the ignition coils.
4. Install the ignition coils in the reverse order of removal.
