Hood Switch
Keyless Entry/Security Alarm SystemHood Switch Test 1.
Open the hood.
2.

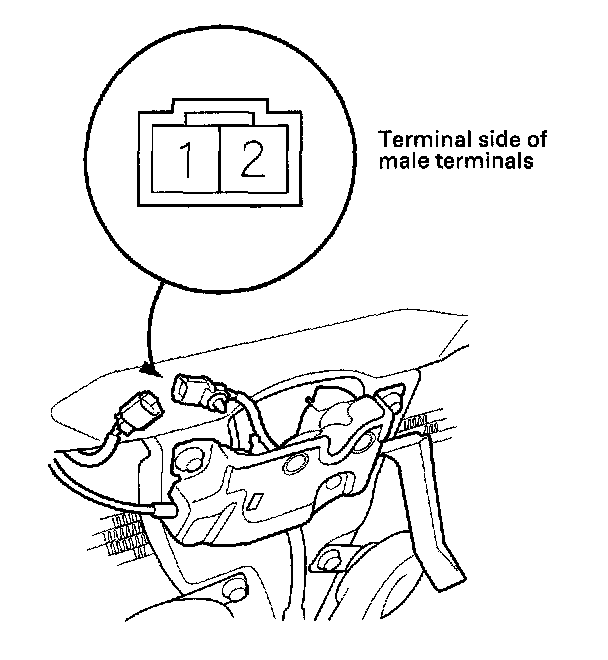

Disconnect the 2P connector from the hood switch.
3.

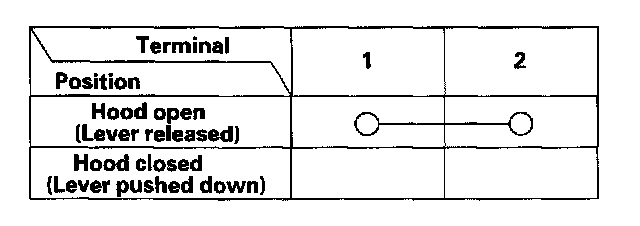

Check for continuity between the terminals in each switch position according to the table.
4.
If the continuity is not as specified, replace the hood switch.
