Navigation Module: Locations

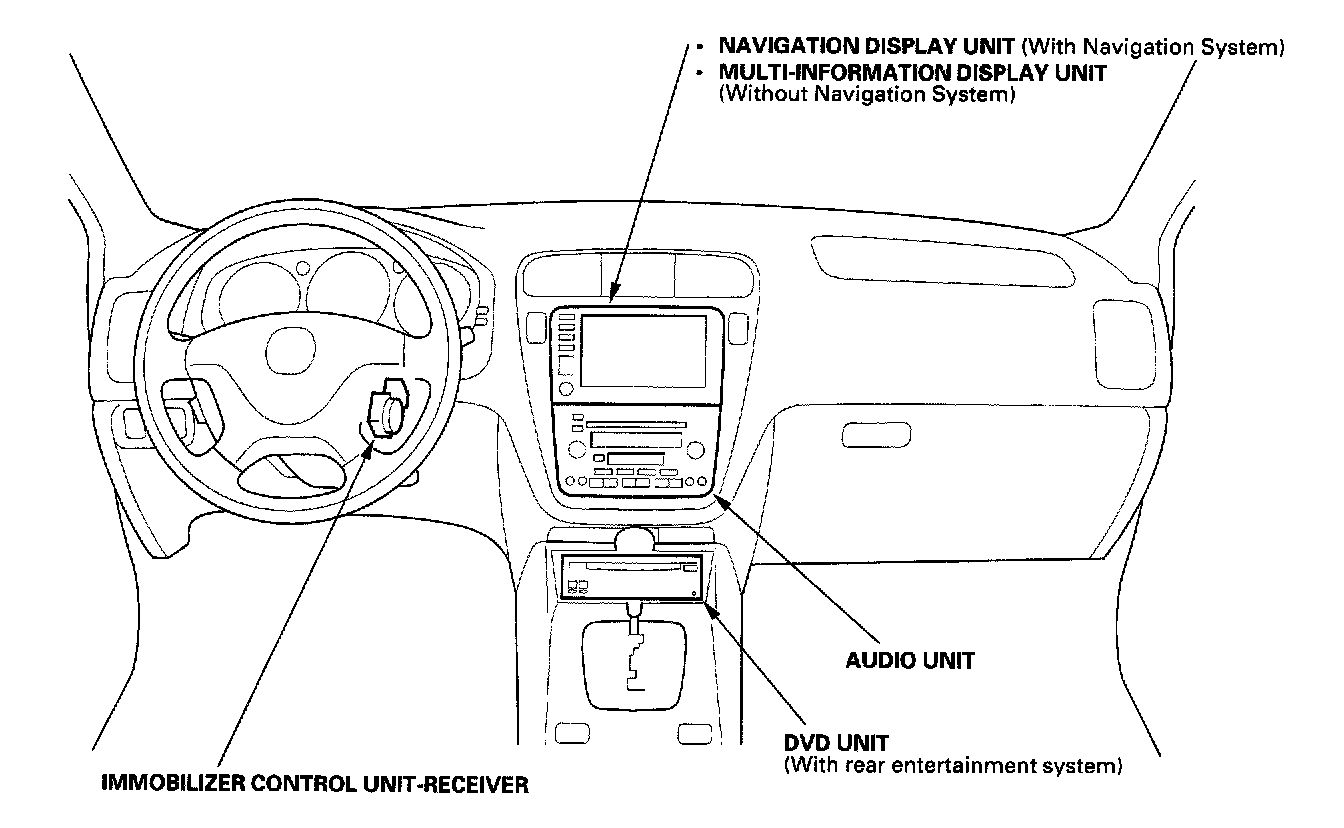

Dashboard - Relay And Control Unit Locations:

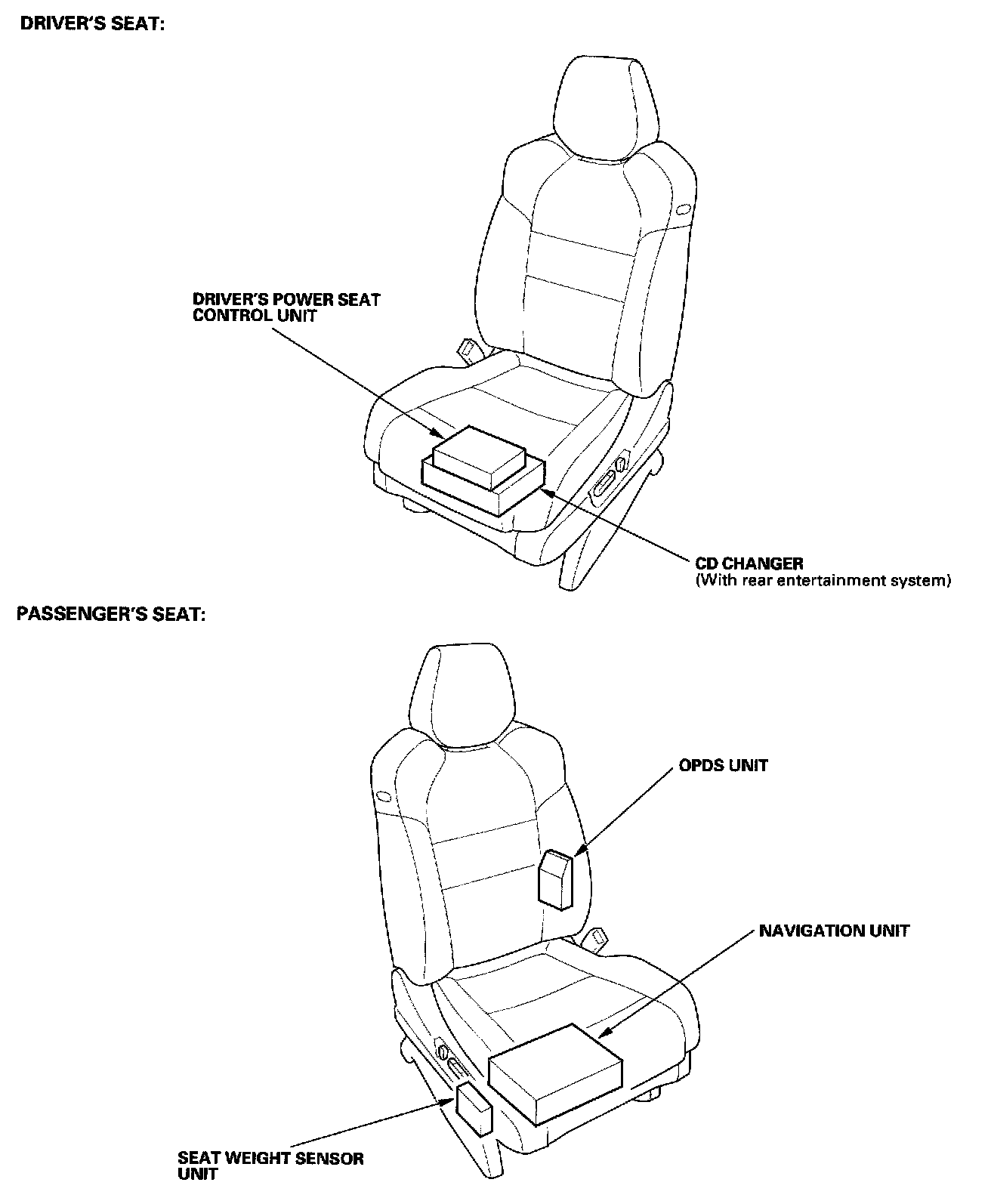

Seats - Relay And Control Unit Locations:

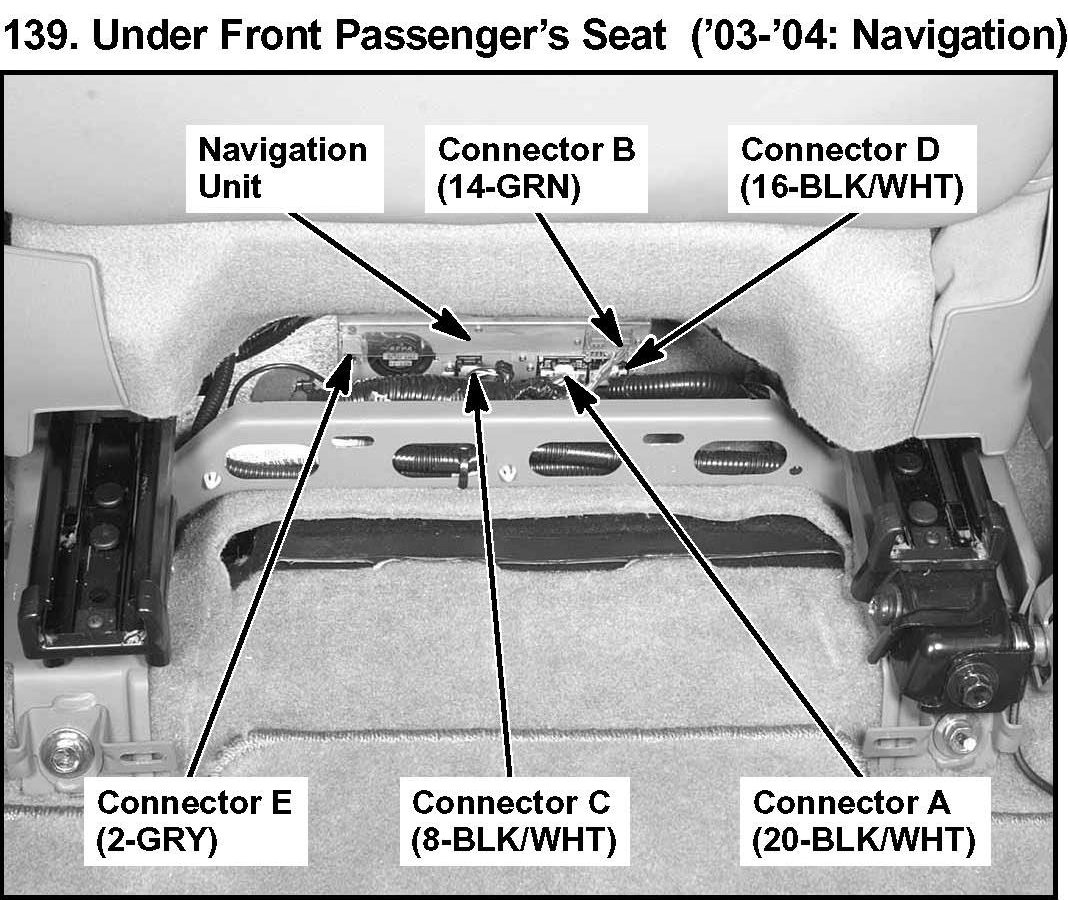

139. Under Front Passenger's Seat ('03-'04: Navigation):
