Keyless Entry: Locations

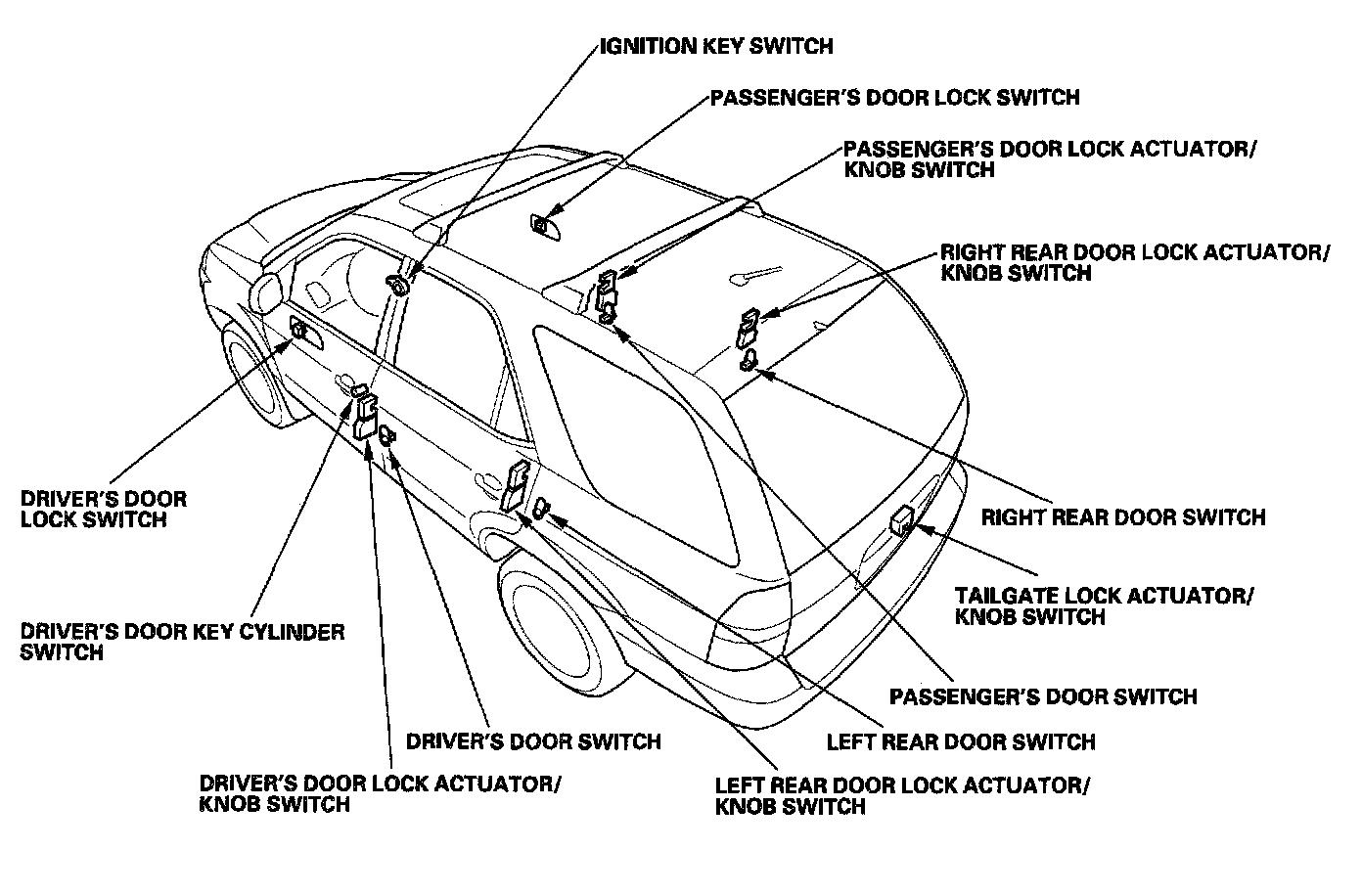

Keyless Entry/Security Alarm System - Component Location Index Part 1:

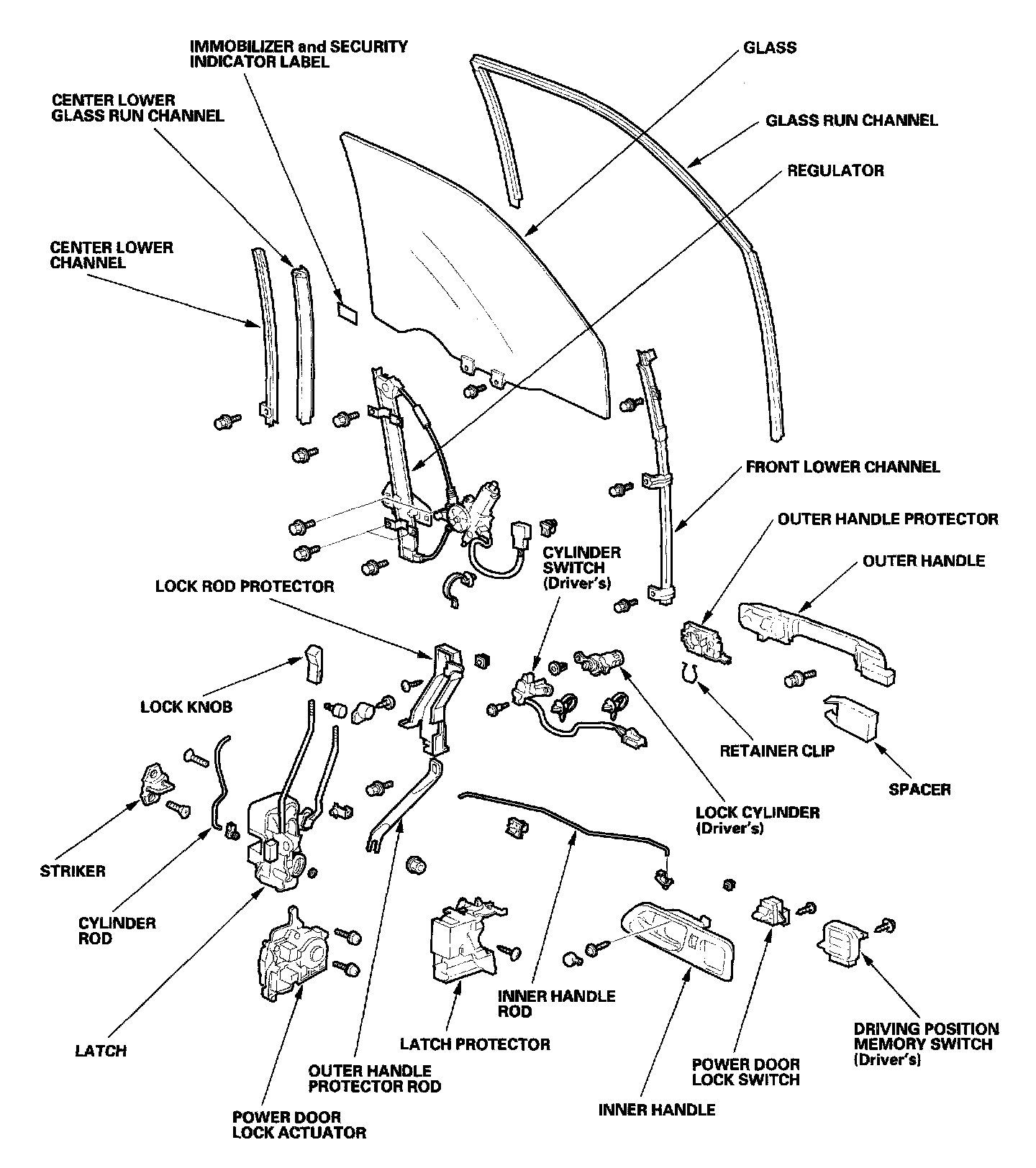

Doors - Component Location Index (Front Door):
