Programming and Relearning

VSA Pressure Sensor Neutral Position Memorization

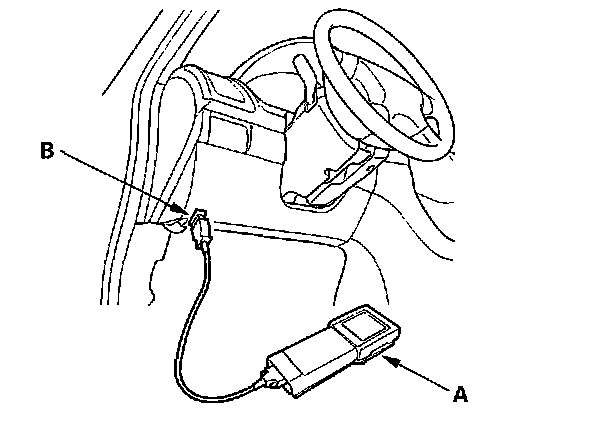

1. With the ignition switch OFF, connect the Honda PGM Tester (A) or HDS to the 16P Data Link Connector (DLC) (B) under the driver's side of the dashboard.
2. Short the SCS circuit to body ground using the Honda PGM Tester or HDS.
3. Turn the ignition switch ON (II).
4. The ABS indicator comes on for 2 seconds and goes off.
5. After the ABS indicator goes off, push the VSA OFF switch once within 2 seconds.
6. After the ABS indicator comes on, push the VSA OFF switch once within 2 seconds.
7. The VSA activation indicator blinks, and the system starts pressure sensor neutral position memorization.
8. When the ABS indicator, VSA system indicator and VSA activation indicator go off, the memorizing is done. If the indicators do not go off, retry these steps.
