Component Tests and General Diagnostics

Cruise Control Input Test

1. Connect the Honda PGM tester of the HDS to the Data Link Connector (DLC).
2. Turn the ignition switch ON (II).

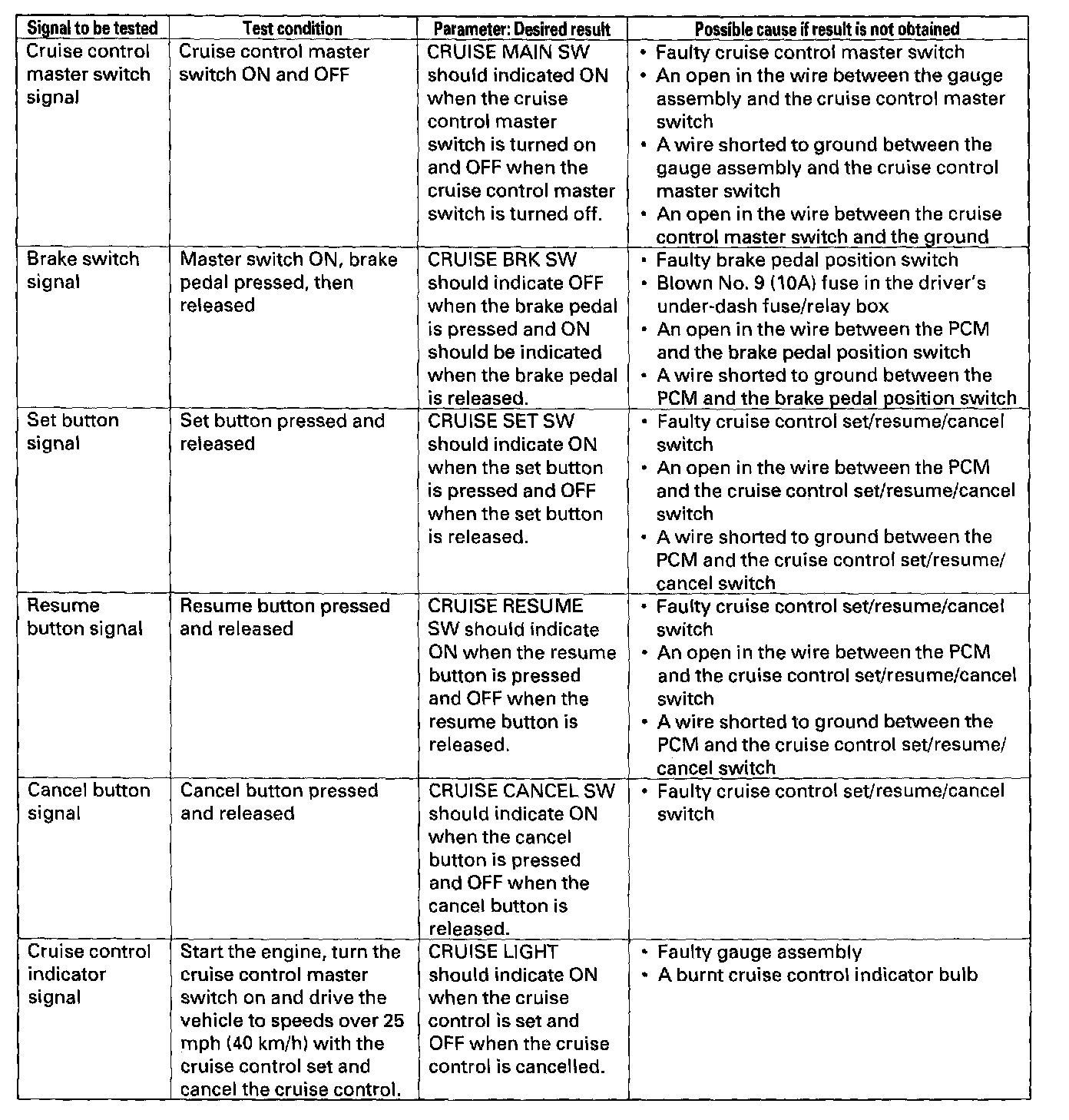

3. Perform the above tests while monitoring parameters in the PGM-FI DATA LIST.
