Symptom Related Diagnostic Procedures

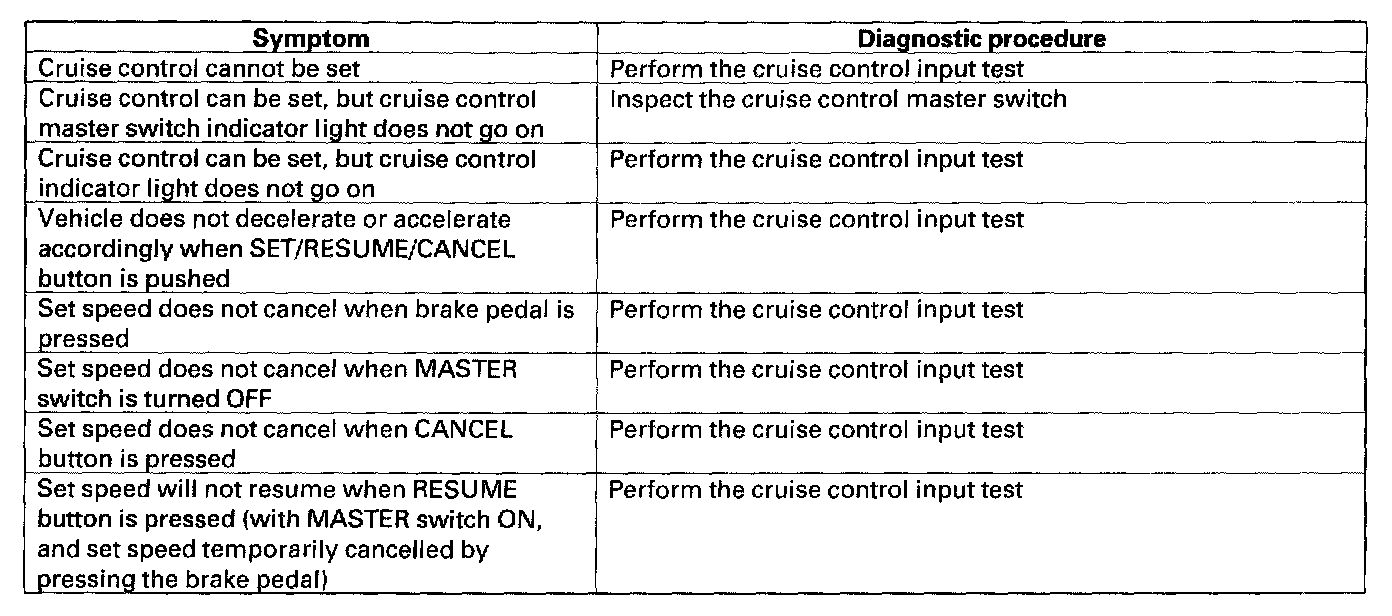

Symptom Troubleshooting Index






NOTE:
Before troubleshooting.
- Check the No.47 (20 A) fuse in the under-hood fuse, relay box, and the No. 9 (10 A) fuse in the driver's under-dash fuse/relay box.
- Check that the horn sounds.
- Check the speedmeter to see if it works properly.
