Acura
>>
2003
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Dash Board
Dash Board

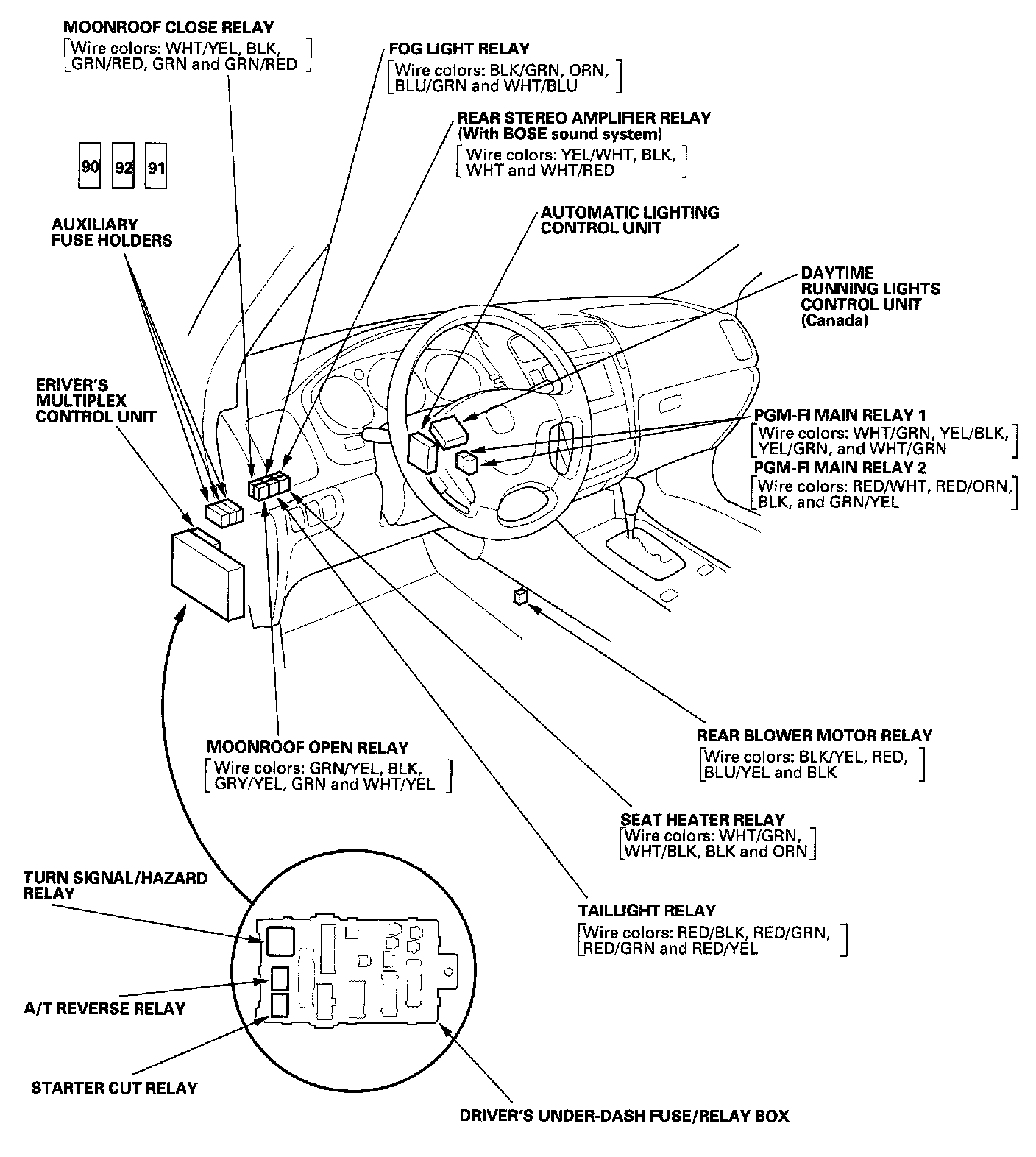

Dashboard - Relay And Control Unit Locations:
