Home
>>
Acura
>>
2003
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

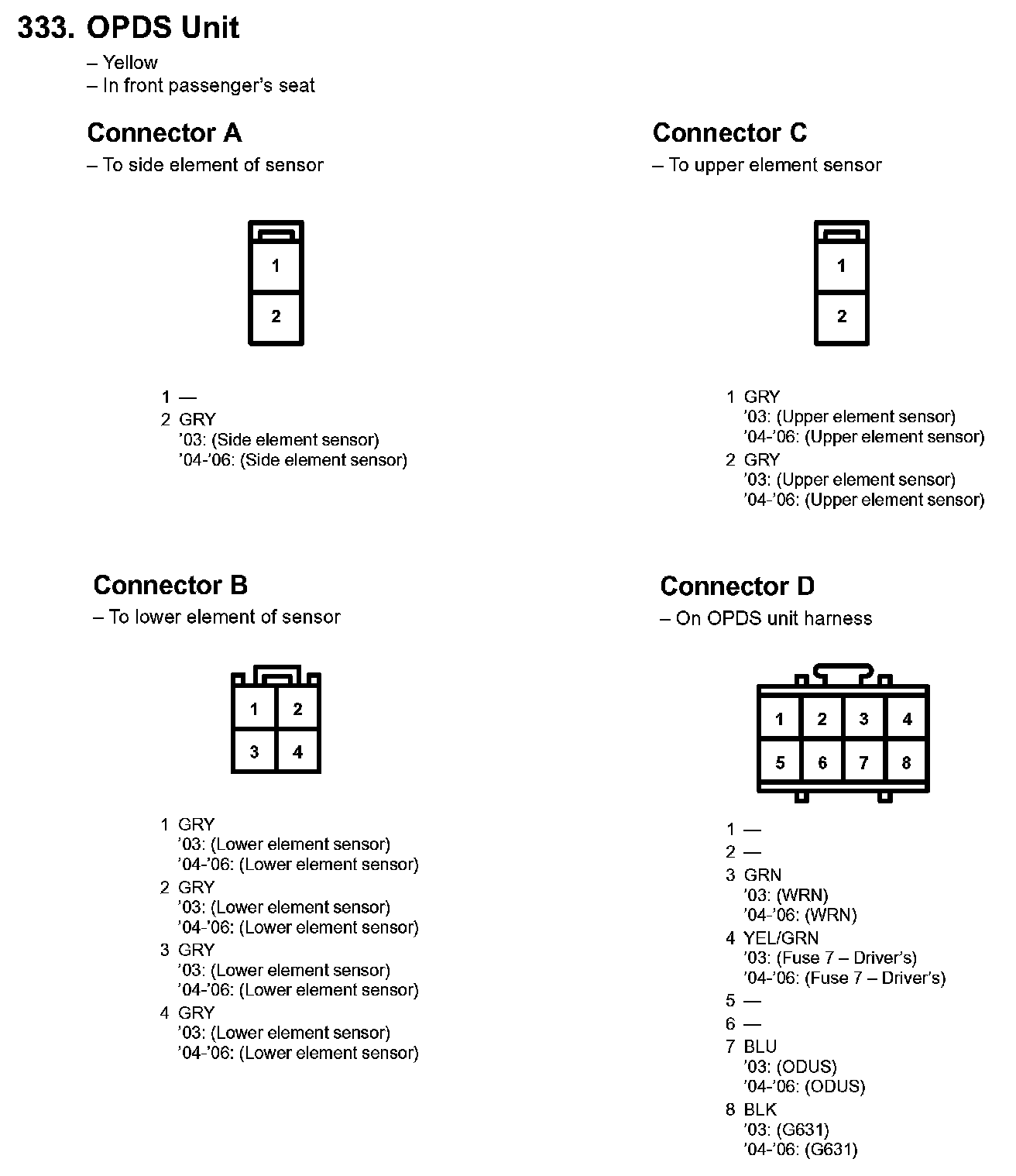

333. OPDS Unit:

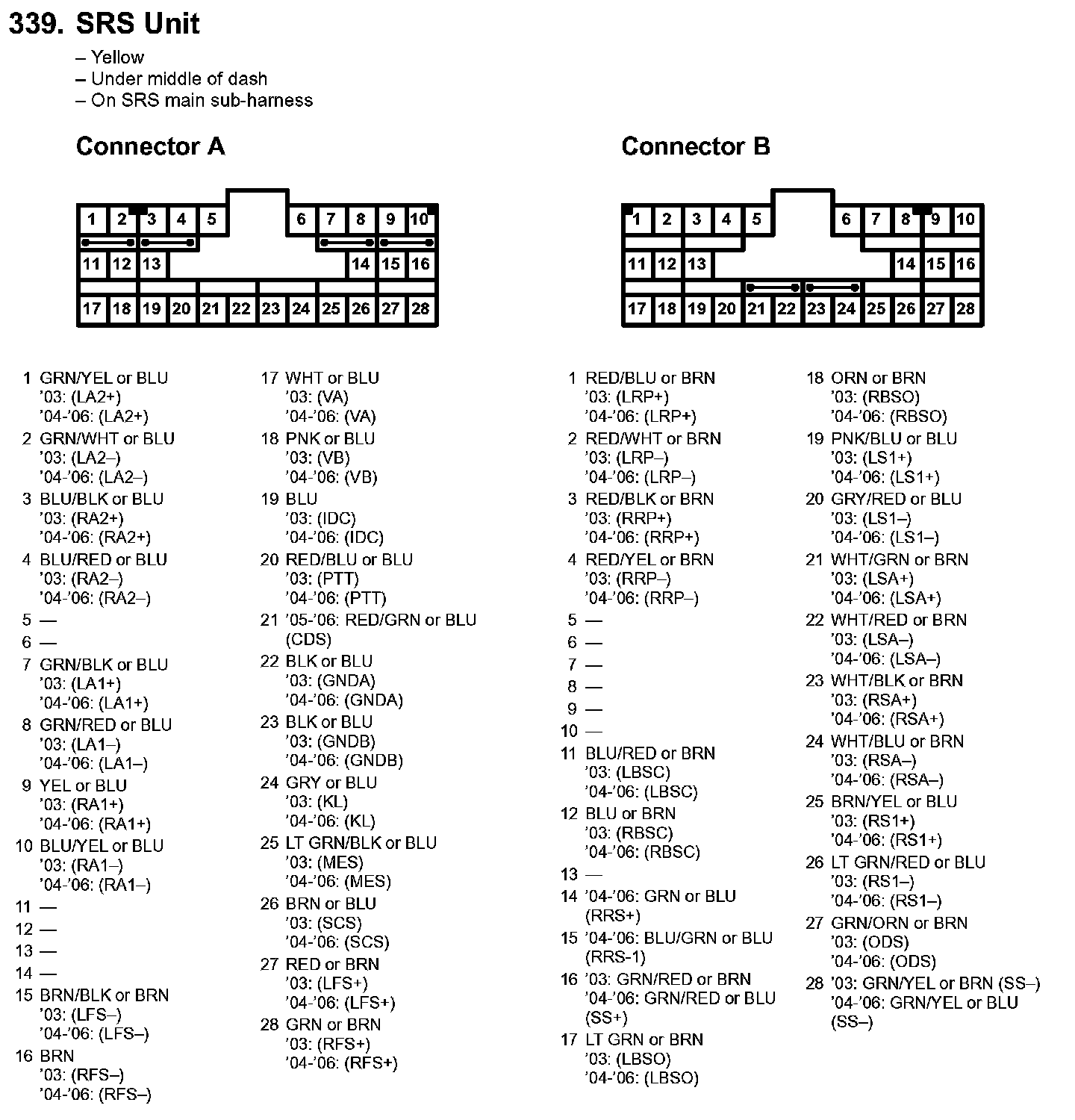

339. SRS Unit:

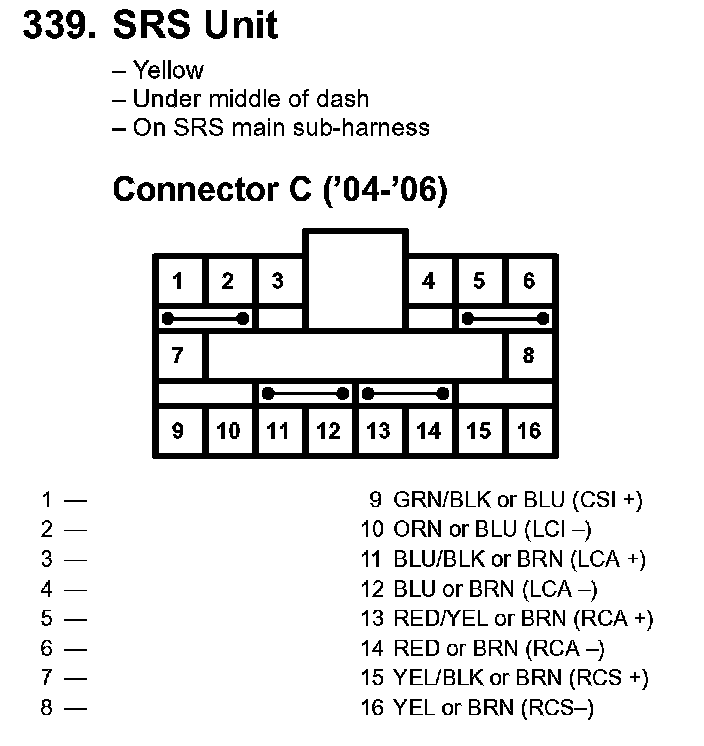

339. SRS Unit:
