Home >> Acura >> 2003 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 301-325 >> 313

View 301-325: 313

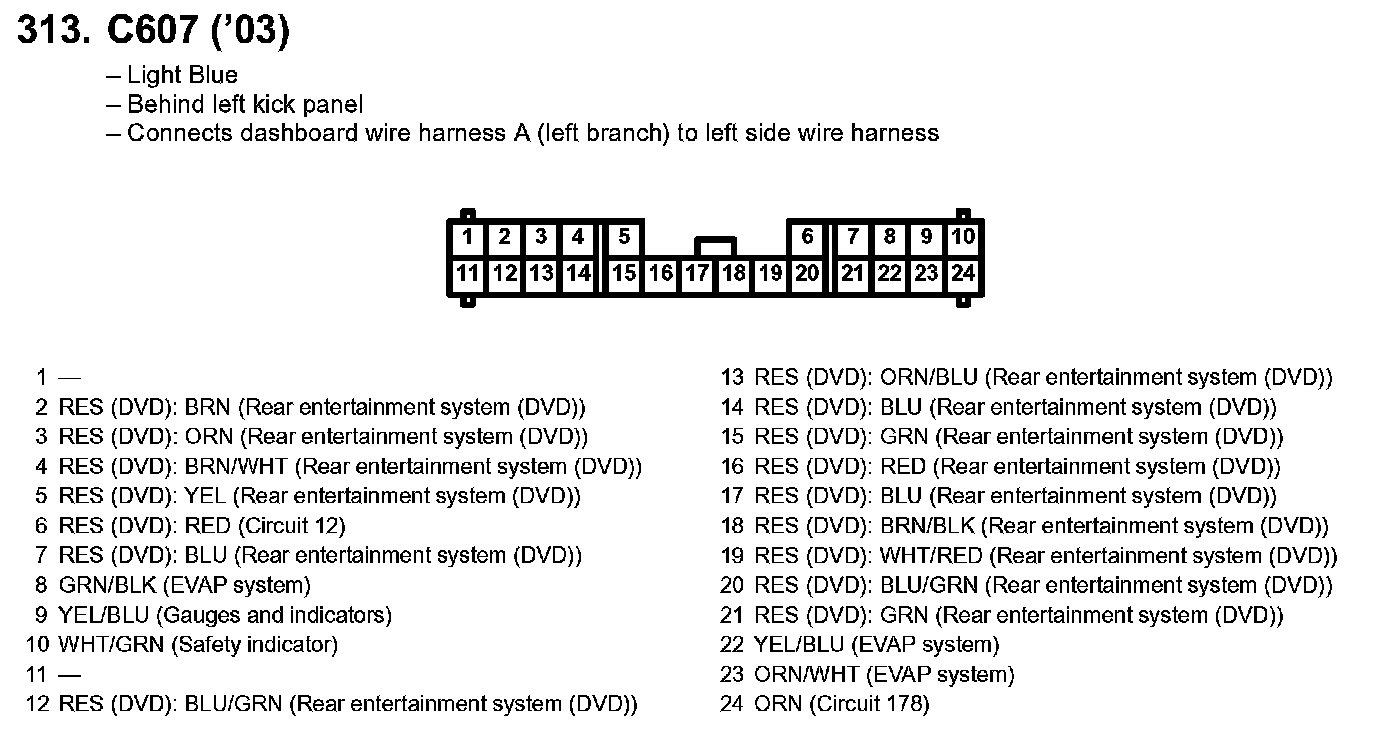

313. C607:
