Fuse
Fuse

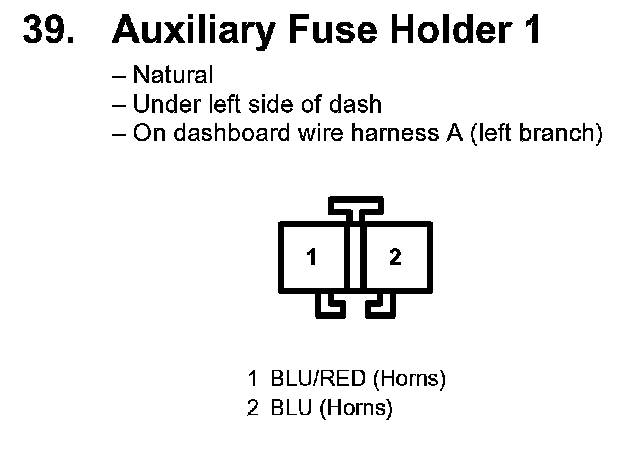

39. Auxiliary Fuse Holder 1:

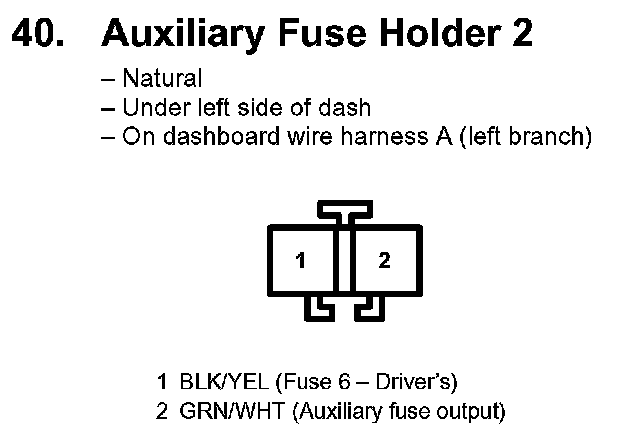

40. Auxiliary Fuse Holder 2:
41. Auxiliary Fuse Holder 3 (Auto Wiper):

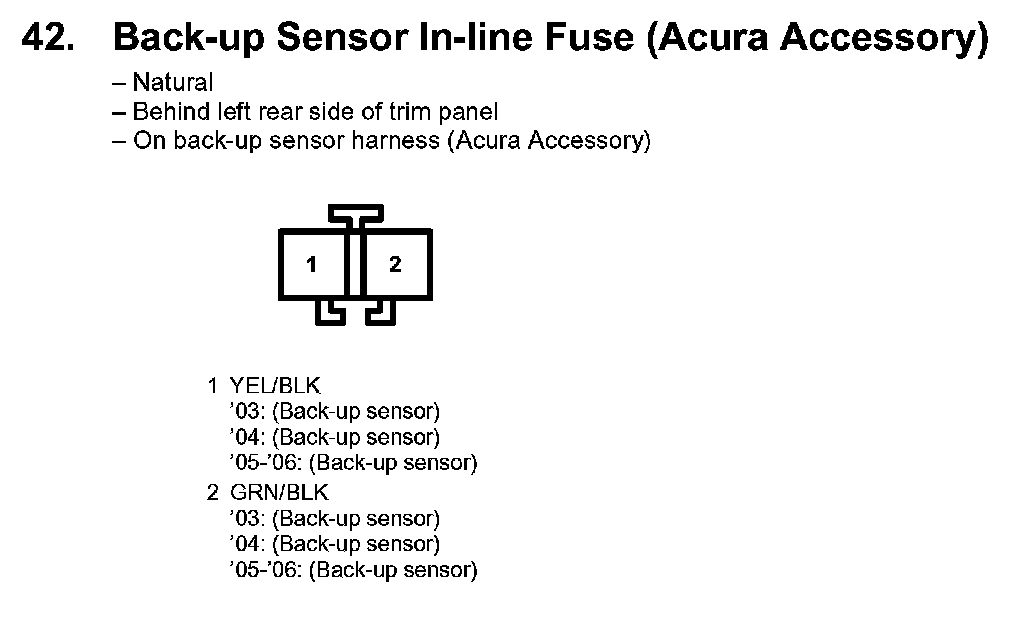

42. Back-up Sensor In-line Fuse (Acura Accessory):
