Impact Sensor
Impact Sensor

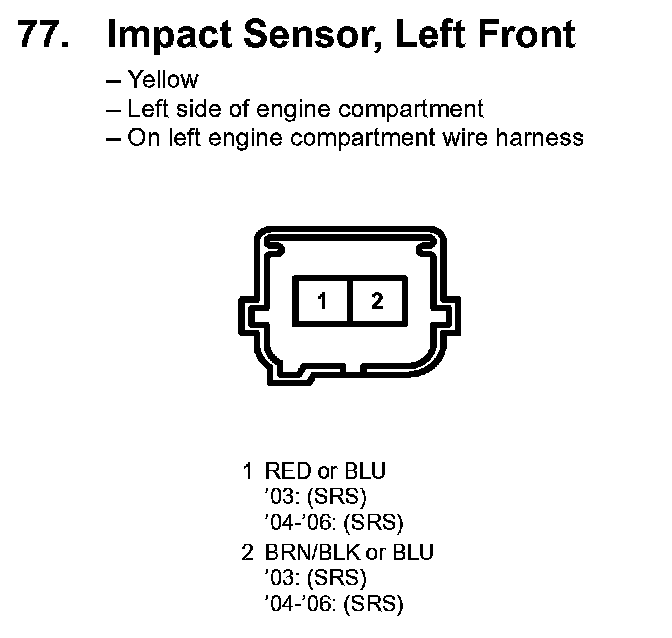

77. Impact Sensor, Left Front:

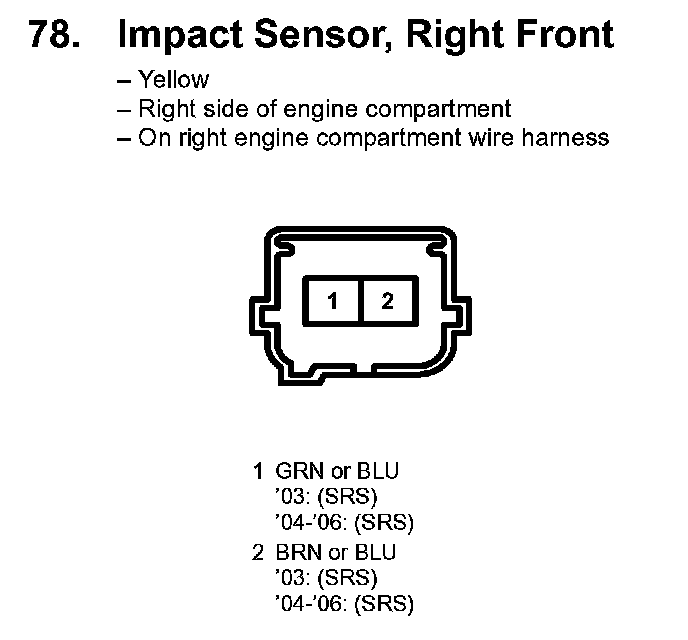

78. Impact Sensor, Right Front:

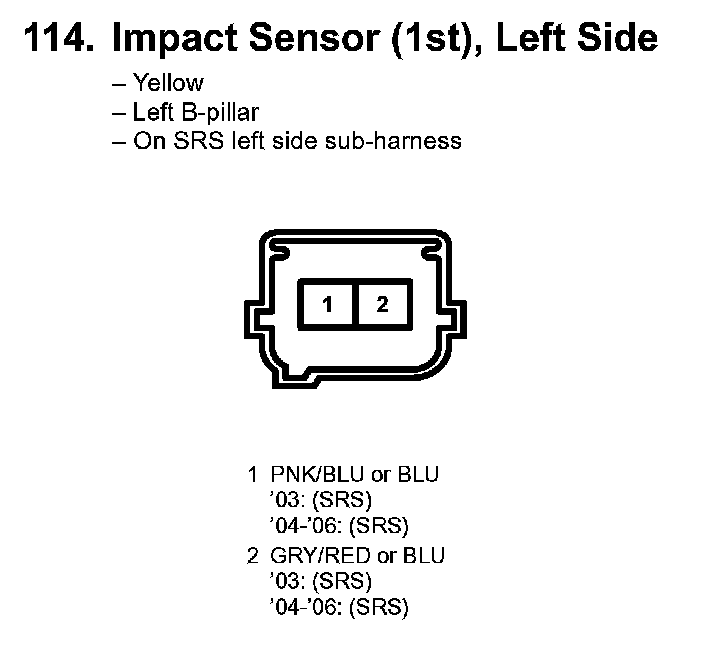

114. Impact Sensor (1st), Left Side:

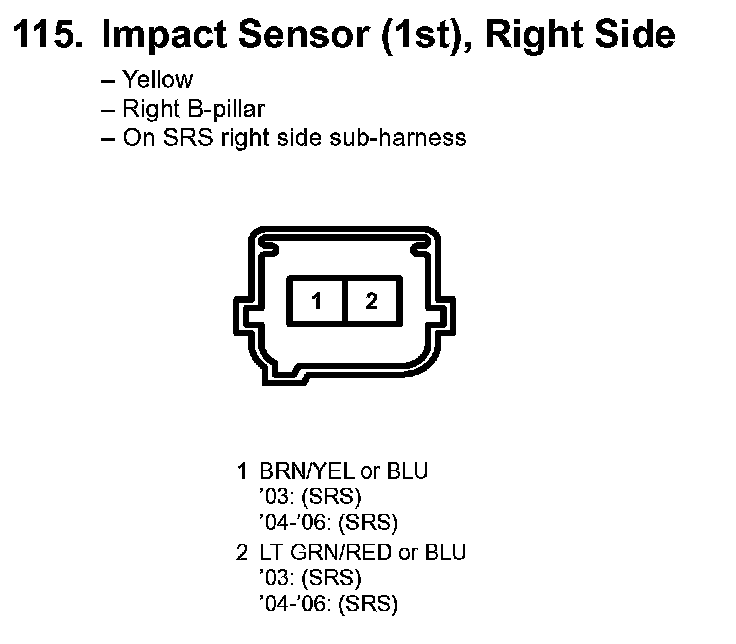

115. Impact Sensor (1st), Right Side:
