Multiple Junction Connector
Multiple Junction Connector
300. C501 (Junction Connector):
301. C685 (Junction Connector) ('03: Navigation):

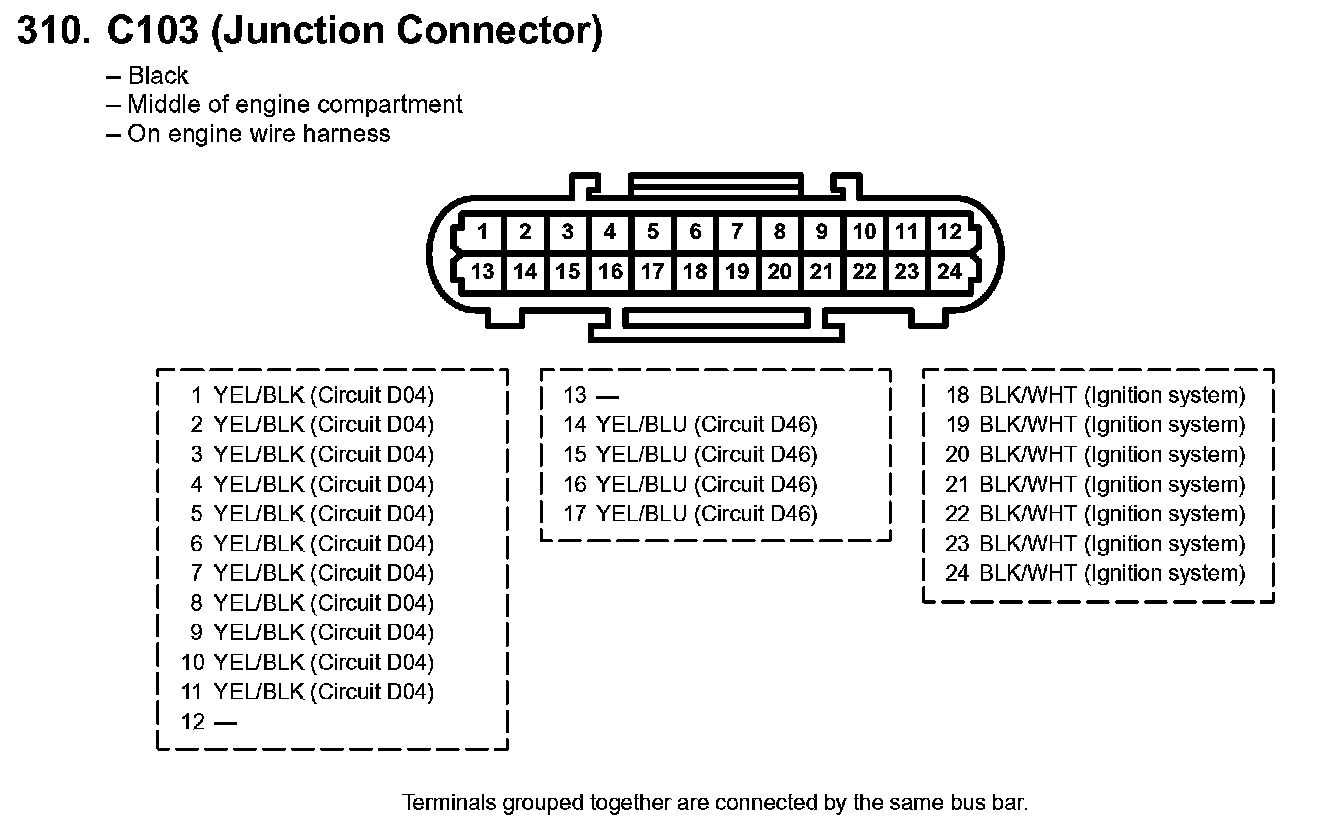

310. C103 (Junction Connector):

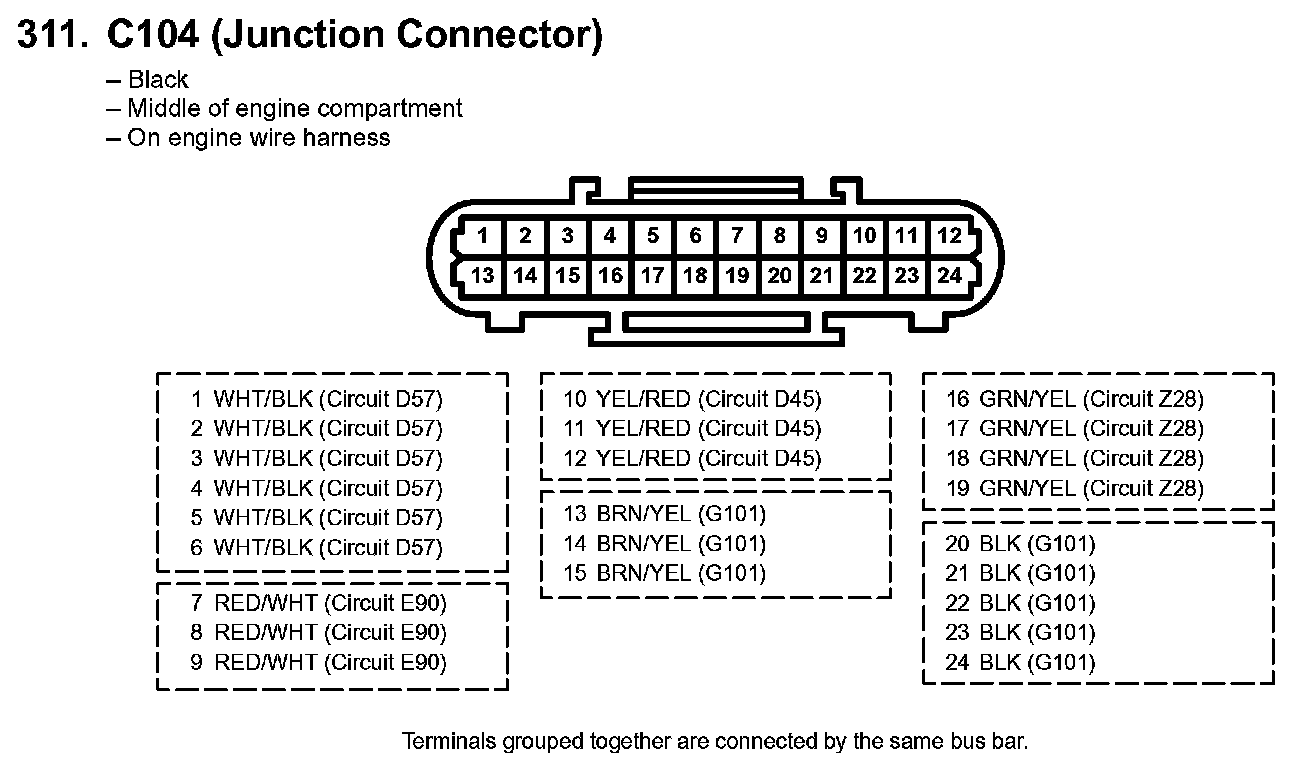

311. C104 (Junction Connector):
