System Diagram

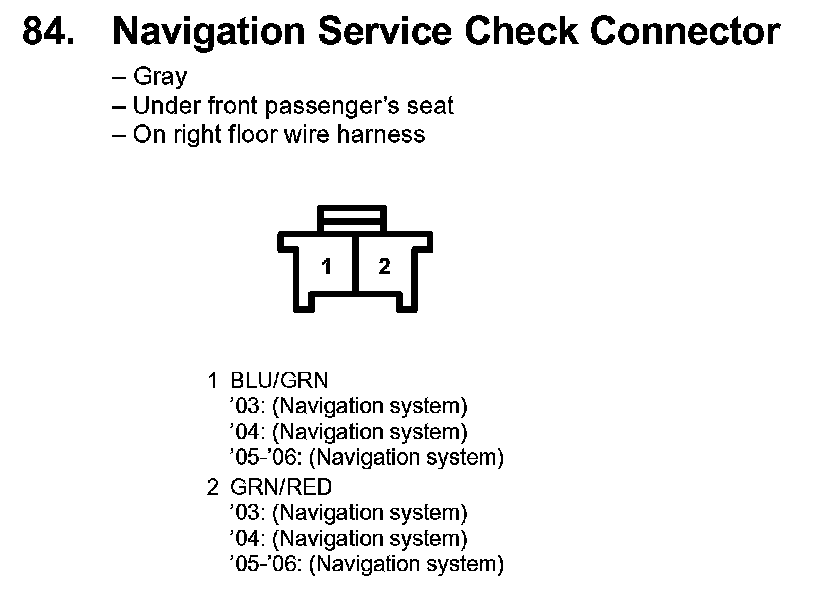

84. Navigation Service Check Connector:

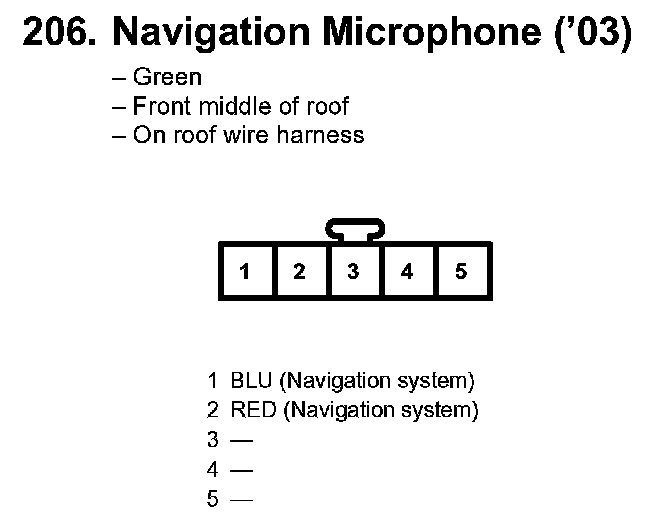

206. Navigation Microphone:

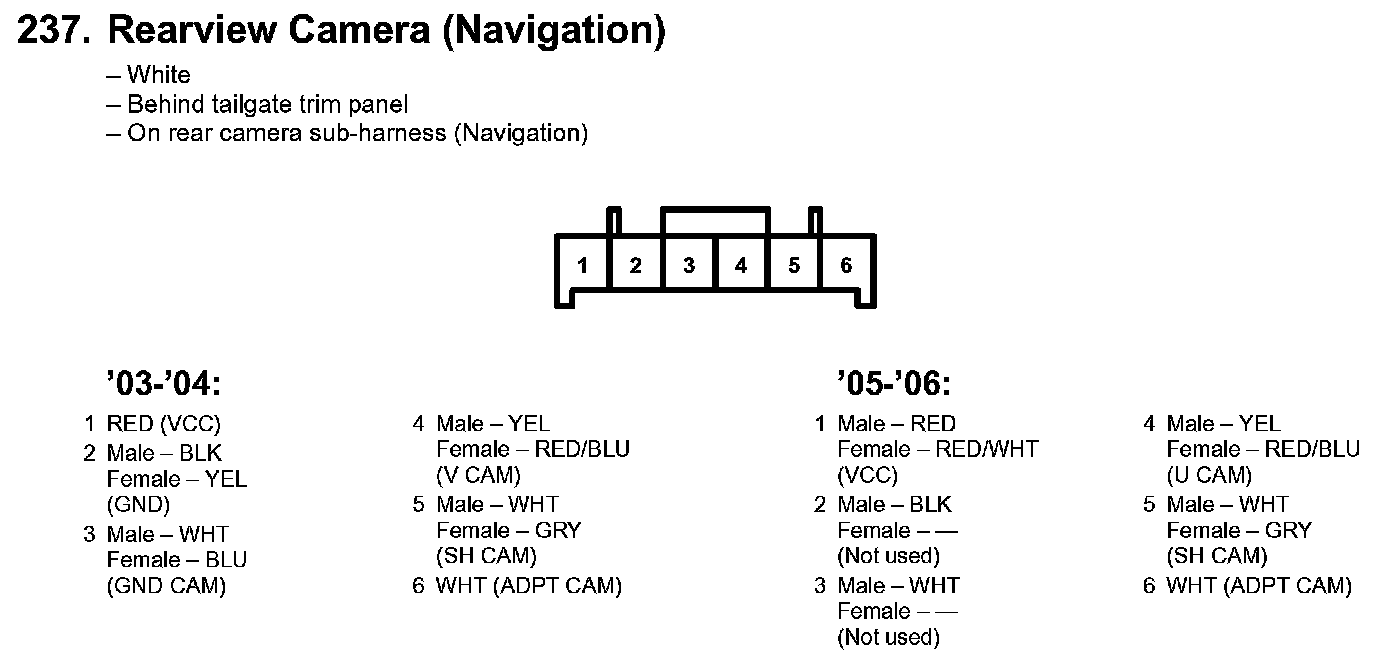

237. Rearview Camera (Navigation):

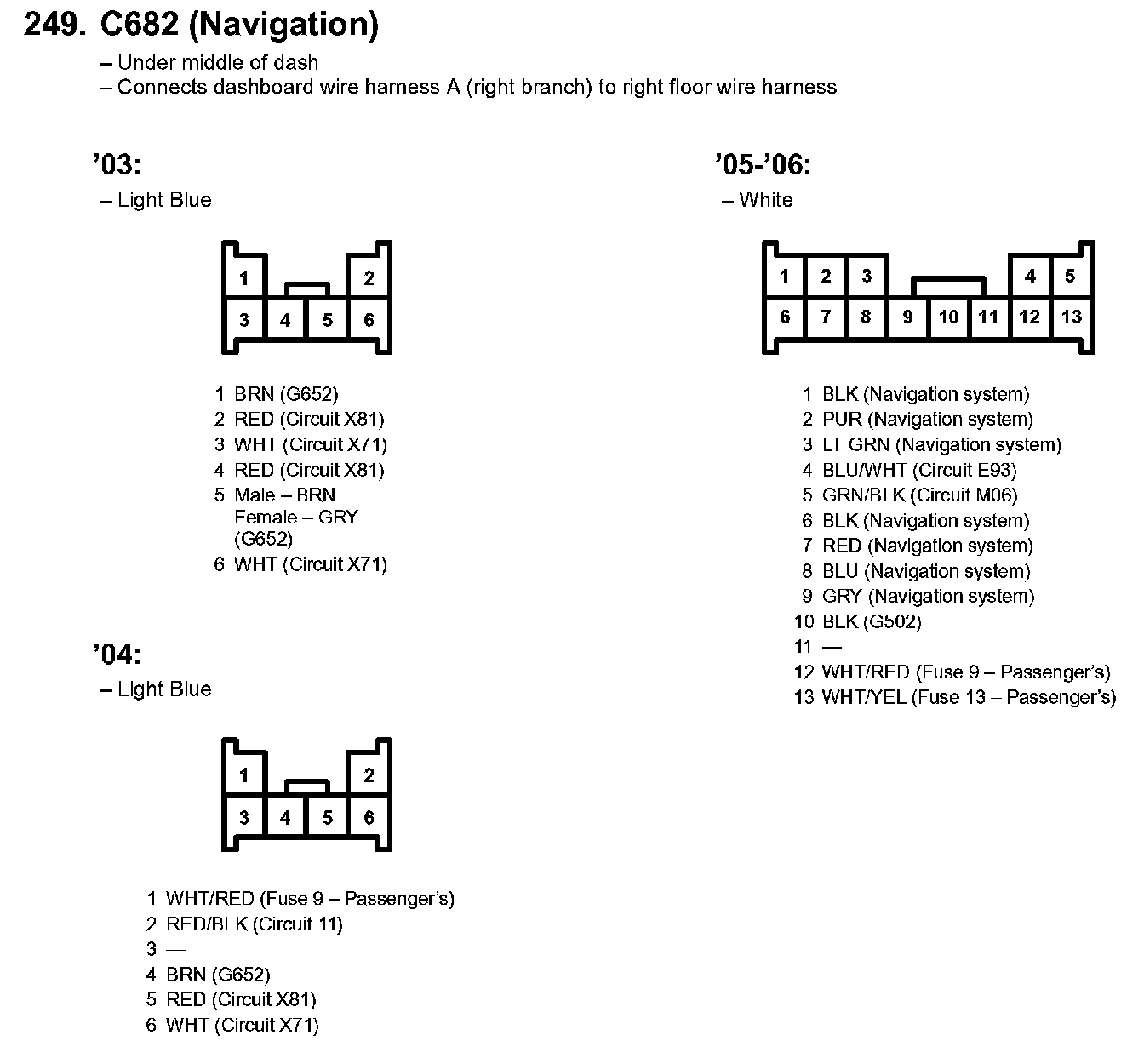

249. C682 (Navigation):

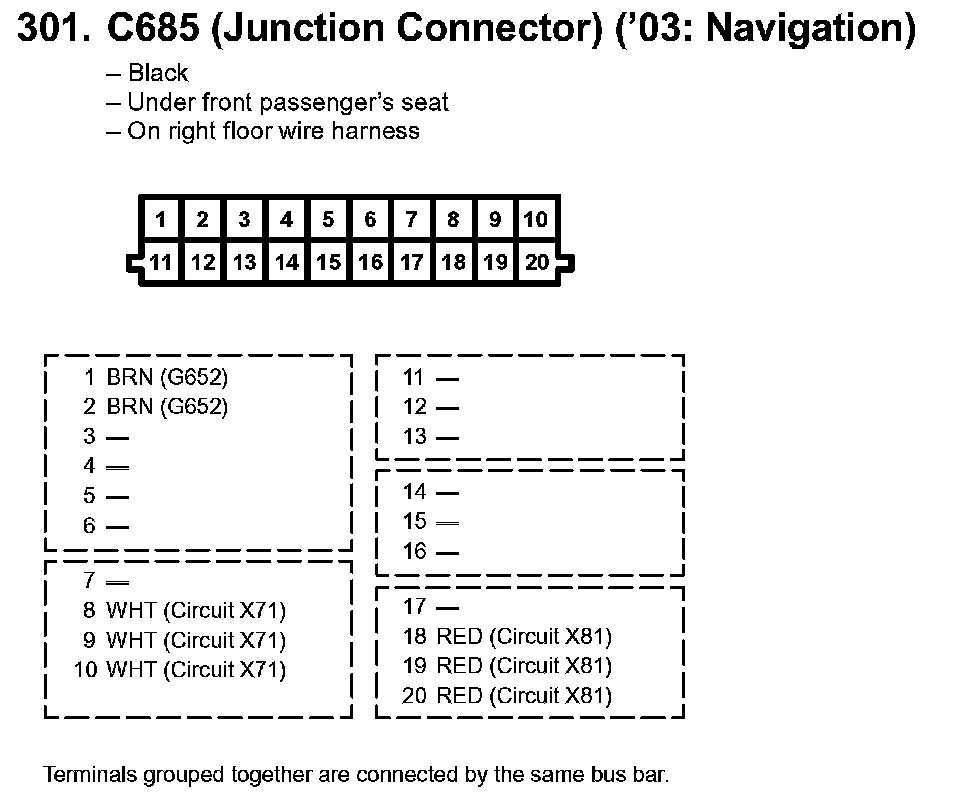

301. C685 (Junction Connector) ('03: Navigation):

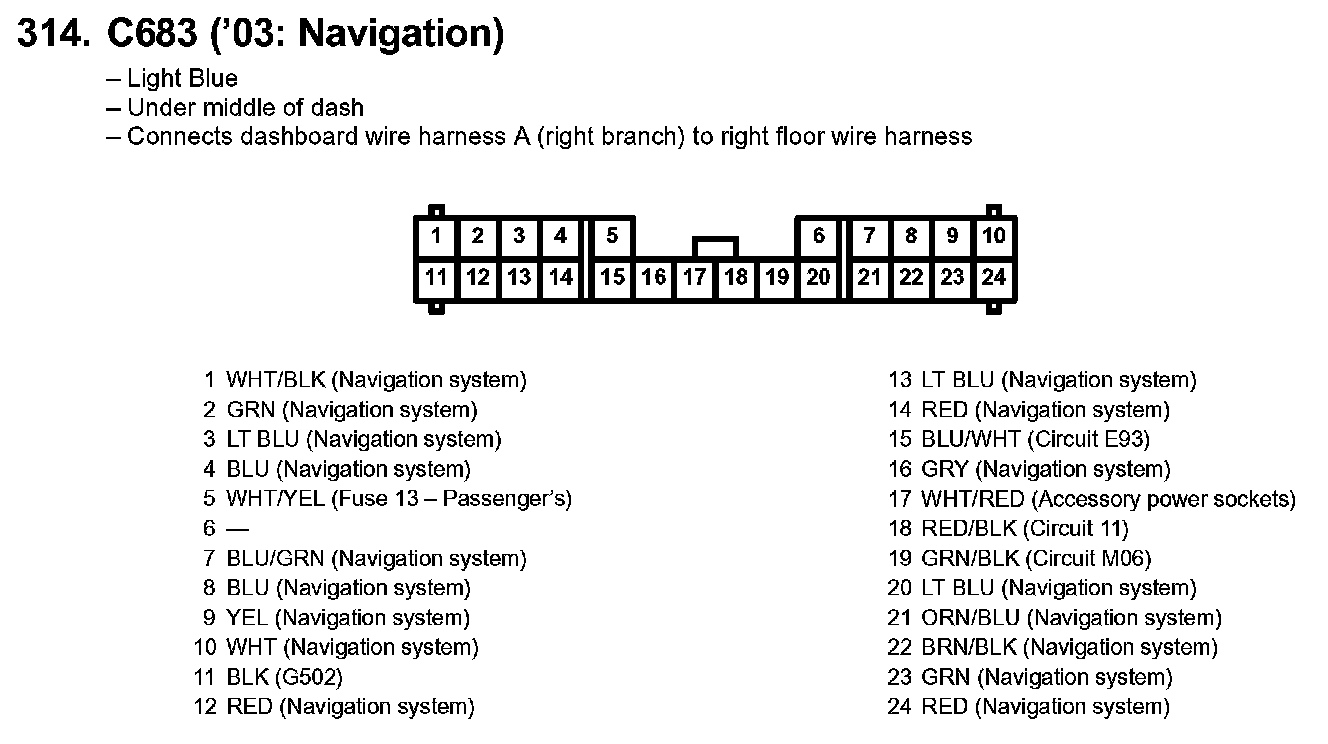

314. C683 ('03: Navigation):

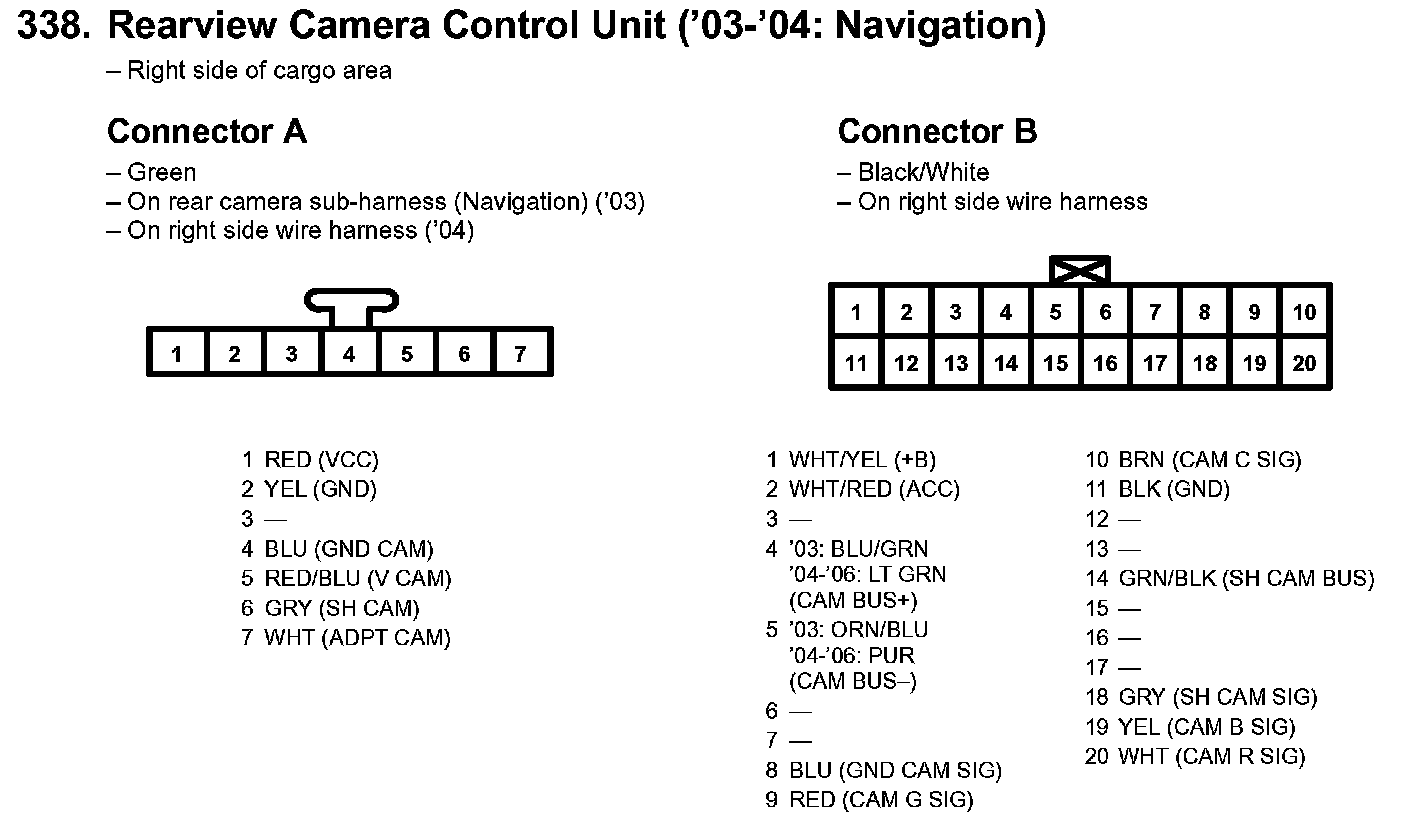

338. Rearview Camera Control Unit ('03-'04: Navigation):
